Arburg 221-75-350

Photo Gallery

Arburg - 221-75-350DE-INJ-ARB-1989-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg 221-75-350 Injection Moulding Machine For Sale

Show in original language

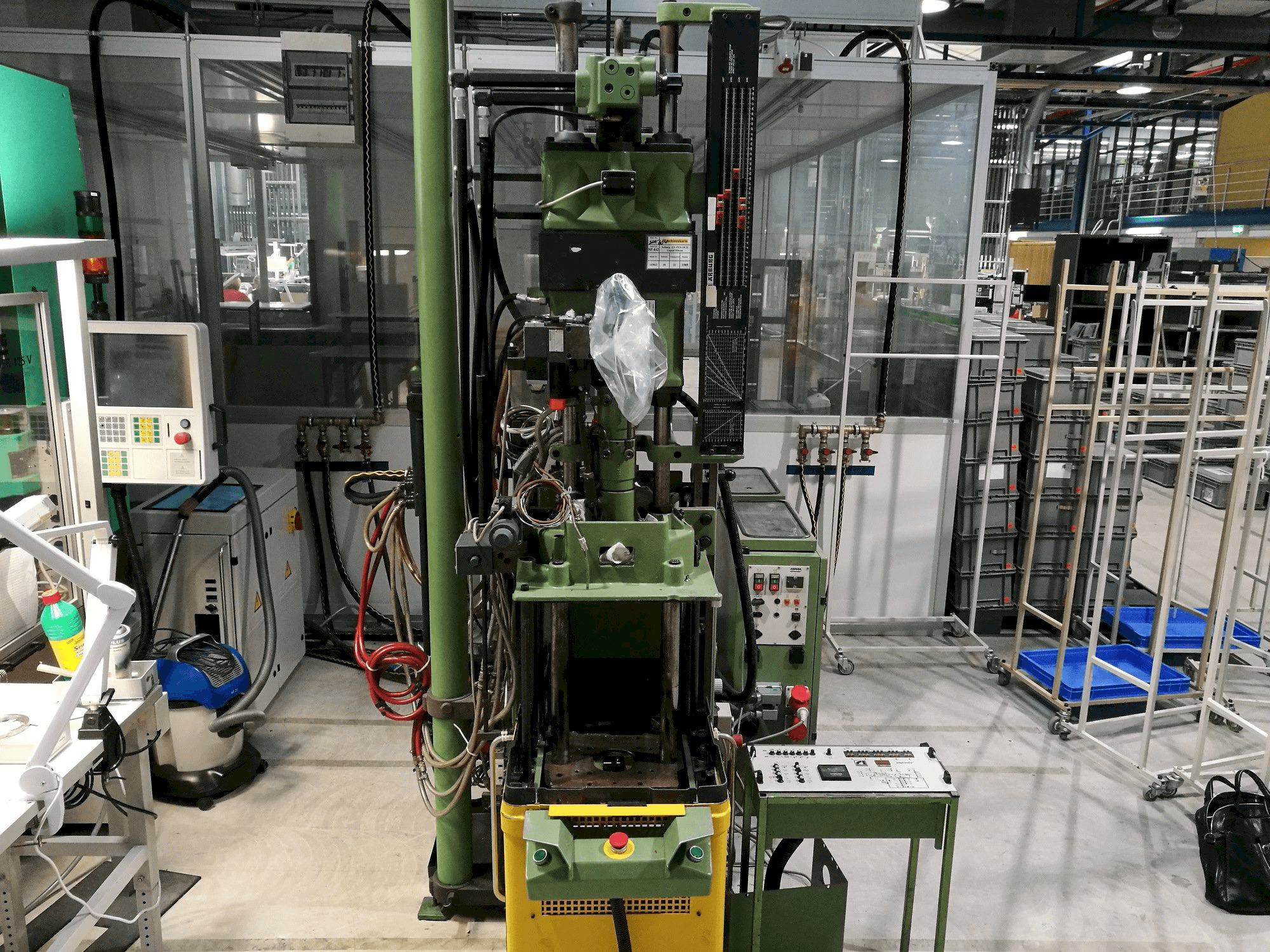

This Arburg 221-75-350 Injection Moulding Machine was made in 1989 in Germany. Equipped with an Arburg Polytronica Control unit, this machine can work with a clamping force of 350 kN.

Overview

brand: Arburg
year: 1989
MODEL: 221-75-350
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg 221-75-350

General Data

Measurements width: 2980 mm
Measurements depth: 1040 mm
Measurements height: 1500 mm
Machine weight: 970 kg

Control Unit

Model: Polytronica
CNC main language: German
Brand: ARBURG

Injection Unit

Screw diameter: 30 mm
Shot weight: 59 g/PS
Stroke volume: 70 CM³
Injection pressure: 1090 bar
Adjustable heating zones: 5

Clamping unit

Clamping force: 350 kN
Opening stroke: 200 mm
Distance between bars: 221 mm
Mould height max: 75 mm
Size of mold platens: 432x250 mm
Ejector stroke: 60 mm
Ejector force for / back: 27 kN

Additional equipment

- Dosing unit

Additional Information

Machine history

Material type: Silicon

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
