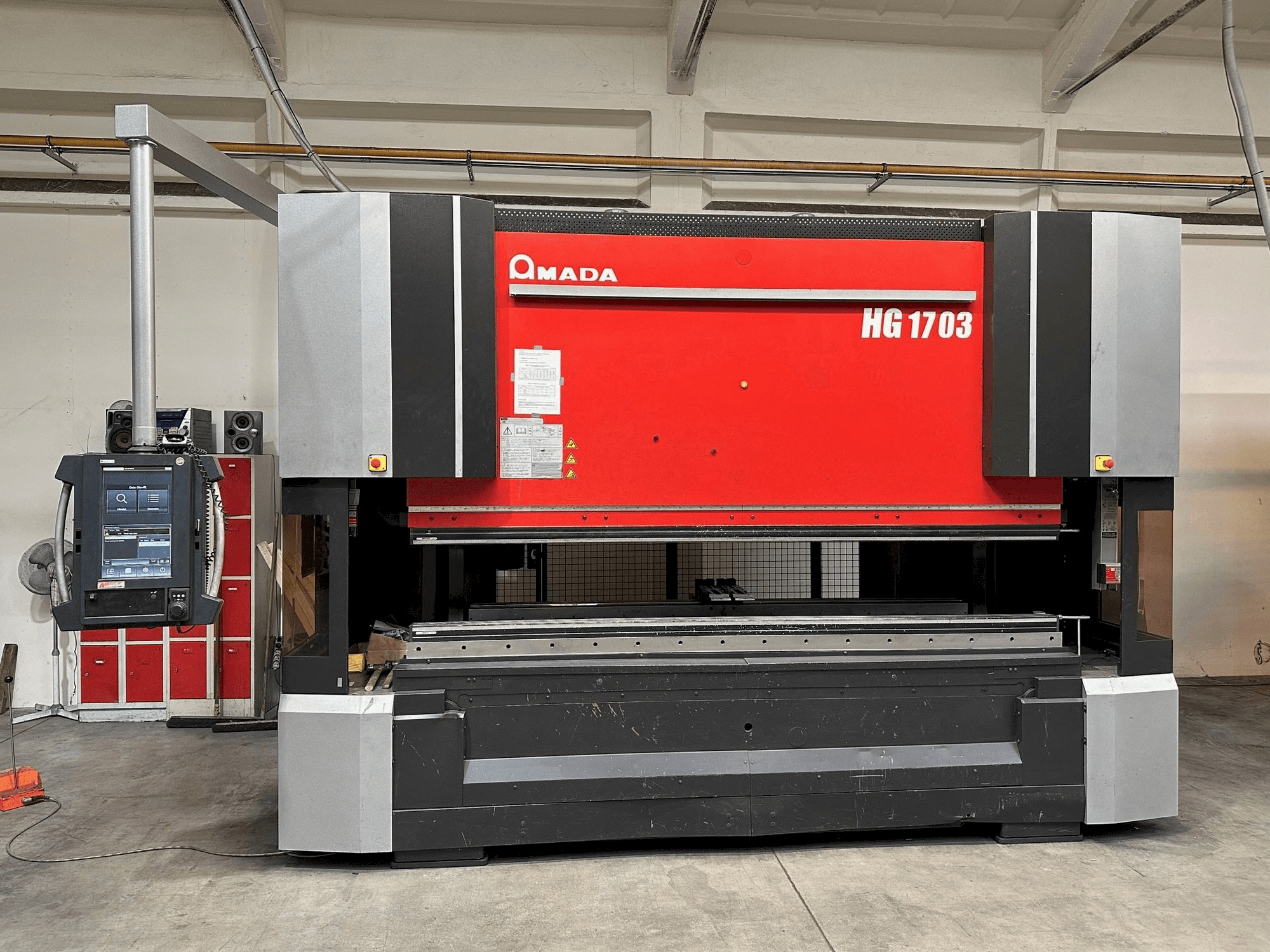

Amada HG-1703 Bending machine

Show in original language

This Amada HG-1703 Bending machine was manufactured in the year 2022 in France and has 6700 production hours. It is equipped with an AMADA AMNC3i control unit and has 10 axis. The machine has a pressing force of 1700 kN and bending length of 3110 mm.

Overview

brand: AMADA
year: 2022
MODEL: HG-1703
production hours: 6700
application type: Bending
Location: Czech Republic
machine type: Press Brake
control unit brand: AMADA

Technical Information - AMADA HG-1703

General Data

Measurements width: 4150 mm
Measurements depth: 2020 mm
Measurements height: 3165 mm
Machine weight: 15000 kg

Control Unit

Brand: AMADA
Model: AMNC3i

Main drive

Pressing force: 1700 kN
Bending length: 3110 mm
Number of axis: 10

Media

Power consumption: 26 kVa

Additional Information

Additional equipment

Electronic handwheel for interactive programming
Foot switch with panic-stop function
Digipro angle measuring system with infrared data transmission

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Approach speed (mm/sec) 220
Return speed (mm/sec) 250
5-axis backgauge
Throat depth 450 mm
Bending speed (mm/sec) 20
Safety device akas iii
Max. Stroke 250 mm
Wila clamping
10 controlled axes
Cnc crowning

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
