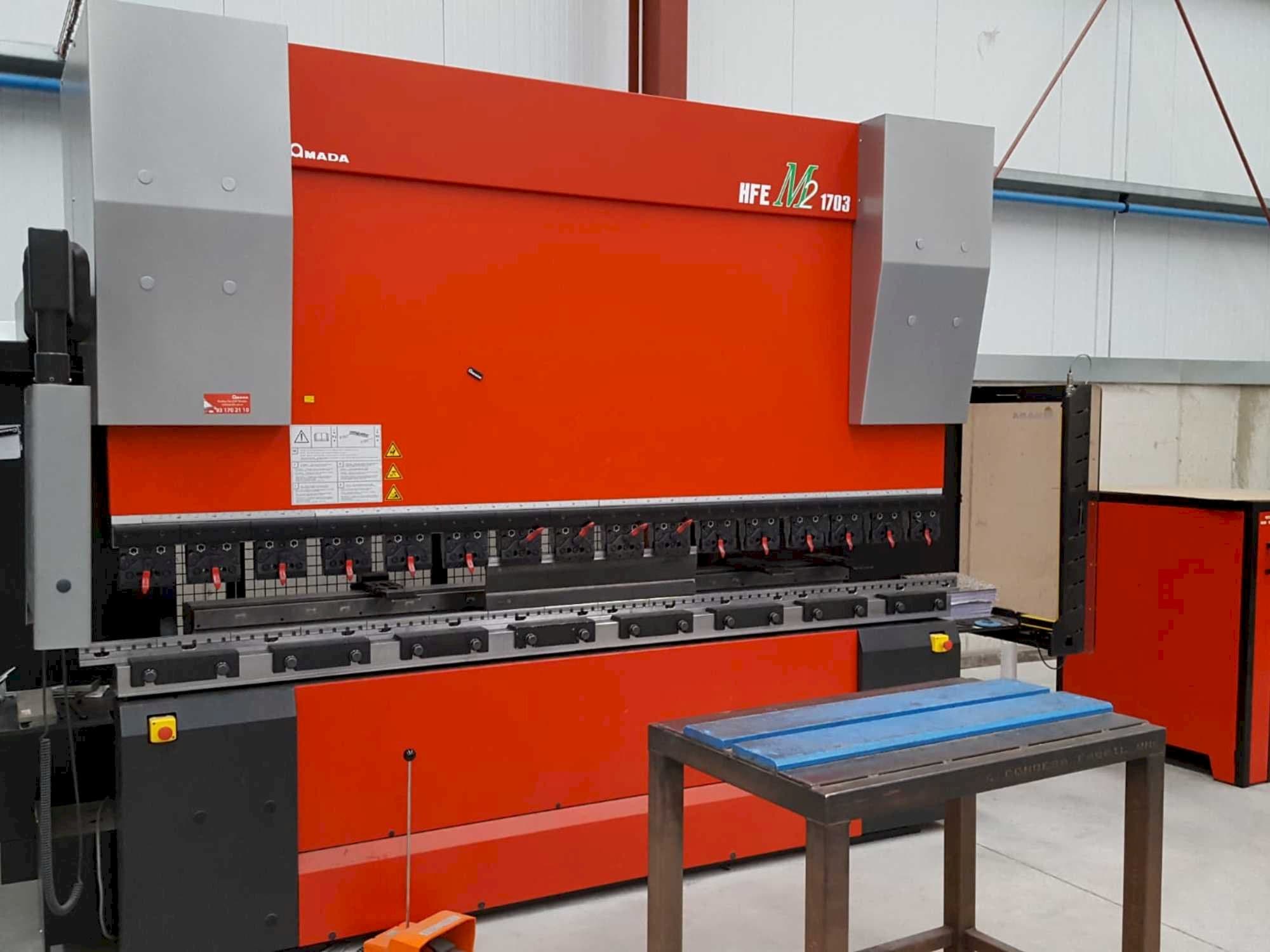

Front view of AMADA HFE M2-EVO 1703  machine

AMADA - HFE M2-EVO 1703ES-BEN-AMA-2017-00001


Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

Click to chat on WhatsApp
Show in original language

This Amada HFE M2-EVO 1703 Bending machine was manufactured in the year 2017 in France. It is equipped with an Amada control unit and has 4 axis. The machine has a pressing force of 1700 kN.


  • brand: AMADA
  • year: 2017
  • MODEL: HFE M2-EVO 1703
  • application type: Bending
  • Location: Spain
  • machine type: Bending machines
  • availability: Sold
  • control unit brand: AMADA

Technical Information - AMADA HFE M2-EVO 1703

General Data

  • Measurements width: 4565 mm
  • Measurements depth: 2680 mm
  • Measurements height: 2880 mm
  • Machine weight: 11600 kg

Control Unit

  • Brand: AMADA

Main drive

  • Pressing force: 1700 kN
  • Bending length: 3170 mm
  • Number of axis: 4


  • Outer width: 180 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Distance between uprights 2700 mm
      • - Gooseneck 420 mm
      • - Table opening 470 mm
      • - Stroke 200 mm
      • - Working height 960 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
