➤ Used AMADA HFE 80-25 L - Press For Sale | gindumac.com

Show in original language

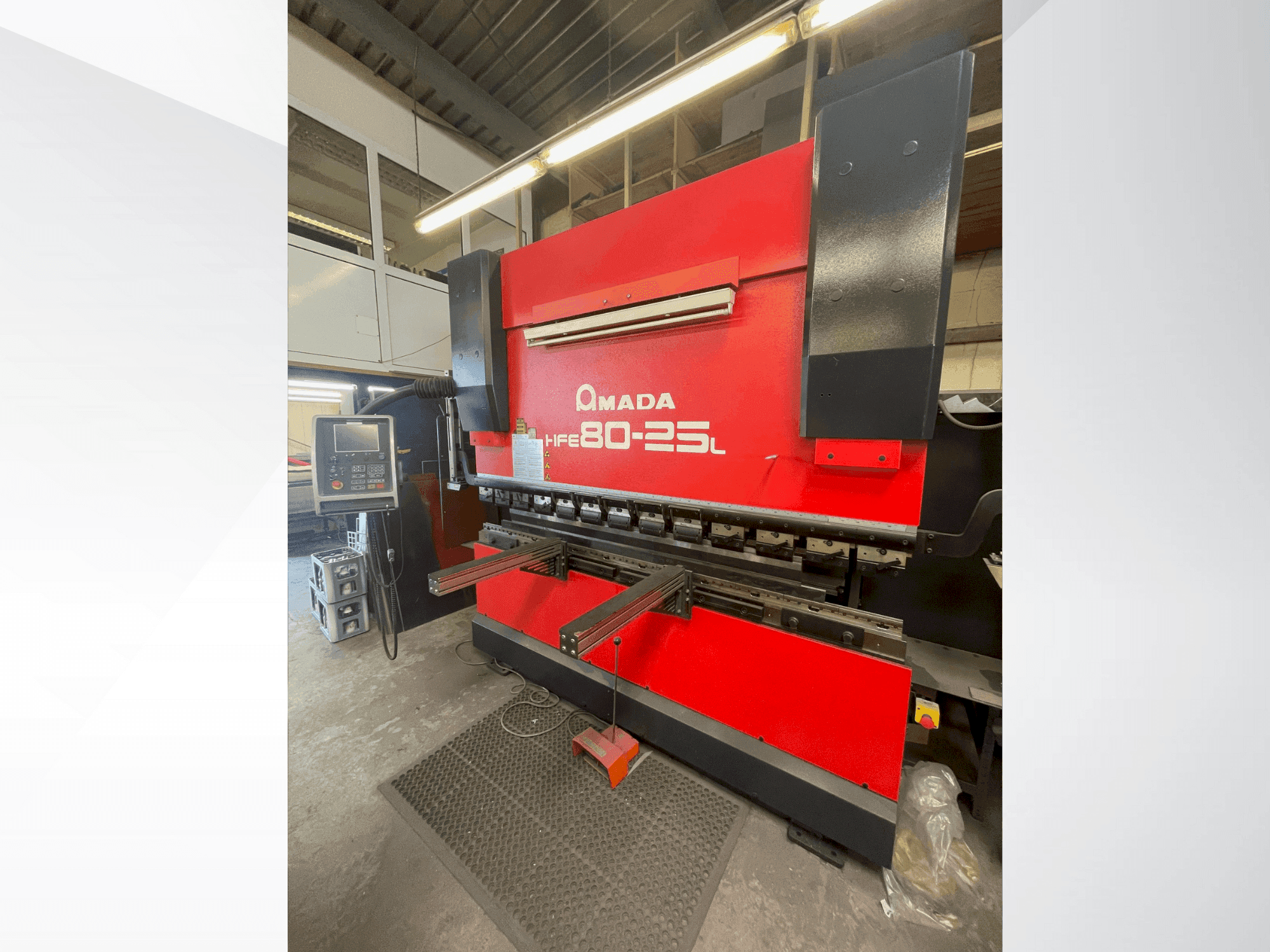

This 8-axis AMADA HFE 80-25 L press brake was manufactured in 2009. It features a nominal press force of 800 kN, a stroke of 320 mm, and a working speed range of 1-10 mm/s. The machine has a robust frame with a total weight of 6030 kg and dimensions that ensure stability and precision in operation. If you are looking to get high-quality bending capabilities, consider the AMADA HFE 80-25 L machine we have for sale. Contact us for more information.

Overview

brand: AMADA
year: 2009
MODEL: HFE 80-25 L
application type: Bending
Location: Germany
machine type: Press Brake

Technical Information - AMADA HFE 80-25 L

Dimensions

Machine Weight: 6030 kg

Movement

Number of Axes: 8

Additional Information

Machine Benefits

Technical Machine Benefits

Nominal total power: 9 kw
Mains voltage: 400 v/hz
Current peak: 90 a
Maximum pressure: 275 bar
Additional weight lighting: 250 kg
Additional weight akas: 70 kg
Programmable additional weight: 40 kg
Front flap weight: 220 kg
Additional weight biegelfäße: 660 kg
Additional weight biegelfäße + parking facility: 840 kg

Extra Information

Workpiece Nominal Press Force: 800 kN Smallest Adjustable Press Force: 70 kN Length of the Press Jaw: 2550 mm Length of the Working Plate: 2555 mm Passage Between Machine Stands: 2120 mm Stroke: 320 mm Extension: 350 mm Installation Height: 620 mm Width of the Working Table: 120 mm Height: 960 mm Infeed Speed: 1-100 mm/s Working Speed: 1-10 mm/s Return Speed: 1-100 mm/s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
