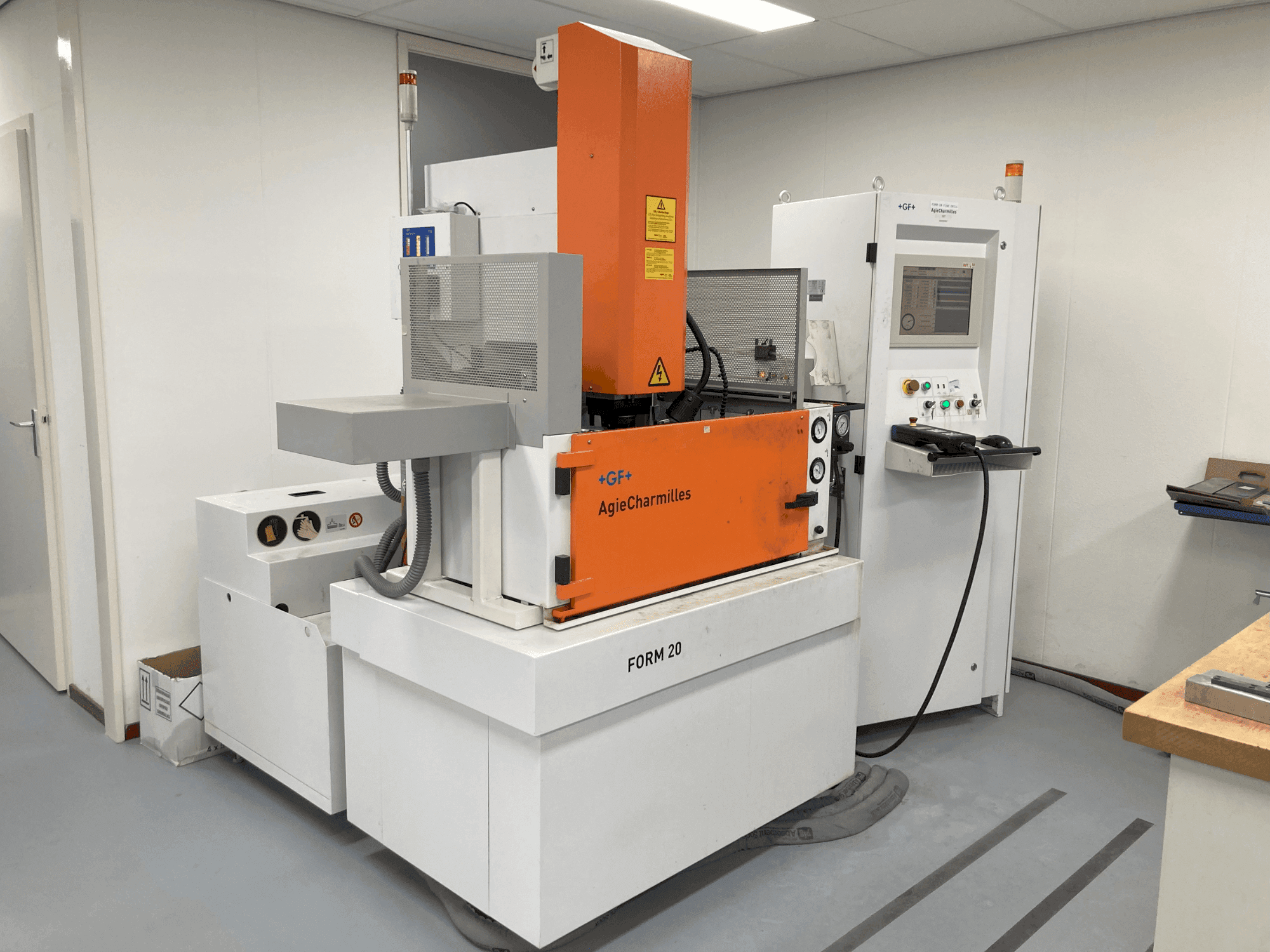

AgieCharmilles CABINET FORM20

Photo Gallery

AgieCharmilles - CABINET FORM20NL-EDM-AGI-2012-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used AgieCharmilles CABINET FORM20 | Die-Sinking EDM

Show in original language

This 3-axis AgieCharmilles CABINET FORM20 die-sinking EDM machine was manufactured in 2012. Ideal for precision mold making and tooling applications, it offers robust performance and reliability. If you are looking to get high-quality die-sinking capabilities, consider the AgieCharmilles CABINET FORM20 machine we have for sale. Contact us for more information.

Overview

brand: AgieCharmilles
year: 2012
MODEL: CABINET FORM20
application type: EDM
Location: Netherlands
machine type: Die-Sinking EDM Machine

Technical Information - AgieCharmilles CABINET FORM20

Dimensions

Machine Depth: 1300 mm
Machine Height: 2500 mm
Machine Weight: 1540 kg
Table Load: 400 kg

Movement

Number of Axes: 3
X-axis Travel: 350 mm
Y-axis Travel: 250 mm
Z-axis Travel: 250 mm

Additional Information

Additional equipment

Max. Electrode Weight: 80 kg

Machine Benefits

Technical Machine Benefits

Positioning resolution: 0. 125 µm
Useful surface: 630x400 mm
One holder for the electrode in the exchanger is broken; this is easy to replace with a new one.
High-pressure pump to use the machine for spark drilling small holes no longer works.

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
