➤ Used AccuteX AP 4030A - Wire EDM For Sale | gindumac.com

Show in original language

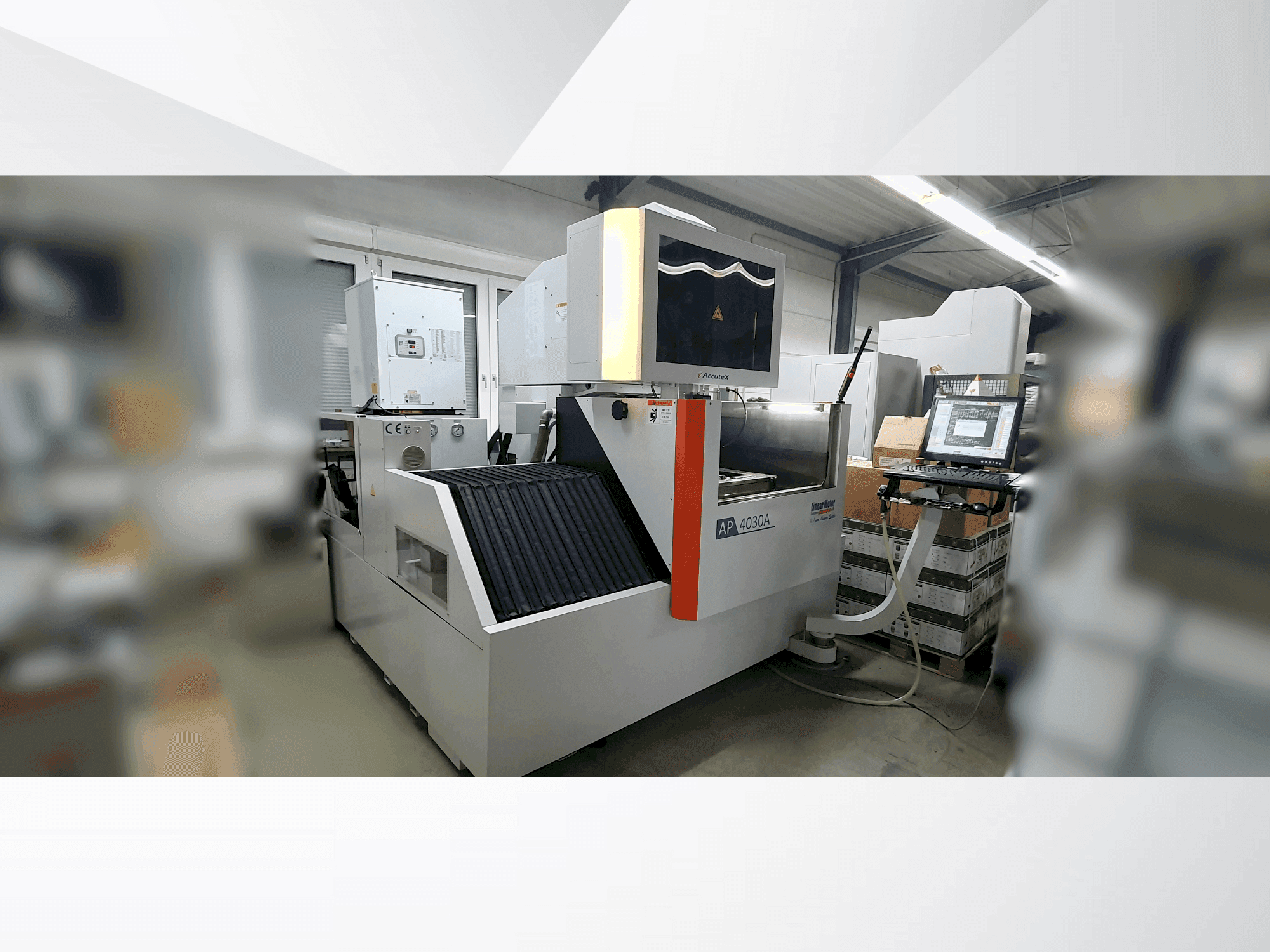

This 5-axis AccuteX AP 4030A wire EDM machine was manufactured in 2022, featuring a submerged design for enhanced precision and stability. It supports a maximum workpiece size of 800 x 560 x 245 mm and a weight up to 800 kg. Key features include AWT for reliable wire threading and a high-resolution 17” LCD-TFT screen for advanced control. Ideal for complex, high-accuracy tasks. Contact us for more information about this machine.

Overview

brand: AccuteX
year: 2022
MODEL: AP 4030A
application type: EDM
Location: Germany
machine type: Wire EDM Machine
availability: Immediately

Technical Information - AccuteX AP 4030A

General Data

Measurements width: 2600 MM
Measurements depth: 2150 MM
Measurements height: 2250 MM
Machine weight: 3200 KG

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 270 mm
V-Axis Movement: 160 mm
U-Axis Movement: 160 mm

Workpiece

Workpiece x: 800 mm
Workpiece y: 560 mm
Workpiece z: 245 mm
Workpiece weight: 800 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Wire diameter range: 0. 15–0. 3 mm (0. 05–0. 1 mm optional)
- - Optional 6th axis rotary table: fully submersible (ip68), with 720000 pulses/rev for ultra-high resolution
- - Tank capacity: 600 liters
- - Ion resin tank capacity: 10 liters
- - Display: 17” lcd-tft screen
- - Best surface roughness: ra 0. 35 μm
- - Cutting accuracy: ±2. 0 μm
- - Max cutting speed: 240 mm²/min
Qualitative Machine Benefits:
- - Separate axis design for reduced errors
- - Electric-drive safety lock and automatic lift for usability
- - Advanced wire control technologies for precise operations
- - Adaptive control systems and high-resolution processors for enhanced precision

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
