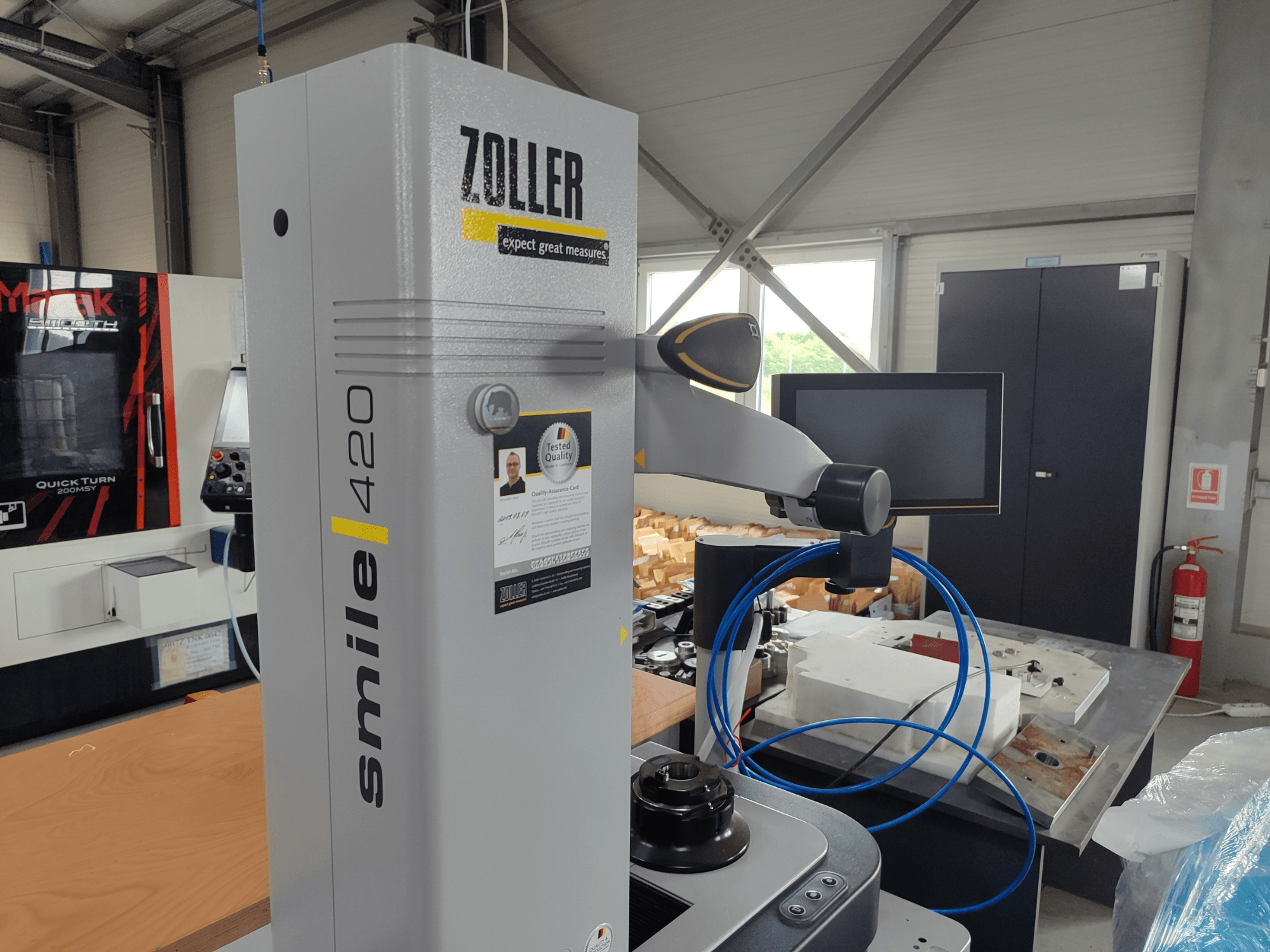

ZOLLER smile 420 measuring device with monitor, side view in a workshop, featuring blue hoses and machinery in the background.
ZOLLER smile 420 measuring device with monitor, side view in a workshop, featuring blue hoses and machinery in the background.

Zoller - SMILE PILOT 1,0RO-MEA-ZOL-2019-00001

Rs. 1,543,100
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Zoller SMILE PILOT 1,0 was manufactured in 2019. It features image processing technology Pilot 1.0, a Z-axis length of 400 mm, and a radius on the X-axis of 200 mm. The machine can handle diameters up to 400 mm and snap gauge diameters of 100 mm. Weighing 175 kg and standing 1620 mm tall, it requires a power input of 1000-2000 mA. Consider the opportunity to buy this Zoller SMILE PILOT 1,0 optical measurement machine. Contact us for more information.

Overview

  • brand: Zoller
  • year: 2019
  • MODEL: SMILE PILOT 1,0
  • application type: Measuring
  • Location: Romania
  • machine type: Optical Measurement Machine

Technical Information - Zoller SMILE PILOT 1,0

Additional Information

Additional information

  • Machine Weight: 175 kg

  • Dimensions of Machine (LxWxH): Provided height is 1620 mm

  • Measuring system: Image processing technology Pilot 1.0

  • Length Z-axis: 400 mm

  • Radius X-axis: 200 mm

  • Diameter D: Ø400 mm

  • Snap gauge D1: Ø100 mm

  • Concentricity: 2 µm

  • Setting accuracy: 2 µm

  • Display accuracy: 1 µm

  • Repeating accuracy: 2 µm

  • Compressed Air Required pressure: 4–6 bar, dry and slightly lubricated

  • Electrical Data (Pilot 1.0):

  • Voltage: 115–230 V

  • Frequency: 50/60 Hz ±2%

  • Power consumption: 230 VA

  • Power input: 1000–2000 mA

  • Fuse: F6A (slow)

  • Operating humidity: 10–95% (non-condensing)

  • Measurement humidity: 80% (non-condensing)

  • Noise level: <45 dBA during normal operation, up to 53 dBA with printer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
