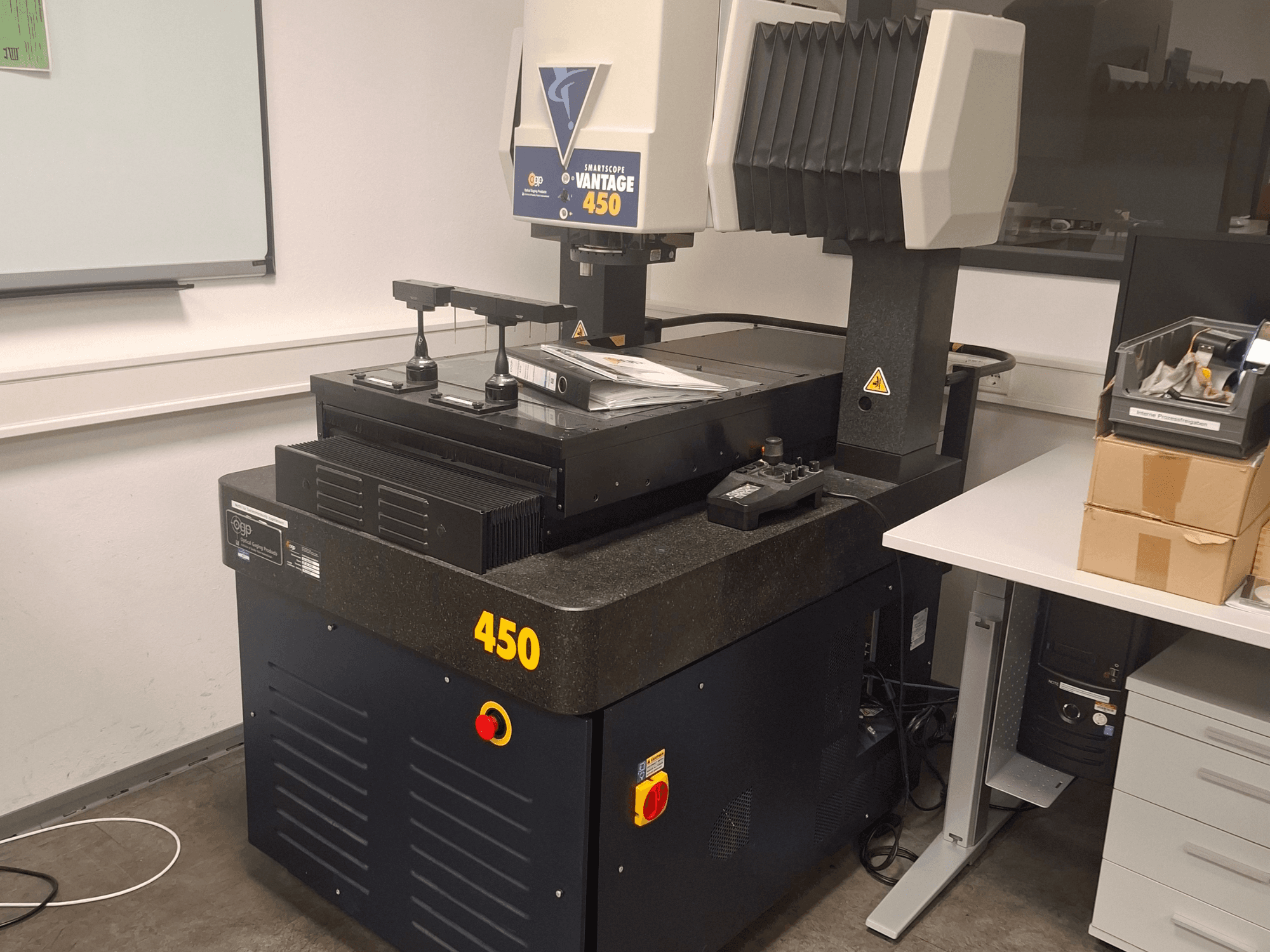

This 3-axis OGP SmartScope Vantage 450 was manufactured in 2016. It features a travel range of 450 x 450 x 250 mm and is equipped with a Renishaw SP25M Scanning Probe Kit and Telestar Plus TTL-Laser-Sensor. The machine includes a 24" LCD monitor and various accessories for enhanced functionality. If you are looking to get high-quality optical measurement capabilities, consider the OGP SmartScope Vantage 450 machine we have for sale. Contact us for further details.
Overview
- brand: OGP
- year: 2016
- MODEL: SmartScope Vantage 450
- application type: Measuring
- Location: Germany
- machine type: Optical Measurement Machine
- control unit brand:
Technical Information - OGP SmartScope Vantage 450
Movement
- Number of Axes: 3
Additional Information
Travel (X/Y/Z): 450 x 450 x 250 mm
Software: MeasureMind 3D Multisensor; ZONE3 (CAD-based)
Probing system: Renishaw SP25M scanning probe kit
Sensor: Telestar Plus TTL laser sensor
Power: 230 VAC, 50/60 Hz, 4.0 A
Operating system: Windows 7 (eligible for Windows 10 upgrade)
Additional equipment
24" LCD monitors (x4)
Scanning probe adapter
Sonic SD electronics
Kinematics for probe changer rack
Laser calibration artifact
Offline PC (ZONE3)
Standard desk (1000 x 800 x 750 mm)
Dust cover
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
