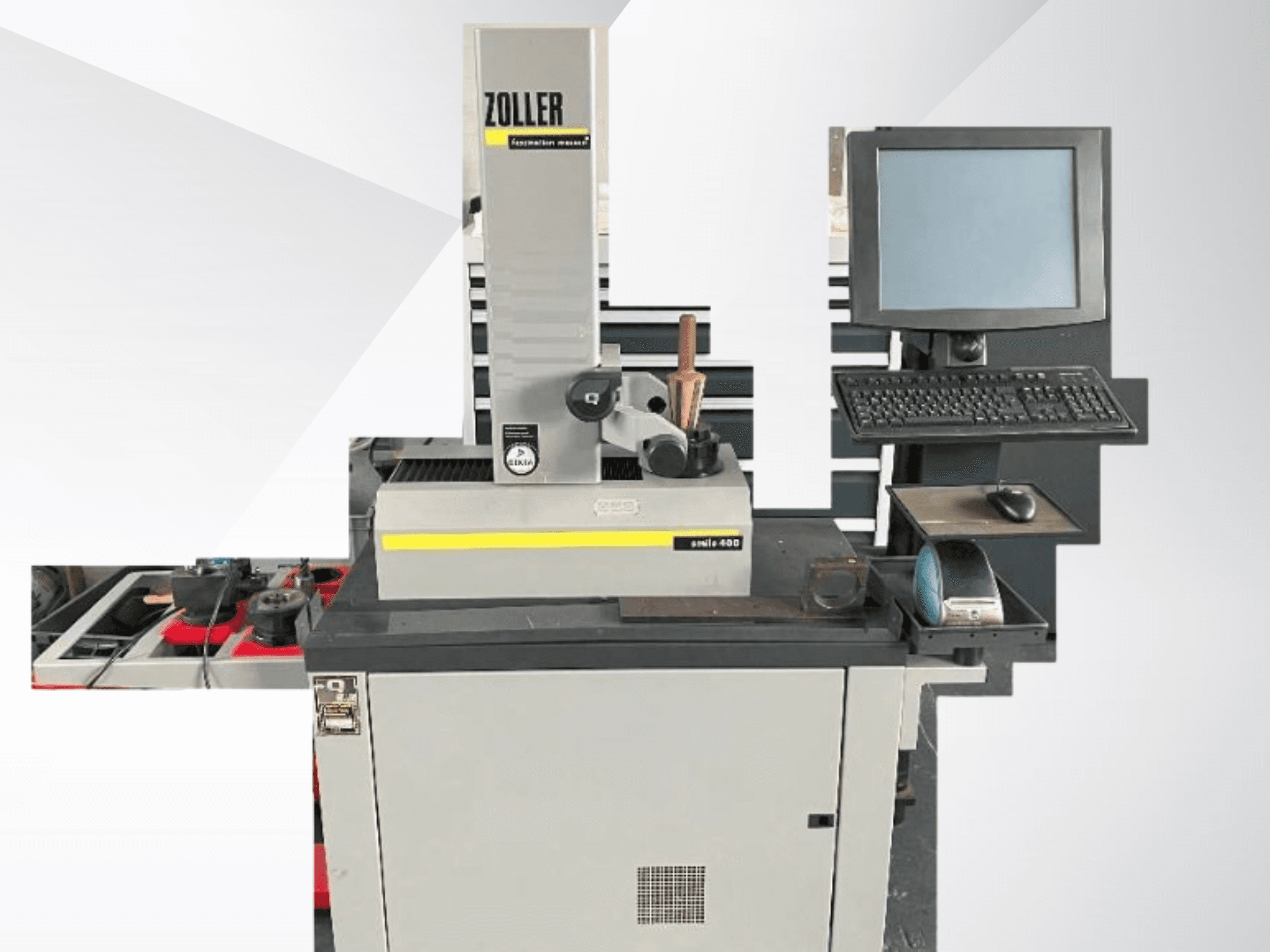

This 3s Zoller SMC 4/4-00060 was manufactured in 2010. It features a measuring range of 215 mm on the X-axis and 415 mm on the Z-axis, making it suitable for high-precision applications. With a high-precision spindle SK-50 and additional features like a spindle brake and 4 x 90° spindle locks, consider the opportunity to buy this Zoller SMC 4/4-00060 optical measurement machine. Contact us for further details.
Overview
- brand: Zoller
- year: 2010
- MODEL: SMC 4/4-00060
- application type: Measuring
- Location: Austria
- machine type: Optical Measurement Machine
Technical Information - Zoller SMC 4/4-00060
Dimensions
- Machine Height: 1800 mm
- Machine Length: 800 mm
- Machine Weight: 200 kg
- Table Width: 1500 mm
Movement
- Number of Axes: 3
Additional Information
Measuring range X-axis: 215 mm
Measuring range Y-axis: 0 mm
Measuring range Z-axis: 415 mm
Voltage: 230 V
High-precision spindle: SK-50
Runout accuracy: 0.002 mm
Spindle brake
4 × 90° spindle locks
Additional equipment
Adapter SK-50 / HSK-A63
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
