- ➤ Used NIKON V-12BDC For Sale | gindumac.com

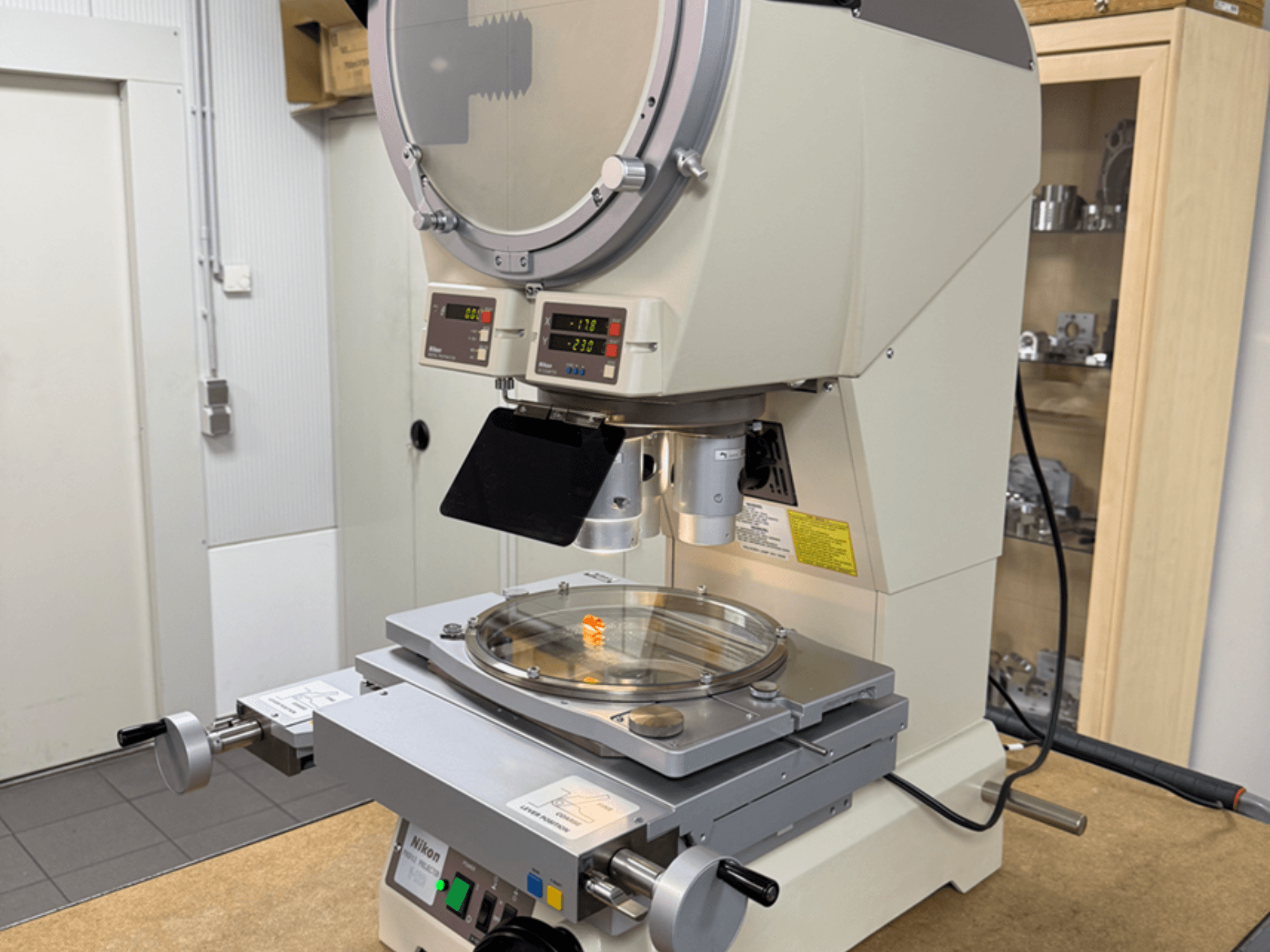

This Nikon V-12BDC was manufactured in 2019. It features a 305 mm screen diameter, a measuring stage of 250 × 150 mm, and integrated XY and angle digital displays for precise measurements. The machine includes a 3-position objective turret for quick magnification changes and high-quality halogen illumination for clear imaging. Ideal for production control and precision mechanics. Contact us for more information about this machine.
Overview
- brand: NIKON
- year: 2019
- MODEL: V-12BDC
- application type: Measuring
- Location: Germany
- machine type: Optical Measurement Machine
Additional Information
Laterally correct image (no reflection) for easy evaluation
3-position objective turret for quick magnification selection
Magnifications: 10×, 20×, 50×, 100×
Screen diameter: 305 mm
Measuring stage travel: 250 × 150 mm (8" × 6"); rotary stage type 2
Maximum workpiece height: 100 mm
Integrated XY and angle digital display for precise readings
Illumination: combination of contour (transmitted) and vertical (incident) light
Light source: 24 V / 150 W halogen for high-quality projection
4-fold condenser in transmitted light with automatic illumination adjustment to magnification
Optics: semi-transparent mirror for clear incident-light image; telecentric lenses for distortion-free imaging across the full field
Focusing via movable optical head (stage remains stable to avoid measurement deviations)
Measurement accuracy: contour illumination ±0.1%; inclination/area illumination ±0.15%
Solid construction with precision-engineered guides; workshop-ready and easy to operate
Proven Nikon quality, made in Japan
Large projection area suitable for medium-sized and complex workpieces
Quick magnification changes via turret
Ideal for production control, toolmaking, precision mechanics, and sample inspection
Flexibly upgradeable with digital interfaces or SPC connectivity
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
