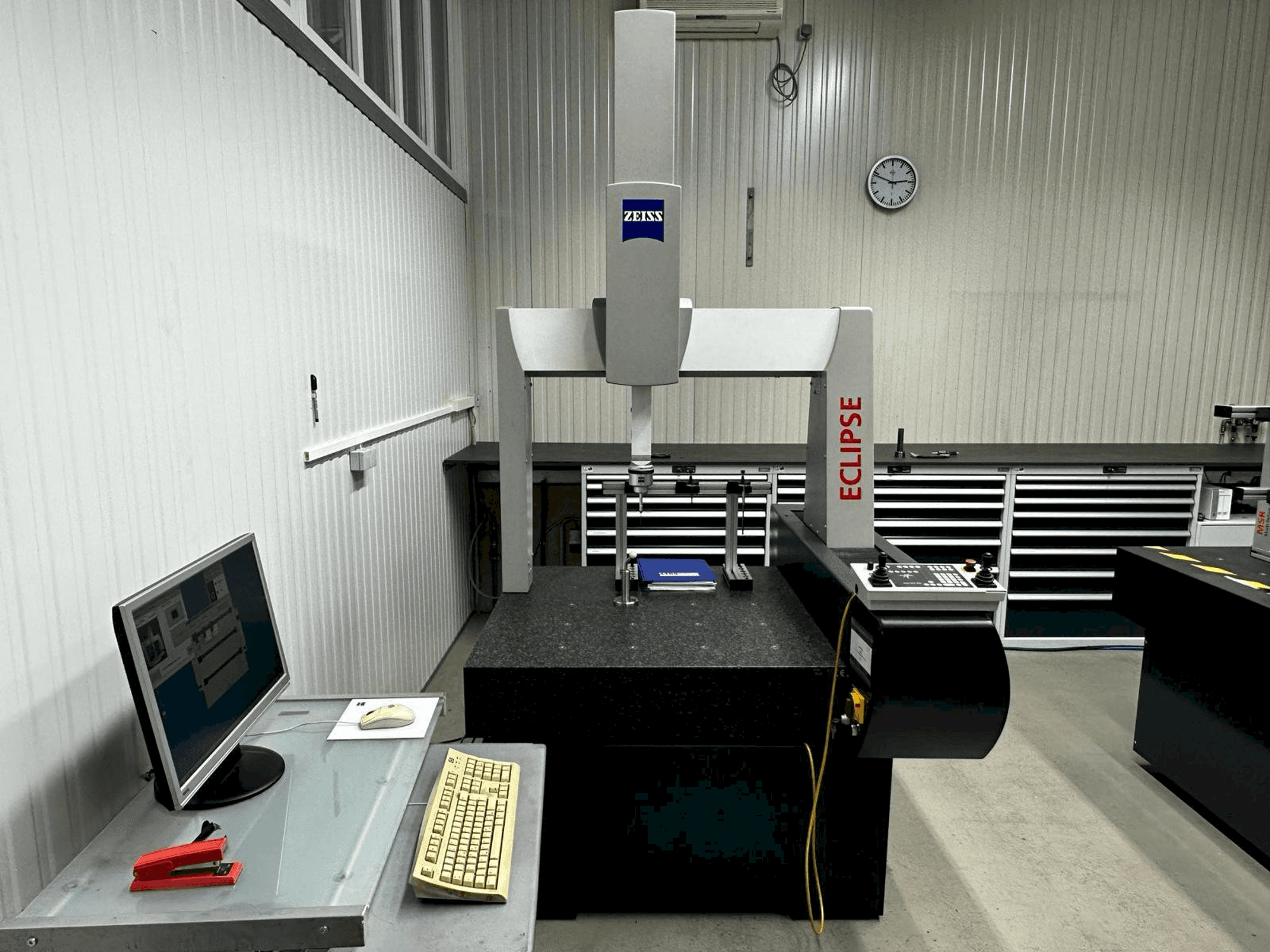

Front view of ZEISS Eclipse CNC 07/07/06  machine

ZEISS Eclipse CNC 07/07/06

ZEISS - Eclipse CNC 07/07/06

2002

Rs. 1,445,400
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Zeiss Eclipse CNC 07/07/06 Measuring machine was made in 2002 in Germany. It is equipped with a ZEISS U-SOFT Plus, Version 9.05, control.

Overview

  • brand: ZEISS
  • year: 2002
  • MODEL: Eclipse CNC 07/07/06
  • application type: Measuring
  • Location: Germany
  • machine type: Measuring Machine
  • availability: Immediately
  • control unit brand: ZEISS
  • GINDUMAC ID: DE-MEA-ZEI-2002-00002

Technical Information

Control Unit

  • Brand: ZEISS
  • Model: U-SOFT Plus
  • Release: 9.05

Movement

  • X-AXIS Movement: 700 mm
  • Y-AXIS Movement: 700 mm
  • Z-AXIS Movement: 580 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Measuring range: x=700mm, y=700mm, z- 580mm
      • - Measuring uncertainty according to vdinde 2617: u1-(2. 4+l/250)um,u3- (2. 9+l/250)um,v2-2. 2um length measuring uncertainty according to iso 10360-2: e -(2. 9 +l/250) um, r3 - 3. 3um
      • - Device features
      • - Gantry measuring device in ceramic technology
      • - Integrated vibration damping
      • - Microcomputer control
      • - Reference stylus - incl. Basic software package
      • - Acceptance documents
      • - Operating instructions sensor technology determination standard ball
      • - Kd = 52 mm
    • Qualitative Machine Benefits:
      • - Max. Form and dimensional deviation: 0. 0004 mm
      • - Probe change magazine 3/280/600 st 3 positions,
      • - H=280 mm, l-600 m torque, max. 0. 5 nm repeat accuracy of position #1" duration for 90° rotation <3s repeat accuracy for probe #1" change
      • - Ceramic

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
