➤ Used Zayer ZF 2000 - Gantry Mill For Sale | gindumac.com

Show in original language

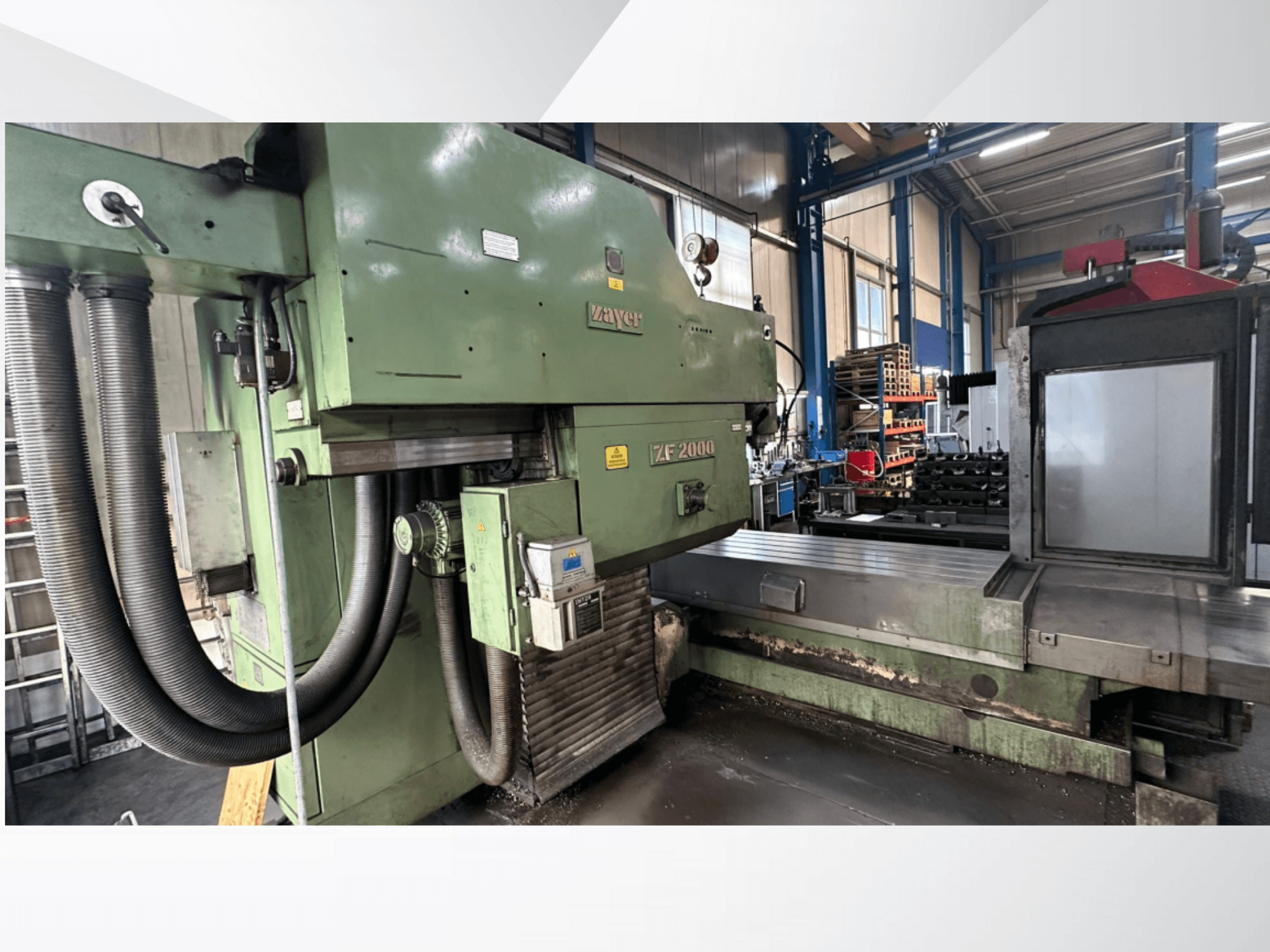

This 3-axis Zayer ZF 2000 gantry milling machine was manufactured in 1994. It features a robust table clamping surface of 2000 × 800 mm, with longitudinal, transverse, and vertical travels of 1703 mm, 803 mm, and 863 mm respectively. It supports a maximum table load of 6000 kg and offers rapid traverse rates up to 15,000 mm/min. If you are looking to get high-quality milling capabilities, consider the Zayer ZF 2000 machine we have for sale. Contact us for more information.

Overview

brand: Zayer
year: 1994
MODEL: ZF 2000
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
control unit brand: HEIDENHAIN

Technical Information - Zayer ZF 2000

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC415

Dimensions

Machine Weight: 12000 kg

Additional Information

Table clamping surface: 2000 × 800 mm
Maximum permissible table load: 6000 kg
Mounting T-slots: 5
T-slot spacing: 140 mm
T-slot width: 22 mm
Longitudinal travel: 1703 mm
Transverse travel: 803 mm
Vertical travel: 863 mm
Rapid traverse – longitudinal: 15000 mm/min
Rapid traverse – transverse: 15000 mm/min
Rapid traverse – vertical: 15000 mm/min
Positioning accuracy: ± 0.010 mm
Repeatability: ± 0.005 mm
Spindle speeds: Min 25 rpm / Max 3000 rpm
Tool holder: 150 ISO DIN 69871
Tool drawbar: ZAYER 190.008.00
Feed rates: 6 / 5000 mm/min
Maximum distance between table clamping surface and main spindle nose: 794 mm
Maximum distance from the rear of the table to the main spindle in horizontal position: 180 mm
Range 1: Constant torque 61 mKp 35-350 rpm; Constant power 22 kW 350-1000 rpm
Range 2: Constant torque 1001-1295 rpm; Constant power 22 kW 1295-3000 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
