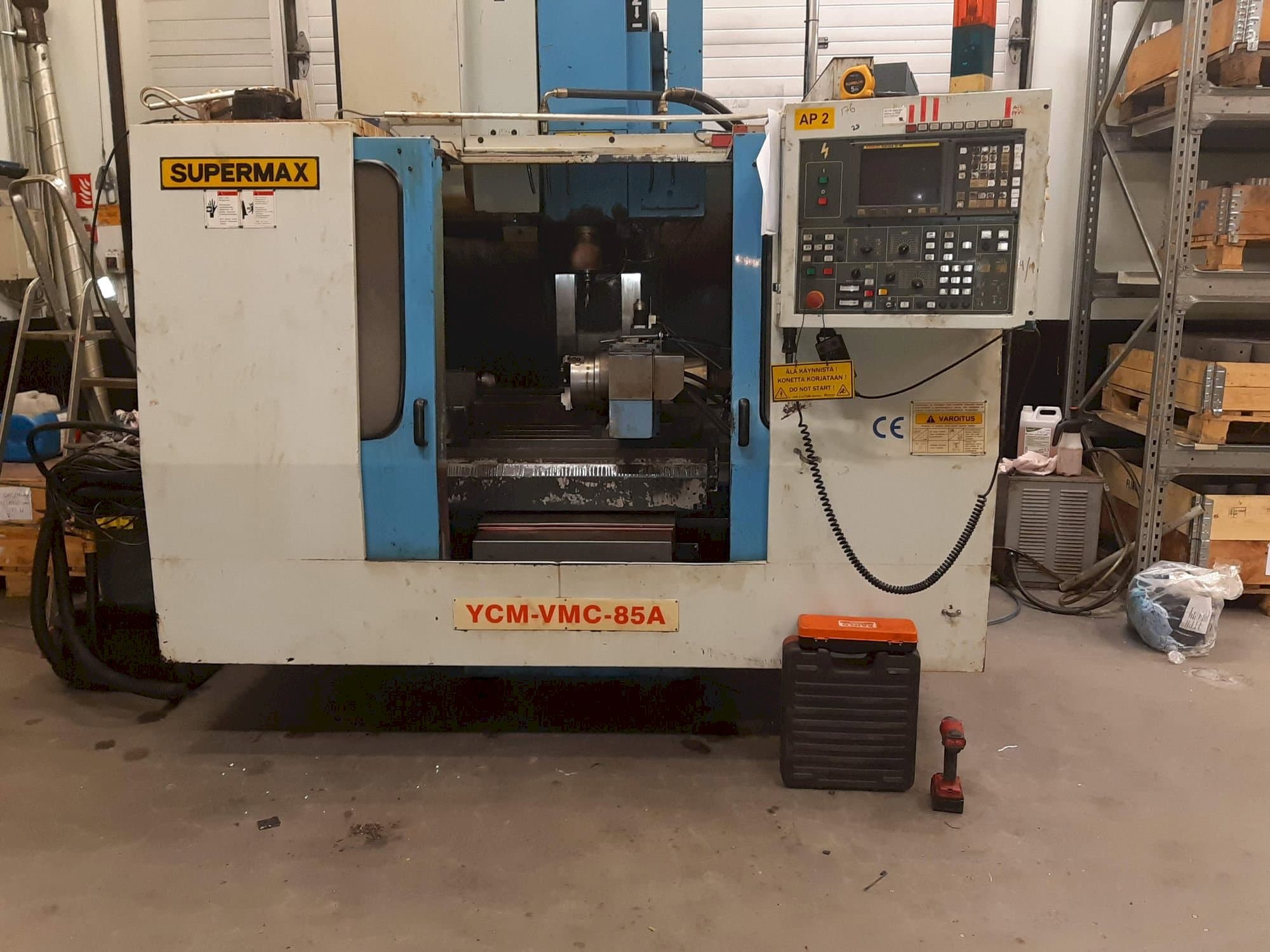

Front view of YCM 85A machine
Front view of YCM 85A machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

YCM - 85AFI-MIL-YCM-1997-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This YCM 85A Vertical Machining Center was built in Taiwan in the year 1997. It is equipped with a Fanuc Series O-M control unit. It can operate with a spindle speed up to 6000 rpm.

Overview

  • brand: YCM
  • year: 1997
  • MODEL: 85A
  • application type: Milling
  • Location: Finland
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - YCM 85A

Control Unit

  • Model: Series O-M
  • Brand: FANUC

Main drive

  • Number of spindles: 1
  • Spindle speed range: 6000 1/MIN

Movement

  • X-AXIS Movement: 860 mm
  • Y-AXIS Movement: 460 mm
  • Z-AXIS Movement: 630 mm

Table

  • Outer length: 950 mm
  • Outer width: 400 mm

Tools

  • Slots in storage: 24
  • Type of tool holder: BT40

Media

  • Main electronic connection: 380 V - 50Hz

    Additional equipment

    • - 4th axis

    Additional Information

      Machine history

      • End product: Machine has been used for general machining of steel parts

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
