Kitamura - Mycenter-4XT FI-MIL-KIT-2015-00001

Rs. 10,327,621
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

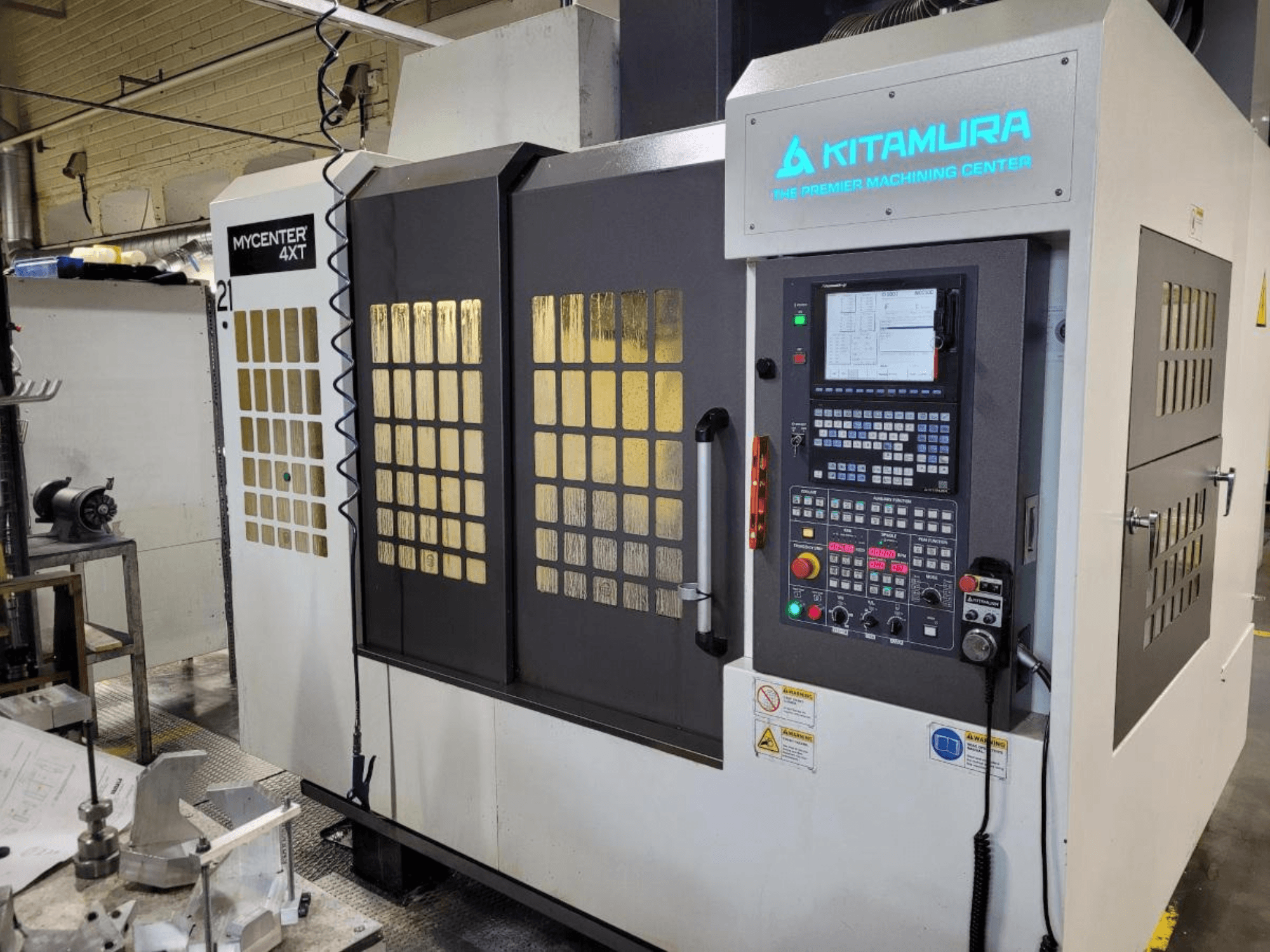

This 5-axis Kitamura Mycenter-4XT was manufactured in 2014. It features an X-axis travel of 800 mm, Y-axis travel of 610 mm, and Z-axis travel of 510 mm. The machine includes a spindle speed of 15,000 rpm and a tool magazine capacity of 30 positions. If you are looking to get high-quality machining capabilities, consider the Kitamura Mycenter-4XT vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Kitamura
  • year: 2015
  • MODEL: Mycenter-4XT
  • application type: Milling
  • Location: Finland
  • machine type: Vertical Machining Centre

Technical Information - Kitamura Mycenter-4XT

Dimensions

  • Machine Height: 3023 mm
  • Machine Length: 3040 mm
  • Machine Weight: 6864 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 800 mm
  • Y-axis Travel: 610 mm
  • Z-axis Travel: 510 mm

Technical Specification

  • Max. Tool Weight: 8 kg
  • Spindle Speed: 15000 RPM
  • Taper Size: BT 40

Additional Information

  • Control unit: Mitsubishi Arumatik (Fanuc compatible)

  • Availability: Immediately available

  • Z-axis travel: 510 mm

  • Table diameter: 400 mm

  • Spindle hours: approx. 11,000 h

  • Max. tool length: 300 mm

  • Tool change time: 2 s

  • Power supply: 58 kVA

Additional equipment

  • 5th axis with 400 mm rotary table

  • 2-speed ZF gearbox on spindle

  • Through-spindle coolant (low pressure), high-pressure ready

  • 3D probe

  • Tool measurement system

  • Chip conveyor (screw + lifting type)

  • Approx. 30 tool holders included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Alessandro Martini

Alessandro Martini is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
