FAMUP - MCX 600 DE-MIL-FAM-1997-00002

Rs. 776,483
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

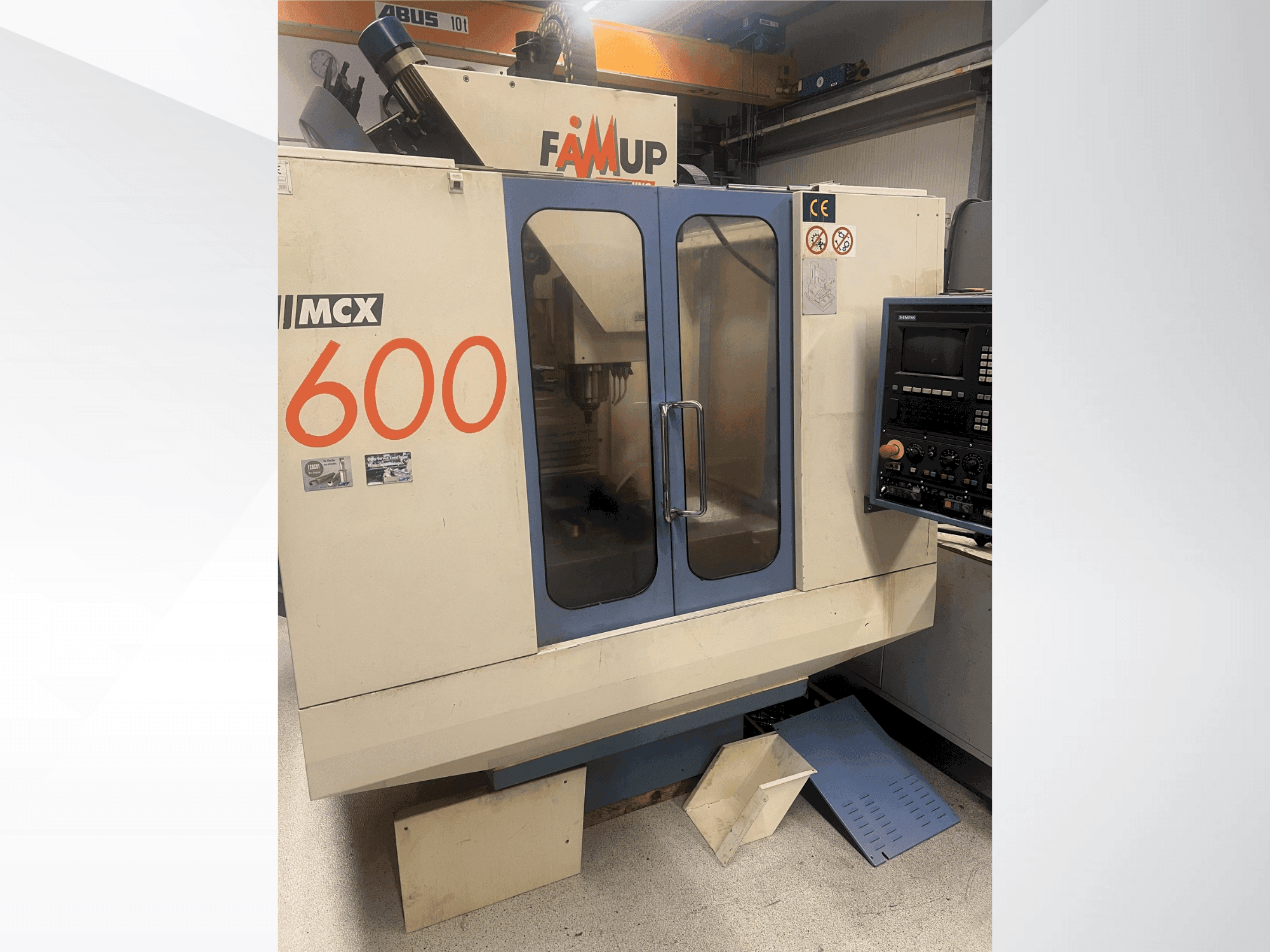

This 3-axis FAMUP MCX 600 was manufactured in 1997. It features a robust 3600 kg base machine weight, with a total weight including all components at 4630 kg. The machine offers a spindle speed of up to 6000 rpm and accommodates a maximum table load of 400 kg. X, Y, and Z axes travel are 600 mm, 400 mm, and 400 mm respectively. Consider the opportunity to buy this FAMUP MCX 600 vertical machining centre. Contact us for more information.

Overview

  • brand: FAMUP
  • year: 1997
  • MODEL: MCX 600
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: SIEMENS

Technical Information - FAMUP MCX 600

Control Unit

  • Control Brand: SIEMENS
  • Control Model: Sinumerik

Dimensions

  • Machine Weight: 3600 kg
  • Table Length: 800 mm
  • Table Width: 375 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 600 mm
  • Y-axis Travel: 400 mm
  • Z-axis Travel: 400 mm

Technical Specification

  • Spindle Speed: 6000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

  • Installed Total Power: 400 V, 50 Hz

  • Base Machine Weight: 3600 kg

  • Weight with Packaging: 4080 kg

  • Chip Conveyor Weight: 550 kg

Noise Emission

  • Noise Level (Work Area): 71.5 dB(A)

Axes Travel

  • X-Axis Travel: 600 mm

  • Y-Axis Travel: 400 mm

  • Z-Axis Travel: 400 mm

Table Specifications

  • Spindle-to-Table Distance (min-max): 140–540 mm

  • Useful Surface: 800 × 375 mm

  • T-Slots: 3

  • T-Slot Spacing: 125 mm

  • T-Slot Width: 14 mm

  • Max. Allowable Load on Table: 400 kg

  • Table-to-Floor Distance: 850 mm

Spindle Specifications

  • Cone Standard DIN 69871: ISO 40

  • Max. Spindle Speed: 6000 rpm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
