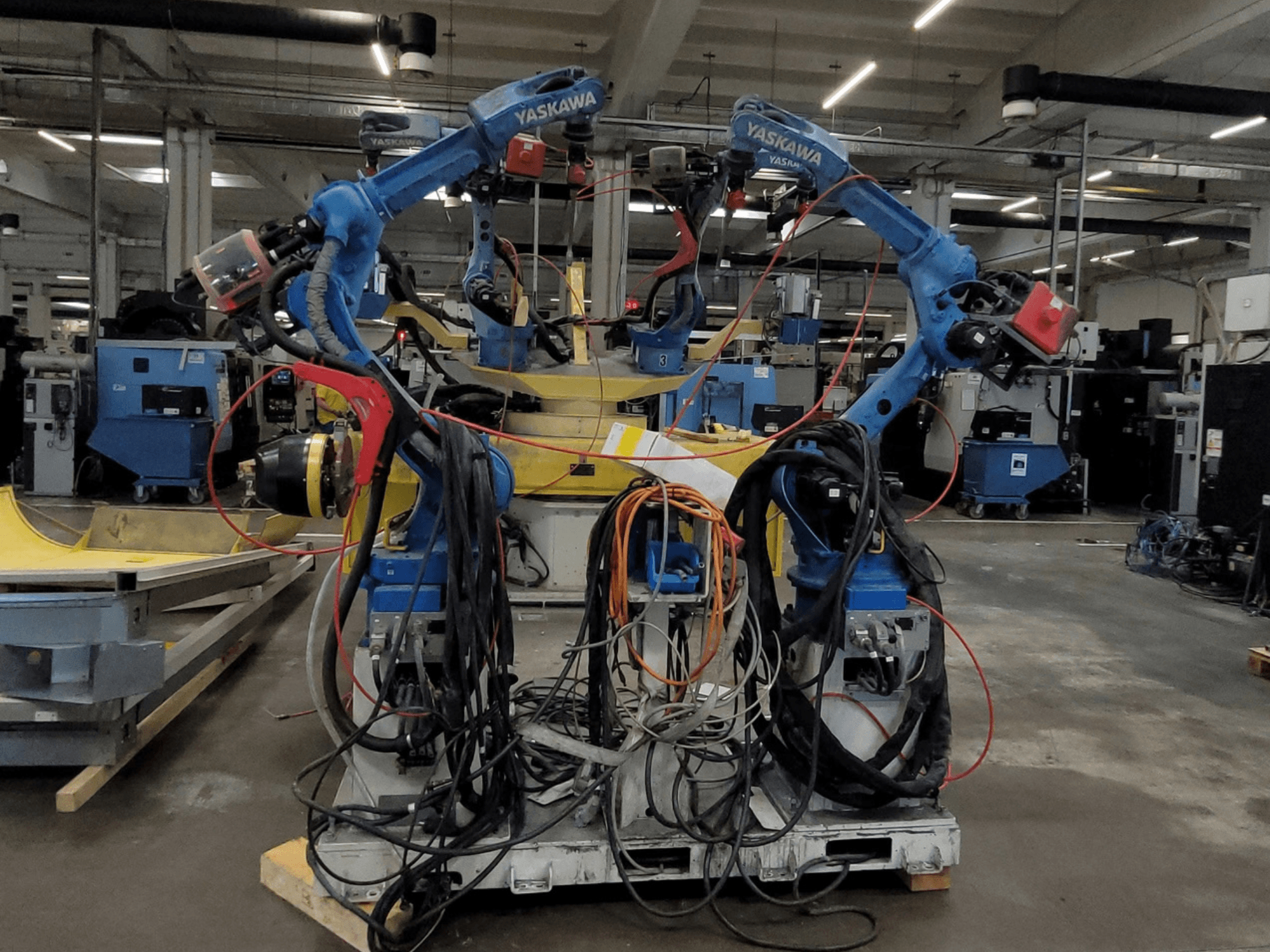

Welding robot manufactured in 2021. This Yaskawa Robotic Welding Cell RWC L1_OS 15330 features a robust configuration with multiple Yaskawa Motoman robots and advanced welding equipment. It includes a maximum reach of 2,010 mm and a payload capacity of 10 kg. If you are looking to get high-quality welding capabilities, consider the Yaskawa Robotic Welding Cell RWC L1_OS 15330 we have for sale. Contact us for further details.

Overview

  • brand: Yaskawa
  • year: 2021
  • MODEL: Robotic Welding Cell RWC L1_OS 15330
  • application type: Welding
  • Location: Slovenia
  • machine type: Welding Robot

Technical Information - Yaskawa Robotic Welding Cell RWC L1_OS 15330

Dimensions

  • Machine Length: 5200 mm
  • Machine Weight: 8000 kg
  • Machine Width: 4000 mm

Movement

  • Number of Axes: 6

Technical Specification

  • Max. Handling Weight: 10 kg
  • Max. Reach: 2010 mm

Additional Information

  • Power supply: 400 V / 50 Hz

  • Rated power: 70 kVA

  • Main fuses: 3 × 100 A

  • Compressed air supply: 6 bar

Additional equipment

  • Robots:

    • 2× Yaskawa Motoman MA2010 (6 axes; max. reach 2,010 mm; payload 10 kg; repeatability ±0.08 mm)

    • 2× Yaskawa Motoman MA1440 (6 axes; max. reach 1,440 mm; payload 6 kg; repeatability ±0.08 mm)

  • Robot controller:

    • Yaskawa DX200 multi-robot controller

  • Positioner:

    • Yaskawa RWV2-M2-1500-2500-1850 (max. payload 1,500 kg; distance between mounting plates 2,500 mm; swing diameter 1,850 mm; 3 external robot axes; weight approx. 3,400 kg)

  • Welding equipment:

    • 4× Fronius TPS400i welding power sources

    • 4× Fronius WF 25i wire feeders

    • 4× Fronius CU 1400 cooling units

    • 4× Fronius welding torches

    • 3× Abicor Binzel automatic torch cleaning units

    • 3× Q-Set automatic torch calibration systems

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
