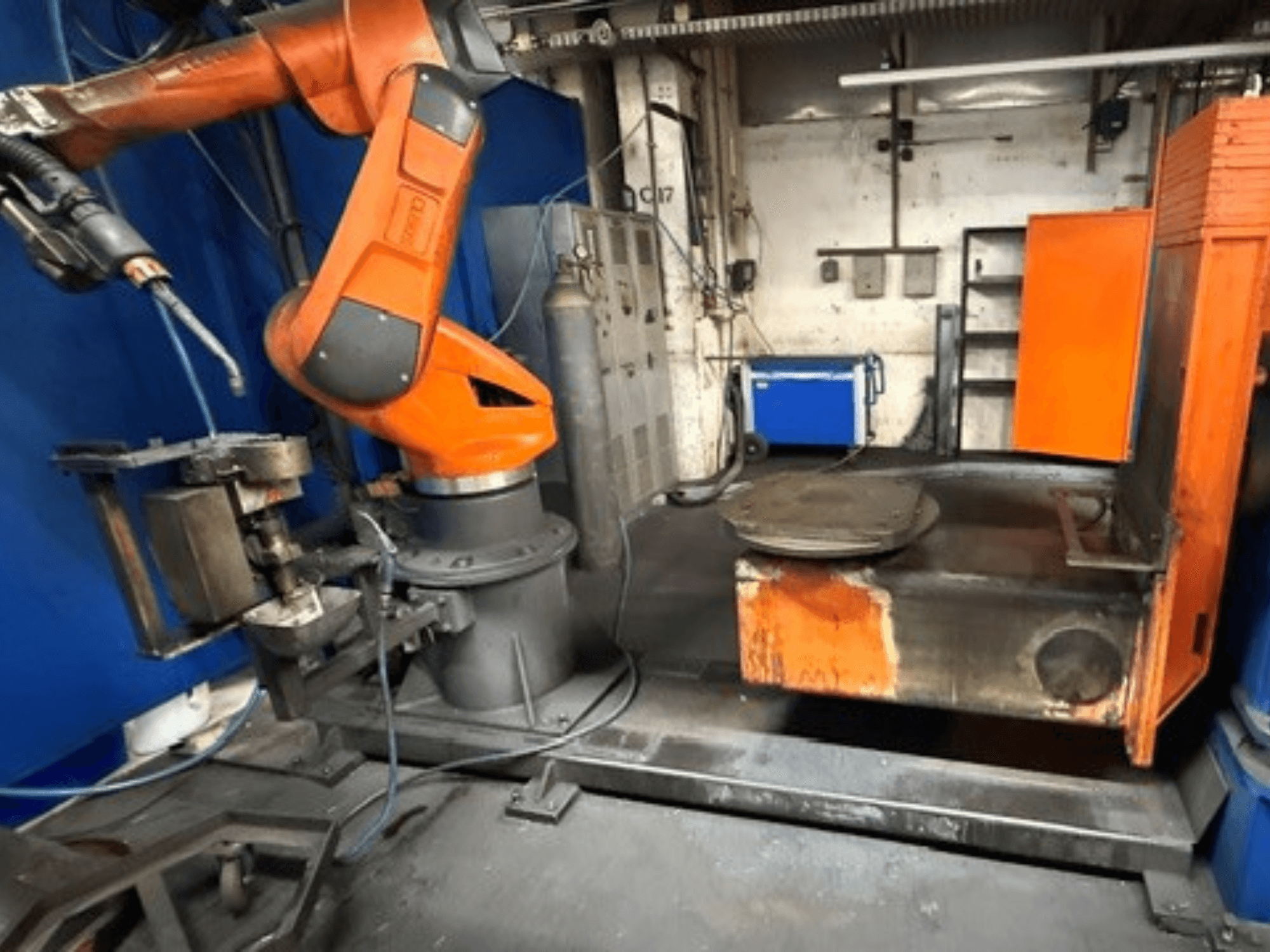

Welding robot manufactured in 2012. This CLOOS C50 welding cell features a QRC 350 robot model and includes a Qineo Pulse 450 welding power source. The system is equipped with a linear track axis configuration, mechanical torch cleaning station, and dual-station components. It also has protective safety enclosure fencing and rotatable workpiece positioners. If you are looking to get high-quality welding capabilities, consider the CLOOS C50 welding cell we have for sale. Contact us for further details.
Overview
- brand: CLOOS
- year: 2012
- MODEL: C50 welding cell
- application type: Welding
- Location: Germany
- machine type: Welding Robot
Technical Information - CLOOS C50 welding cell
Movement
- Number of Axes: 11
Additional Information
- Robot Model: QRC 350 (girOX QRC 350)
- Control Version: QC6
- Welding Power Source: Qineo Pulse 450 (CAN)
- Power Supply: 400 V / AC, 3-Phase, 50 Hz
- Connected Load: 12 kVA (System Sheet specifies 45 kVA max system load capability)
- Back-up Fuse Required: 25 A (System Circuitry specifies max 63 A)
- Control Cabinet Dimensions: 800 mm x 1900 mm x 600 mm
- Control Cabinet Weight: 300 kg
- Peripheral Components Included:
* Linear track axis configuration
* Mechanical torch cleaning station
* Dual-station components (Station 1 & Station 2 Manax operating pendants)
* Dual safety light curtains (Leuze MLD310 / 0-8 Meter)
* Protective safety enclosure fencing with automated swing doors
* Rotatable/tiltable workpiece positioners (Positioner 1 Axis 8/9 & Positioner 2 Axis 10/11)
* Grounding cable assembly: 95 mm²
* Potential equalization wiring: 50 mm²
- Pneumatic Requirements: Compressed air supply approx. 6 bar, integrated regulator set to 5.5 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
