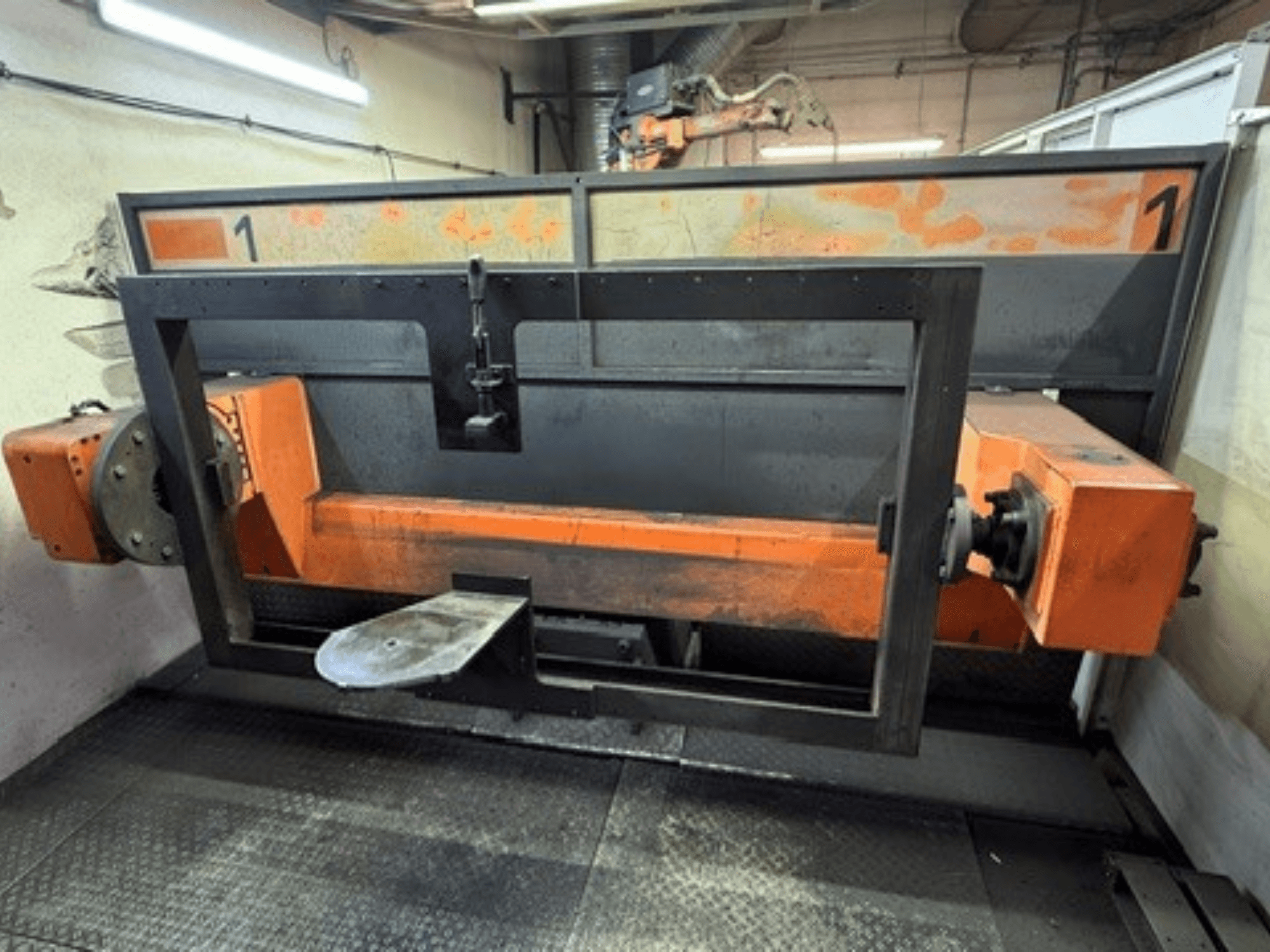

Welding robot manufactured in 2004. This ABB IRB 2400L Welding Cell features a robust design with a positioner model ABB IRB 500R and includes Fronius TPS 4000 welding equipment. It comes equipped with essential safety features such as a light curtain and safety fencing. If you are looking to get high-quality welding capabilities, consider the ABB IRB 2400L Welding Cell we have for sale. Contact us for further details.
Overview
- brand: ABB
- year: 2004
- MODEL: IRB 2400L Welding Cell
- application type: Welding
- Location: Germany
- machine type: Welding Robot
- Available from: 13/07/2026
Technical Information - ABB IRB 2400L Welding Cell
Movement
- Number of Axes: 6
Additional Information
- Industrial Robot Model: ABB IRB 2400L
- Positioner Model: ABB IRB 500R
- Welding Equipment: Fronius TPS 4000
- Supply Voltage: 3x400V/PE/N
- Cable Cross-section: 5 x 16 mm²
- Fuse Protection: 63 A delayed
- Compressed Air Requirements: 6 bar, G1/2"
- Robot Control Cabinet: Included
- Machine Sequence Control Cabinet: Included
- Robot Base Height: 800 mm
- Safety Equipment: Light curtain, safety fencing, glare protection partition wall, service door (monitored by ABB), rear access protection (mechanical, h=1100mm)
- Maintenance Units: Torch cleaning system, TCP Calibration unit
- Control Stations: Main start panel, Pre-Reset button
- Footprint Dimensions: Approx. 8025 mm (length) x 5500 mm (width)
- machine hours: 68.107h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
