➤ Used YASDA Px30i Vertical Center For sale | gindumac.com

Show in original language

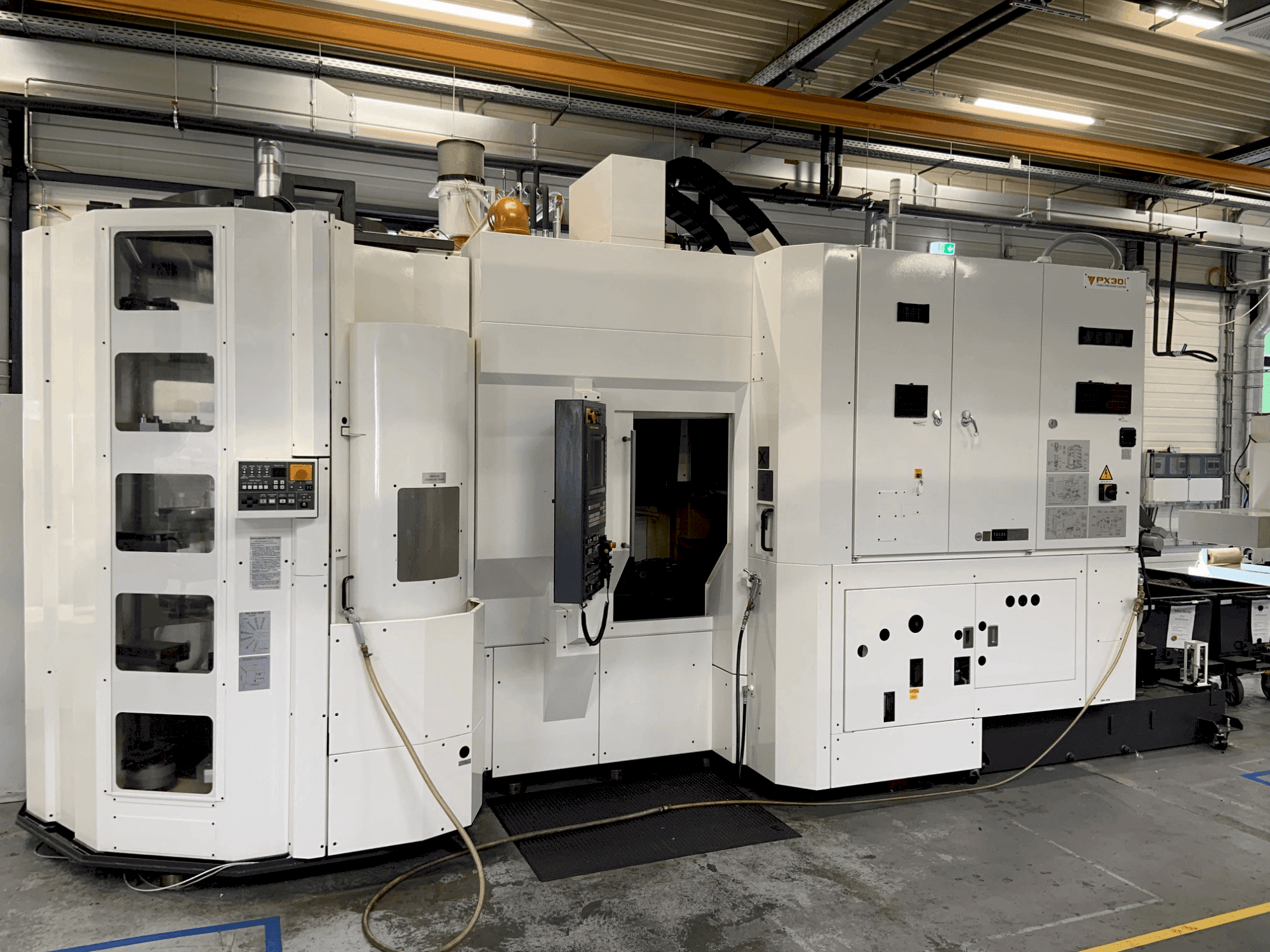

This 5-axis YASDA Px30i vertical machining center was manufactured in 2018. It features a control unit Fanuc 31i B5, a spindle speed range up to 20,000 min-1, and a rapid traverse speed of 60,000 mm/min. The machine supports a maximum workpiece diameter of 400 mm and includes an automatic tool changer, cooling unit, and pallet clamping device. A great opportunity to buy this YASDA Px30i vertical machining center. Contact us for further details regarding this vertical machining center.

Overview

brand: YASDA
year: 2018
MODEL: Px30i
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - YASDA Px30i

General Data

Machine weight: 13,000 KG

Control Unit

Model: 31i B5
Brand: FANUC

Main drive

Spindle speed range: 100-20,000 1/MIN

Movement

X-AXIS Movement: 680 mm
X-AXIS Feed Force: 20,000
X-AXIS Rapid traverse: 60,000
Y-AXIS Movement: 400 mm
Y-AXIS Feed Force: 20,000
Y-AXIS Rapid traverse: 60,000
Z-AXIS Movement: 500 mm
Z-AXIS Feed Force: 20,000
Z-AXIS Rapid traverse: 60,000
AXIS 1 Movement: -125 ° to + 65
AXIS 1 Feed Force: 50min-1

Workpiece

Workpiece drm: 400 mm
Workpiece z: 315 mm

Table

Min distance between vertical spindle and table: 120 mm
Max distance between vertical spindle and table: 620 mm
Table load: 80 kg

Additional equipment

- Automatic tool changer (ATC)
- cooling unit
- Pallet clamping device
- Measuring probe
- Calibration mandrel
- Over 300 BBT 40 milling holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Load moment: 80 nm
- - Inner diameter of the spindle bearing diameter: 65 mm.
- - Tool holder: 3000kg
- - Pls unit: 3000kg
Qualitative Machine Benefits:
- - Automatic pallet changer (apc) with 33 spaces.
- - The tool changer has 314 tool positions.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
