➤ Used Yang ML-300 For Sale | gindumac.com

Show in original language

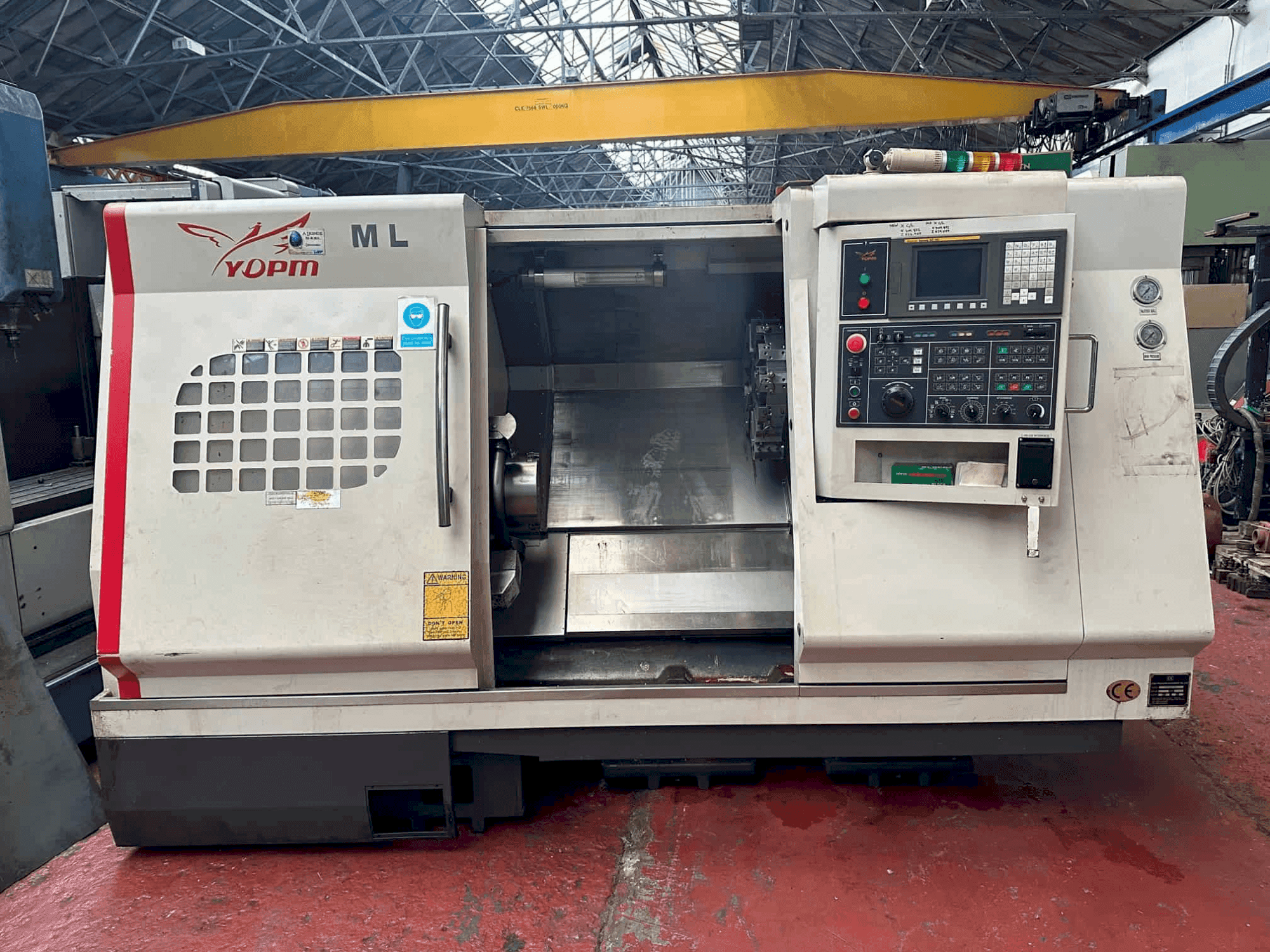

This Yang ML-300 was manufactured in 2008. A reliable horizontal turning machine, it offers solid performance for your machining needs. Consider the opportunity to buy this Yang ML-300 horizontal turning machine. Contact us for more information.

Overview

brand: Yang
year: 2008
MODEL: ML-300
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Yang ML-300

Control Unit

Control Brand: FANUC

Dimensions

Machine Depth: 4080 mm
Machine Height: 1842 mm
Machine Weight: 5200 kg

Movement

Number of Axes: 2
X-axis Travel: 240 mm
Z-axis Travel: 600 mm

Technical Specification

Spindle Speed: 3000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Coolant

Technical Machine Benefits

Swing over bed: Ø 600 mm
Diameter × length: Ø 300 mm × 600 mm
Max. Diameter: Ø 380 mm
Hydraulic tailstock travel: 465 mm mt. No. 4
Vdi tool stations: opt: 8 std: 10
Diameter of spindle bore/draw bar bore: std: Ø 77 mm / Ø 52 mm; opt: Ø 86 mm / Ø 77 mm
Spindle speed: std: Ø 203 mm chuck (3500 rpm); opt: Ø 203 mm chuck (4500 rpm), Ø 254 mm chuck (3500 rpm)
Chuck diameter: std: Ø 203 mm; opt: Ø 254 mm
Power requirement: 208-220 volts / 100 amps / 3 phases / 60 cycles

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
