WFL M 100

Photo Gallery

WFL - M 100RU-TUR-WFL-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

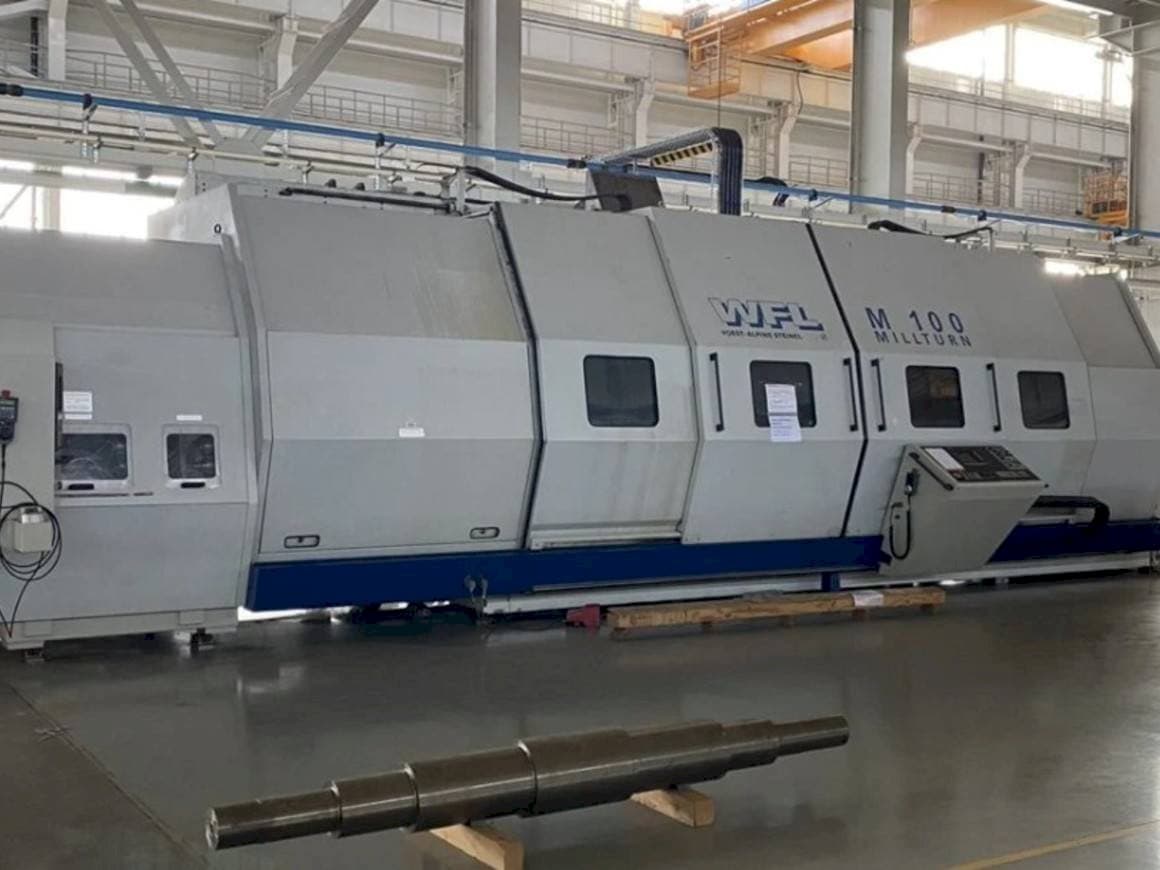

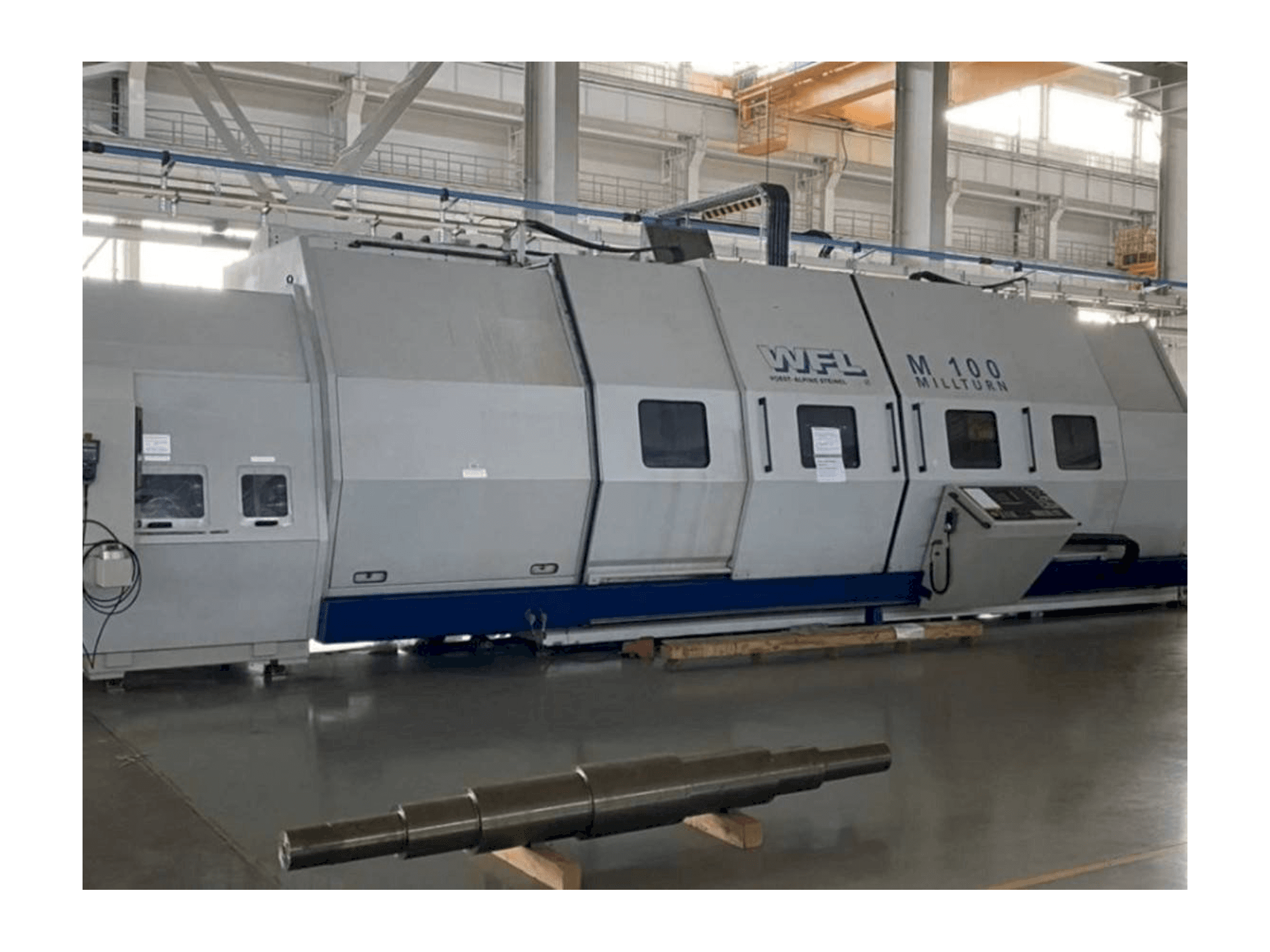

This WFL M 100 Lathe was built in 1998. This 5 axis machine is operated with a Siemens 840C control unit. It can perform with a spindle speed up to 1600 rpm. It stands out for being a Horizontal turning and milling machining center.

Overview

brand: WFL
year: 1998
MODEL: M 100
application type: Turning
Location: Russia
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - WFL M 100

General Data

Machine weight: 35000 Kg

Control Unit

Model: 840 C
Brand: SIEMENS

Main drive

Spindle speed range: 1600 1/MIN
Spindle motor power: 25 kW
Spindle bore: 165 mm
Main motor power: 63 kW
Number of axis: 5

Movement

X-AXIS Movement: 900 mm
Z-AXIS Movement: 5370 mm

Workpiece

Workpiece drm over bed: 950 mm

Table

Distance between: 5000 mm

Tail Stock

Pinol diameter: 180 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Tailstock pinole stroke - 200 mm
Rmc - 5000 mm
The installation diameter above the upper sled is 850 mm.
Spindle torque - 300 nm
The rotation angle of the axis in - 200 (-110/+90) degrees
The diameter of the spindle in the front bearing is 240 mm
Spindle bore diameter: 165 mm
The number of revolutions of the spindle: 10-4000 rpm
Maximum torque - 4724 nm
Processing diameter - 900 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
