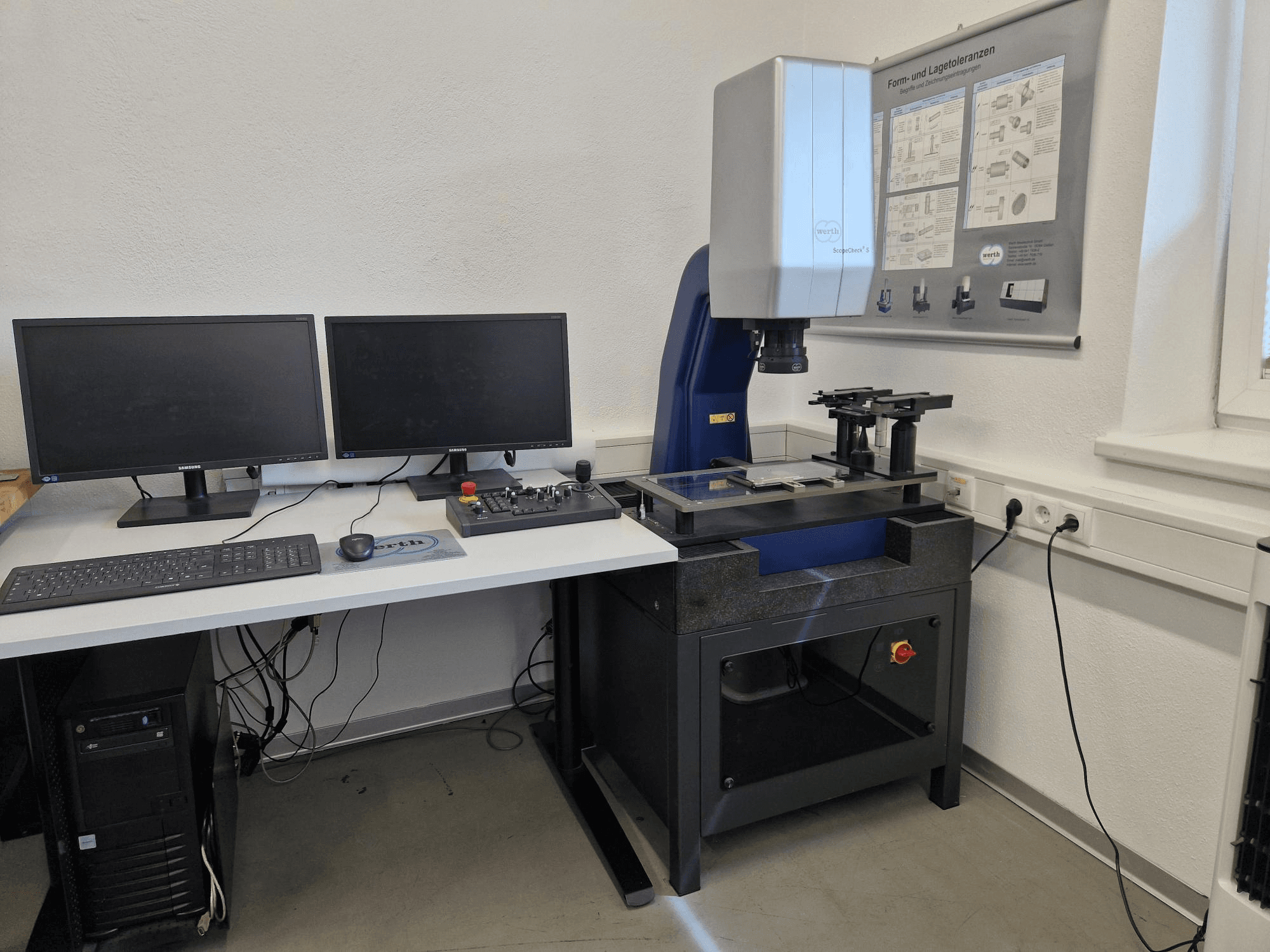

This 3-axis Werth Scopecheck 300S was manufactured in 2021. It features a measuring range of 300 mm x 200 mm x 200 mm and a resolution of 0.1 µm. The machine includes a multisensor concept with optical, scanning multi-probe, and laser sensor capabilities. If you are looking to get high-quality measurement capabilities, consider the Werth Scopecheck 300S CMM machine we have for sale. Contact us for further details.

Overview

  • brand: Werth
  • year: 2021
  • MODEL: Scopecheck 300S
  • production hours: 100
  • application type: Measuring
  • Location: Austria
  • machine type: Coordinate Measuring Machine (CMM)

Technical Information - Werth Scopecheck 300S

Dimensions

  • Machine Height: 1664 mm
  • Machine Length: 737 mm
  • Machine Weight: 260 kg
  • Machine Width: 750 mm
  • Table Load: 20 kg

Movement

  • X-axis Travel: 300 mm
  • Y-axis Travel: 200 mm
  • Z-axis Travel: 200 mm

Additional Information

- Table Load: 20 kg max (8 kg for specified accuracy)

- Resolution: 0.1 µm

- Sensors: Multisensor concept (Optical, Scanning multi-probe, Laser Sensor Probe WLP)

- Accuracy:

- MPE E1: (1.8 + L/120) µm (with 3D geometry correction)

- MPE E2: (2.0 + L/100) µm

- MPE E3: (3.9 + L/75) µm

- Operating Voltage: 115-230V AC ±10%

- Power Consumption: approx. 400 VA

- Software: WinWerth 3D with 3D CAD Bundle, Bestfit Light, Raster Scanning, and Online Statistics

- Included Components: PC system, 2 monitors, parking station, and flexible change system

- Features a Renishaw SP25M active scanning probe with an SM25-5 probe module

> allows for the highly accurate capture of freeform surfaces and contours

> suitable for both scanning and measuring individual points

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
