Weinbrenner B 12 Bending machine

Show in original language

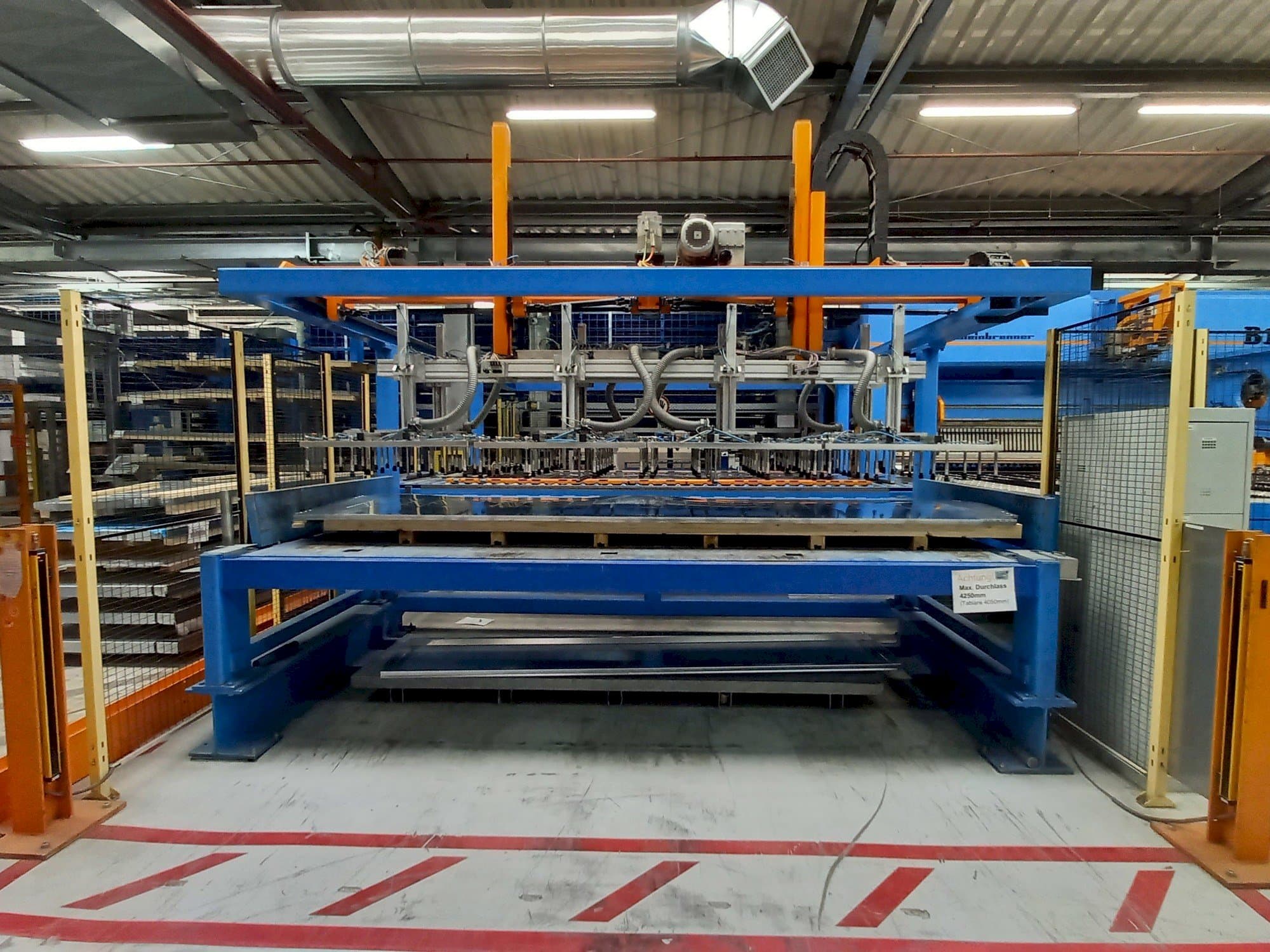

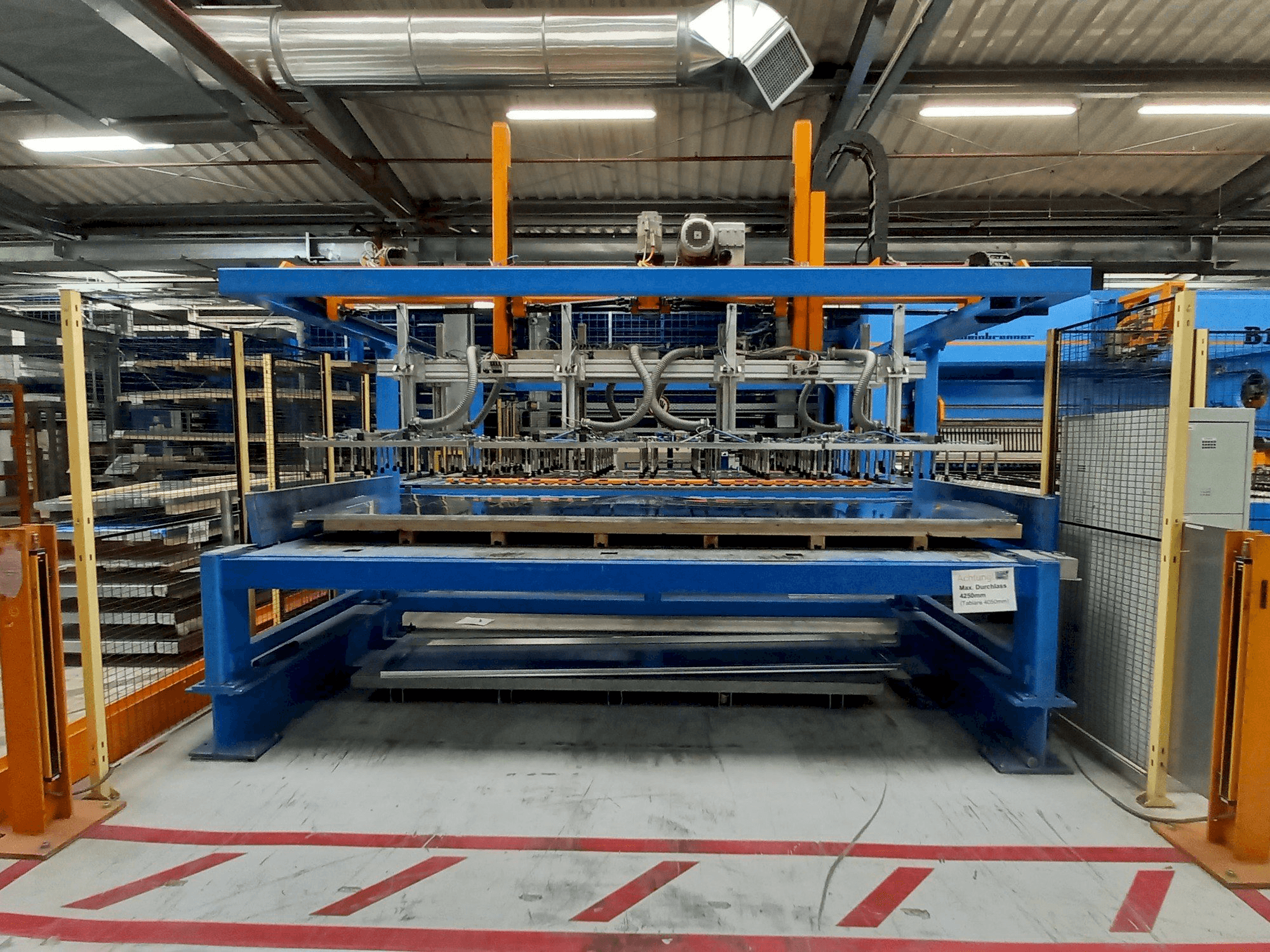

This Weinbrenner B 12 Bending machine was manufactured in the year 2006. It is equipped with a SINUMERIK 840D control unit.

Overview

brand: Weinbrenner
year: 2006
MODEL: B 12
application type: Bending
Location: Germany
machine type: Press Brake
availability: Sold

Technical Information - Weinbrenner B 12

General Data

Measurements width: 15983 mm
Measurements depth: 9942 mm
Measurements height: 3700 mm
Machine weight: 45000 kg

Control Unit

Model: 840D

Table

Height adjustment: 1280 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Connection power: 70 kw
- - Cross sections: 4 x 70mm2
- - Max. Blank size: 1500 x 4060 mm
- - Min. Blank size: 400 x 400 mm
- - Bending angle upwards max. : 135°
- - Bending angle downwards max. : 130°
- - Opening width max. : 300mm rotation adjustment (stepless)
- - Fuse protection: 200a
- - Pressure: 6bar
- - Air consumption: 500l/min
Qualitative Machine Benefits:
- - Blank size max. : 1500 x 4060 mm blank size min. : 400 x 400 mm sheet thickness max. (450n/mm? ): 3mm
- - Bending angle upwards max. : 135°
- - Bending angle downwards max. 300 mm
- - Rotation adjustment(mareless)
- - Fuse protection: 2000
- - Power: 70 kw
- - Pressure: 6bar air consumption:5001/min connections

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
