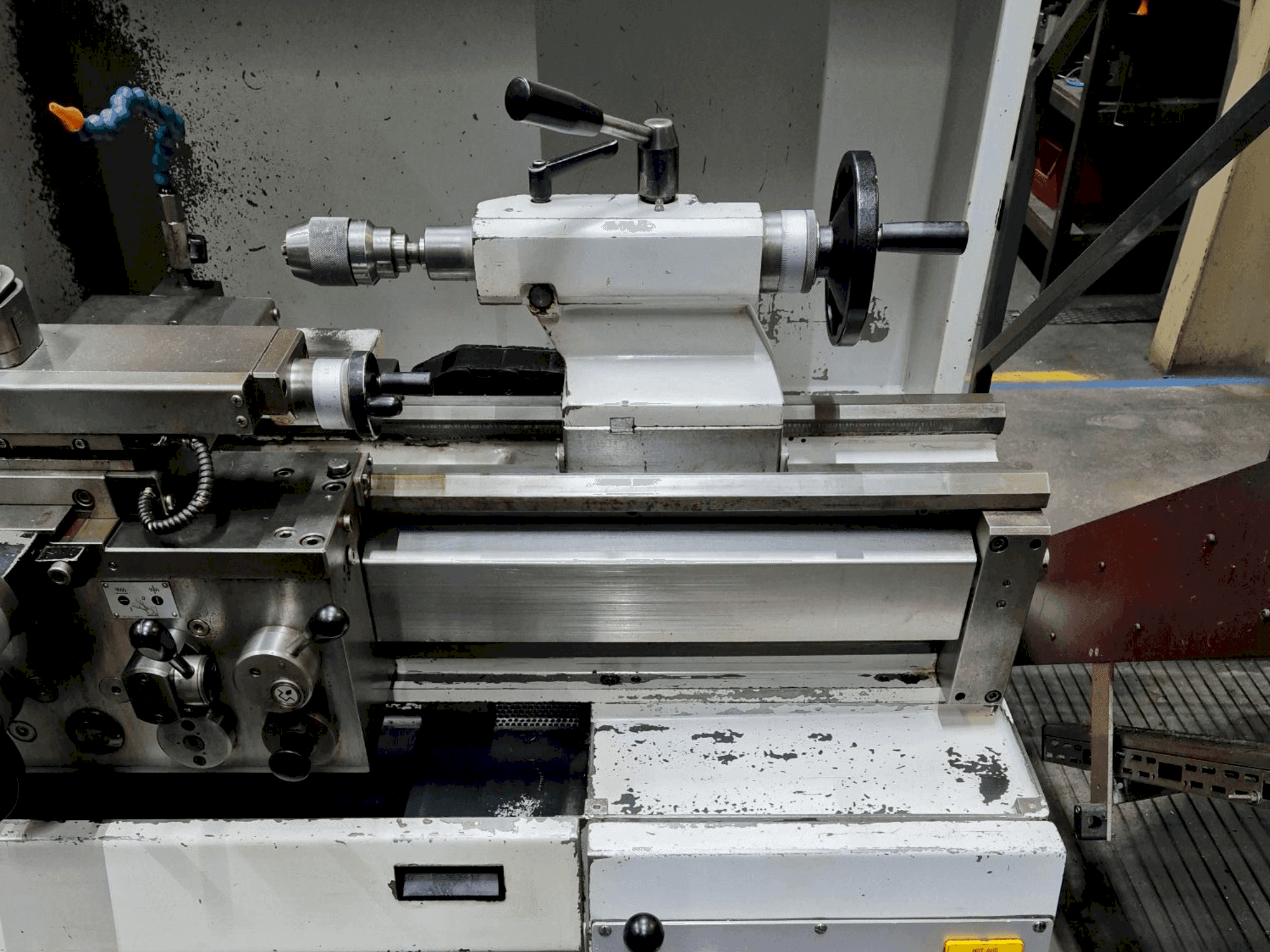

This 3-axis Weiler PRAKTIKANT VC lathe was manufactured in 2001. It features a swing diameter over the cross slide of 165mm, a turning length between centers of 650mm, and a spindle diameter in front bearing of 70mm. The machine offers a speed range of 30-4000 rpm, with a maximum chuck diameter of 200mm. Ideal for detailed and precise work, the Weiler PRAKTIKANT VC machine we have for sale represents a robust addition to any workshop. Contact us for further details.
Overview
- brand: Weiler
- year: 2001
- MODEL: PRAKTIKANT VC
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - Weiler PRAKTIKANT VC
Dimensions
- Machine Weight: 920 kg
Movement
- Number of Axes: 2
- X-axis Travel: 150 mm
- Z-axis Travel: 650 mm
Technical Specification
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment
- Coolant Tank Dimensions: 1550 x 935 x 1550 mm.
Machine Benefits
Qualitative Machine Benefits
- Permissible workpiece dimensions: between centers without setting blocks 100 kg.
- Precision and control with a cross slide featuring t-slot and adjustable angles.
Technical Machine Benefits
- Spindle diameter in front bearing: 70 mm
- Spindle clearance: 40 mm
- Swing diameter over cross slide with t-slots: 165 mm
- Center height: 160 mm
- Bed width: 205 mm
- Guide length: 350 mm
- Max chisel cross-section: 20 x 20 mm
- Quill stroke: 85 mm // quill diameter: 40 mm
- Chuck diameter max: 200 mm //face plate max diameter: 250 mm
- Versatile turning capabilities with a robust feed force.
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
