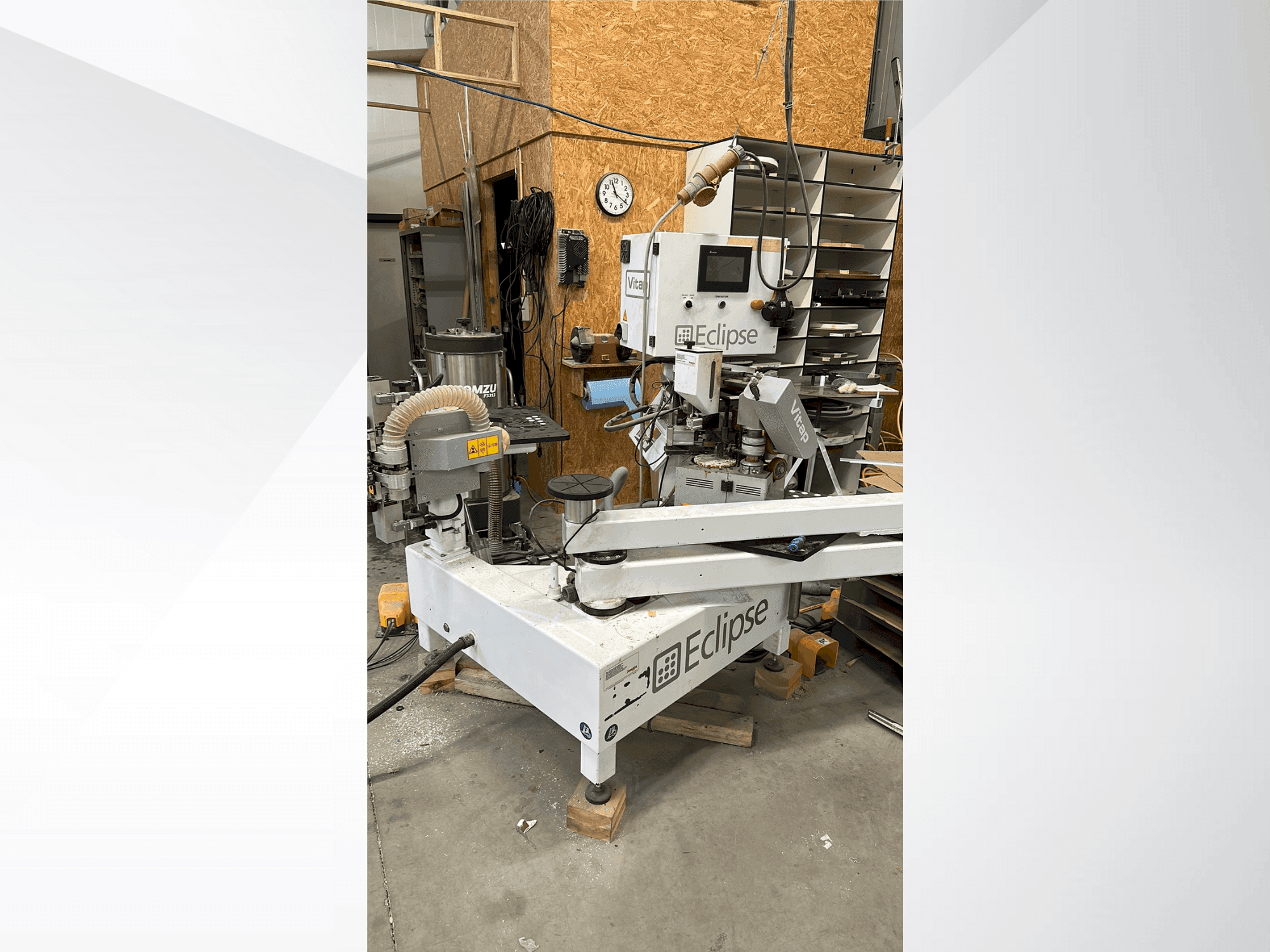

VITAP - EclipseNL-EDG-VIT-2018-00001

Additional equipment

• Glue Pot Capacity: Max glue pot capacity 1 Kg (with optional 2 Kg glue pot)
• Gluing Unit:Edge gluing on open and closed curved panels of small and large dimensions/1 gluing roller/2 rollers to copy the shape of the panel/2 800 W resistors with electronic temperature control/Manual adjustment of the glue quantity/Glue temperature adjustment/Automatic edge cutting system
• PLC System: For setting the measurement and cutting of the edge with encoder reading
• Laser: Facilitates cutting programming for closed pieces without the need to measure the piece
• Piece Feeder: On/Off automatic piece feeder
• Work Surface: For edging and trimming small pieces
• Edge Magazine: Rolled edge magazine with idle roller system
• Trimming Group: 2 high frequency 0.5 kW motors with rotation speed of 15000 rpm /On/Off trimming unit/Pneumatic lifting of the two motors/2 brazed cutters R=3 Z=6/
• Articulated Arm: Complete with workpiece depression table for edging and trimming large pieces

Machine Benefits

Qualitative Machine Benefits

• Facilitates efficient edging and trimming on both small and large pieces
• Compliant with ce standards

Technical Machine Benefits

• Dimensions of machine (lxwxh): 2000 x 2000 x 1700 mm (with closed arms); 3400 x 3400 x 1700 mm (with arms open)
