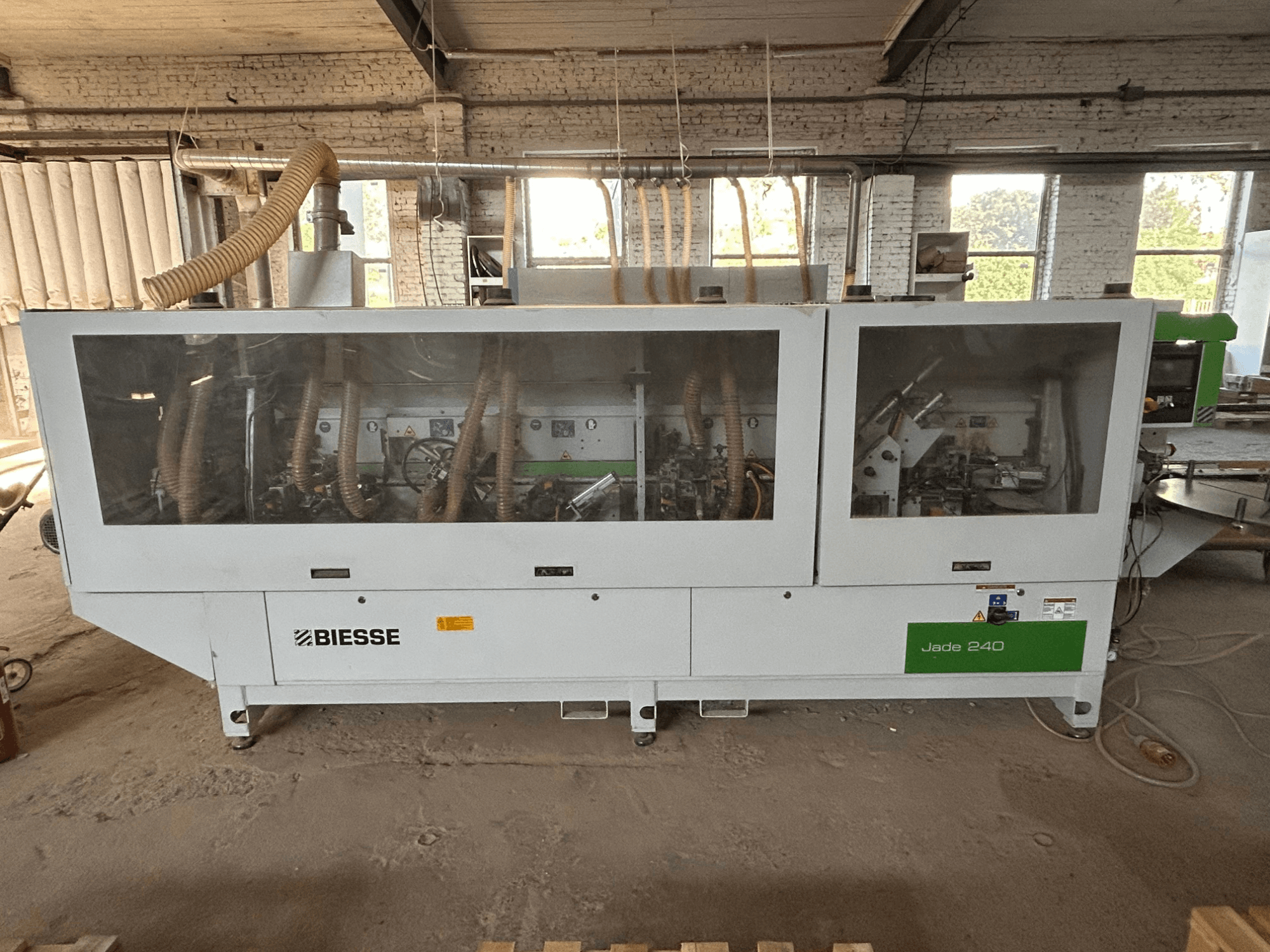

BIESSE - Jade 240PL-EDG-BIE-2017-00001

Technical data:

• Panel thickness: 10–60 mm

• Edge height: 14–64 mm

• Edge thickness (coil): 0.4–3 mm

• Edge thickness (solid strips): up to 8 mm

• Feed speed: 12 m/min

• Minimum workpiece length: 150 mm

• Minimum workpiece width at 150 mm length: 85 mm

• Minimum workpiece width at 250 mm length: 50 mm

• Pneumatic connection: 7 bar

• Glue pot capacity: approx. 2 kg

• Glue pot heat-up time: approx. 10 min

• Dust extraction connections: 100 mm

Standard units:

• Pre-milling unit

• Glue application unit

• End trimming unit

• Flush/profile trimming unit

• Corner rounding unit

• Radius scraping unit

• Glue joint scraper

• Buffing unit
