➤ Used Unisign Univers 6 Universal Machining center

Show in original language

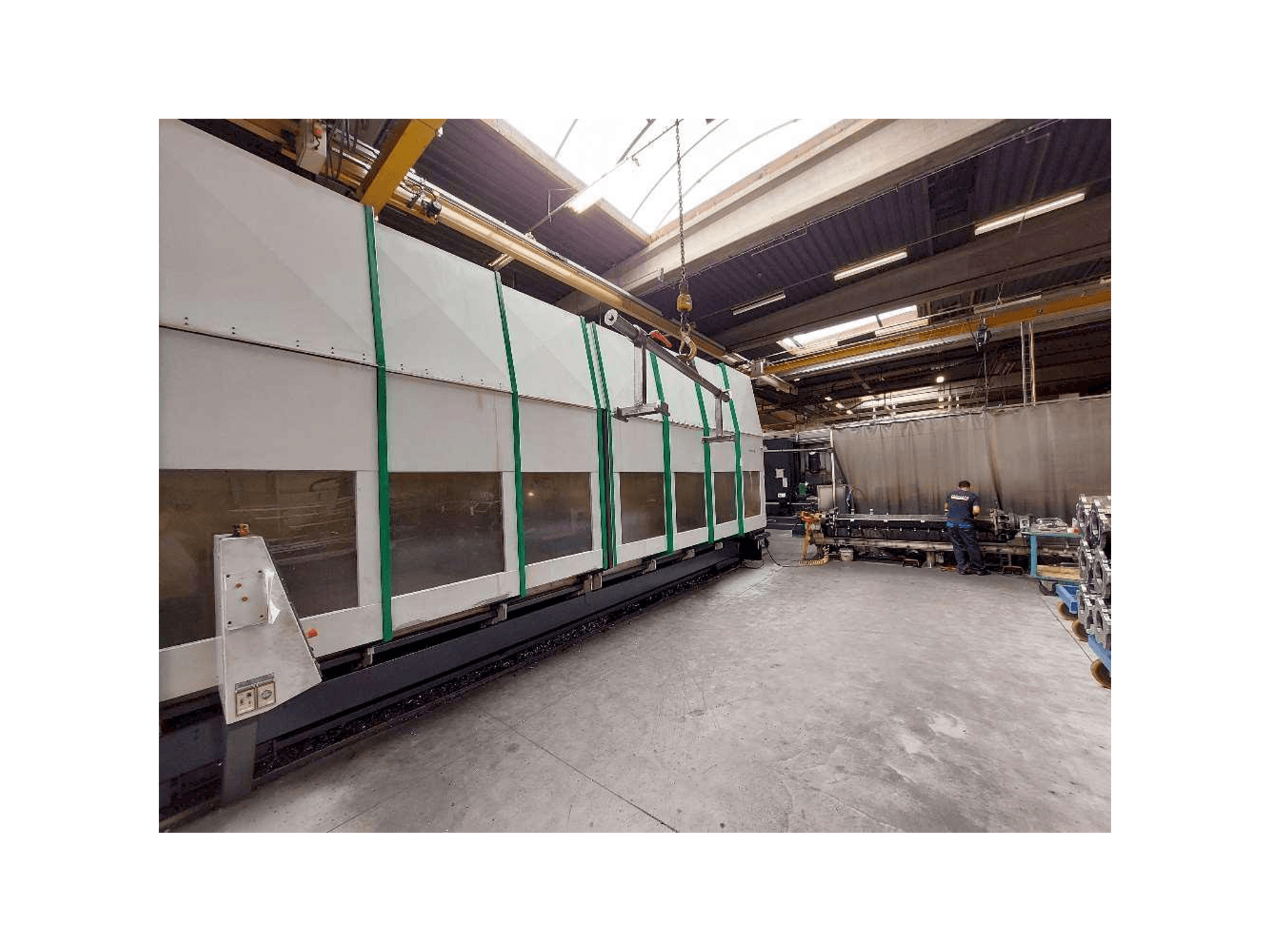

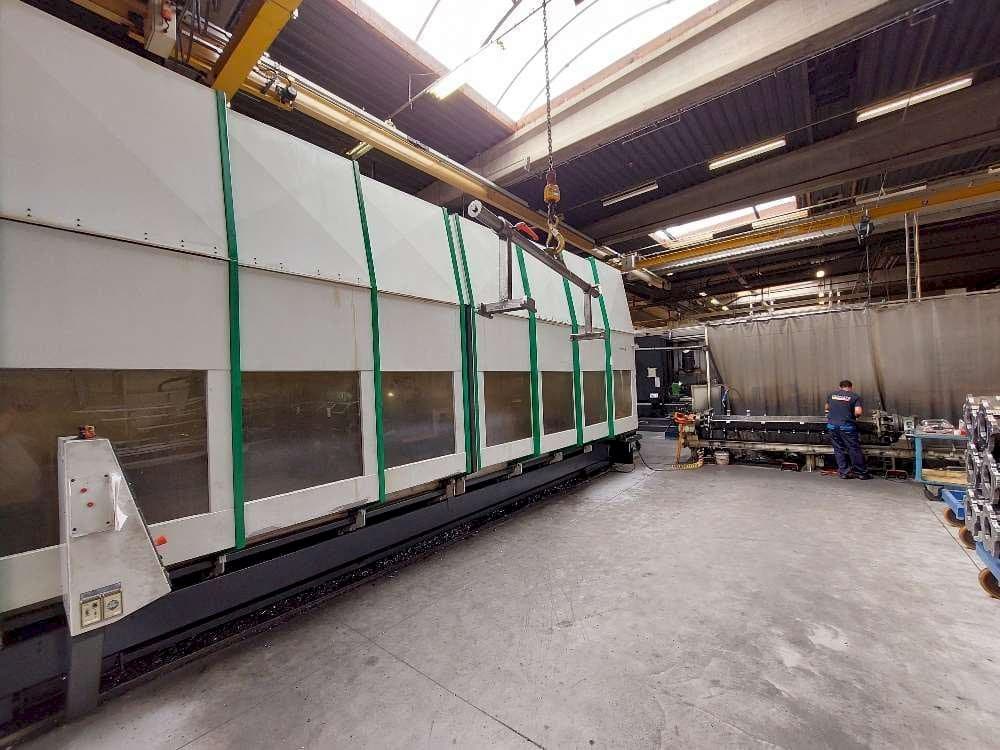

This Unisign Univers 6 Universal Machining Center was manufactured in the year 2007 in the Netherlands. It is equipped with a SIEMENS SINUMERIK 840D control unit. The machine has a spindle speed of 6000 rpm.

Overview

brand: Unisign
year: 2007
MODEL: Univers 6
application type: Milling
Location: Netherlands
machine type: Universal Machining Centre
control unit brand: SIEMENS

Technical Information - Unisign Univers 6

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 840D

Movement

X-axis Travel: 800 mm
Y-axis Travel: 600 mm

Technical Specification

Spindle Power: 26 kW
Spindle Speed: 6000 RPM
Tool Stations: 52

Additional Information

Machine Benefits

Technical Machine Benefits

2 pcs sempuco nc tables 400 mm , mounted as an a axe
2 aspiration units with integrated electrostatic filters , 2 x 2500 m3/hour
2 pcs cleaning pistols on separate pump
Electronic handwheel for siemens 840d
Software “surface sensing”
Coolant installation extended to 900 liter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
