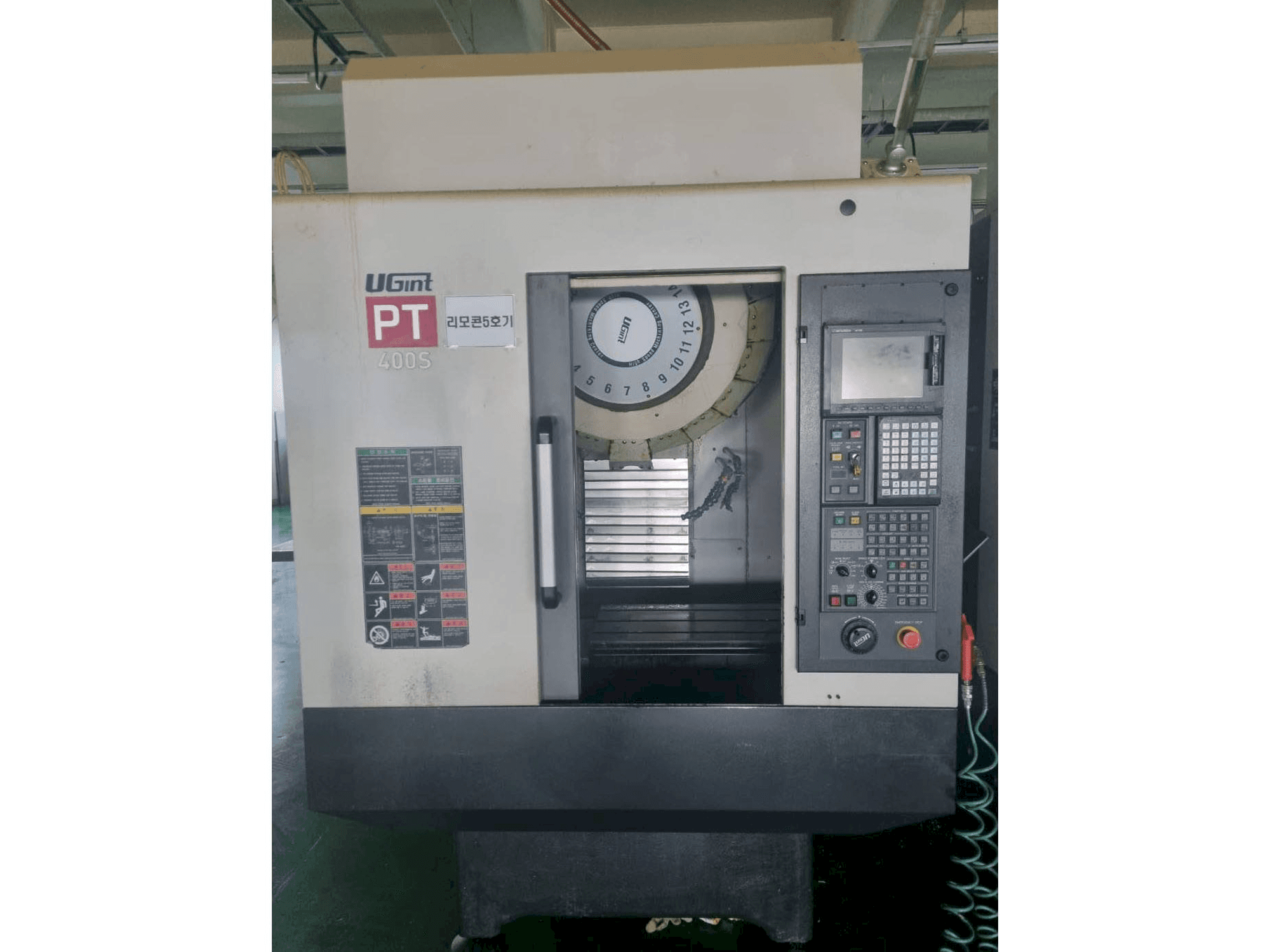

UGINT PT400S vertical machine center

Show in original language

This UGINT PT400S vertical machine center was made in the year 2017. It is equipped with an MITSUBISHI M700 control unit. The machine has a spindle speed of 24000 rpm.

Overview

brand: UGINT
year: 2017
MODEL: PT400S
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MITSUBISHI

Technical Information - UGINT PT400S

General Data

Measurements width: 2115 mm
Measurements depth: 1560 mm
Measurements height: 2443 mm
Machine weight: 2850 kg

Control Unit

Model: M700
Brand: MITSUBISHI

Main drive

Spindle speed range: 24000 1/MIN
Spindle motor power: 3.7/2.2 kW
Tool taper: NT #30

Movement

X-AXIS Movement: 520 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 350 mm
Z-AXIS Rapid traverse: 60 m/min

Table

Outer length: 620 mm
Outer width: 390 mm
Table load: 150 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Spindle torque 17. 7 n. M
- - Atc: 20 tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
