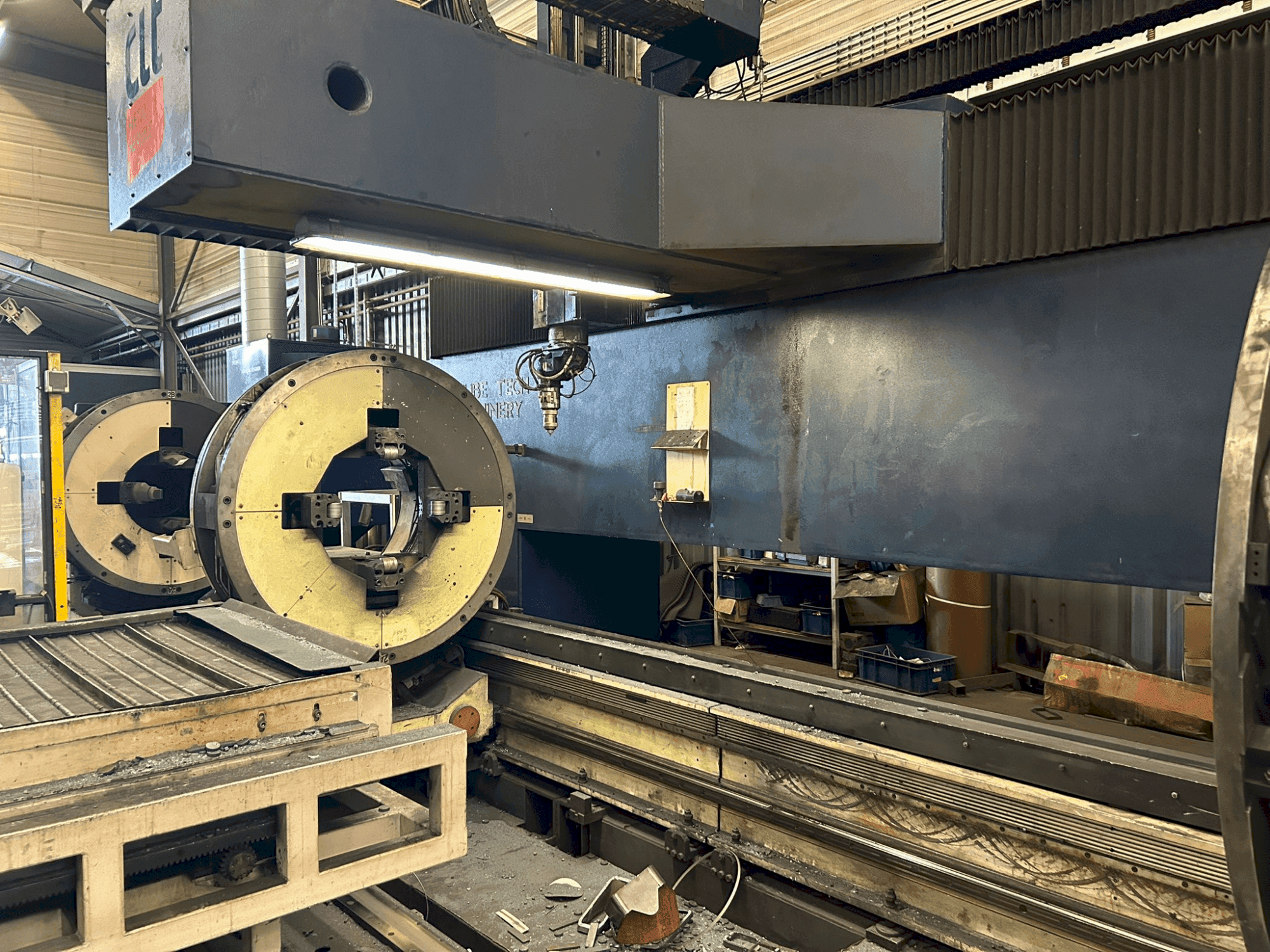

Front view of TTM FL 600 3D machine
Front view of TTM FL 600 3D machine

TTM - FL 600 3DNL-CUT-TTM-2010-00001

Rs. 12,002,650
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis TTM FL 600 3D tube cutting machine was manufactured in 2010. It features a Trumpf Truflow 5000 resonator with 5kW power and a 3D cutting head capable of 45-degree cuts. It handles tubes up to Ø610mm, with a maximum wall thickness of 25mm for steel. The machine includes an automatic loading system with 8 locations. If you are looking to get high-quality cutting capabilities, consider the TTM FL 600 3D machine we have for sale. Contact us for more information.

Overview

  • brand: TTM
  • year: 2010
  • MODEL: FL 600 3D
  • application type: Cutting
  • Location: Netherlands
  • machine type: Tube Cutting Machine
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - TTM FL 600 3D

Control Unit

  • Brand: SIEMENS

Main drive

  • Number of axis: 5

Max Material thickness

  • Steel: 25 mm
  • Stainless steel: 20 mm

    Additional equipment

    • - Automatic (un)loading with 8 loading locations

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Loading length: 15000mm
        • - Unloading length: 15000mm
        • - Round tube: up to Ø610mm
        • - Rectangular tube: up to 500x300
        • - Square tube: up to 425x425
        • - 3d cutting head: up to 45 degrees

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Alessandro Martini

    Alessandro Martini is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
