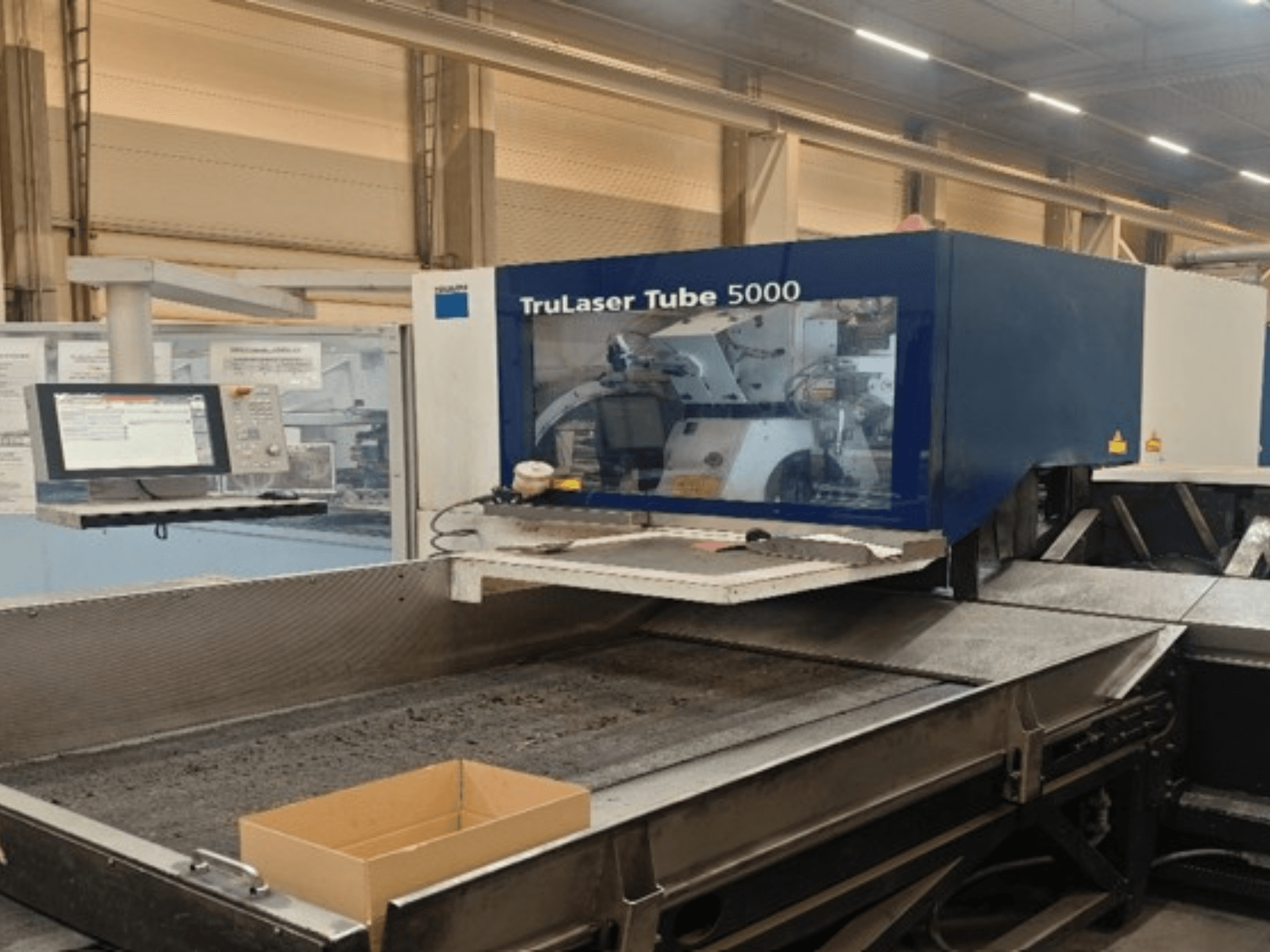

Tube cutting machine manufactured in 2015. This TRUMPF TruLaser Tube 5000 features a working range of 6500 mm in the X-axis and 310 mm in the Y-axis, with a maximum workpiece length of 3000 mm. It supports various tube diameters and has a maximum workpiece weight of 130 kg. If you are looking to get high-quality tube cutting capabilities, consider the TRUMPF TruLaser Tube 5000 machine we have for sale. Contact us for further details.
Overview
- brand: TRUMPF
- year: 2015
- MODEL: TruLaser Tube 5000
- production hours: 67121
- application type: Cutting
- Location: Czech Republic
- machine type: Tube Cutting Machine
- control unit brand: SIEMENS
Technical Information - TRUMPF TruLaser Tube 5000
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840D SL
Dimensions
- Machine Height: 2800 mm
- Machine Length: 16000 mm
- Machine Weight: 17000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 6500 mm
- Y-axis Travel: 310 mm
- Z-axis Travel: 170 mm
Technical Specification
- Laser Power: 2 kW
Additional Information
Working range A1 axis (pulling chuck): n x 360°
Working range A2 axis (feed station): n x 360°
Workpiece max. length of raw material: 6500 mm
Workpiece min. length of raw material: 3000 mm
Workpiece min./max. outer diameter (circular): 20–152 mm
Workpiece min./max. side length (rectangular, at max. circumscribed circle 170 mm): 20–150 mm
Workpiece max. length of finished part: 3000 mm
Workpiece min. length of tube remnant: 120 mm
Workpiece max. scrap length: 400 mm
Bundle dimensions max. cross-section: 600 x 750 mm
Bundle dimensions max. weight: 4000 kg
Material weights max. workpiece weight: 130 kg (loading 6.5 m)
Material weights max. workpiece weight per meter: 20 kg/m
Speeds X axis (+): 170 m/min
Speeds X axis (-): 100 m/min
Speeds Y axis: 60 m/min
Speeds Z axis: 60 m/min
Speeds A axis: 780 °/s
Positioning accuracy, position deviation Pa: ±0.2 mm / ±0.015°
Positioning accuracy, mean position dispersion Ps: ±0.06 mm / ±0.005°
Smallest programmable path length: ±0.01 mm / ±0.001°
Lens cutting head focal length: 155 mm
Depth 7000 mm; Length 16000 mm (loading 6.5 m, unloading 3 m)
Additional equipment
Option to reduce minimum circular tube outer diameter to 15 mm (from 20 mm)
Option to reduce minimum rectangular tube side length to 15 mm (from 20 mm)
Option to increase max finished part length to 6500 mm (from 3000 mm)
Option “Length of finished parts +1.5 m”: adds 1500 mm to finished part length
Optional 8.0 m loading system: increases max workpiece weight to 160 kg (from 130 kg)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
