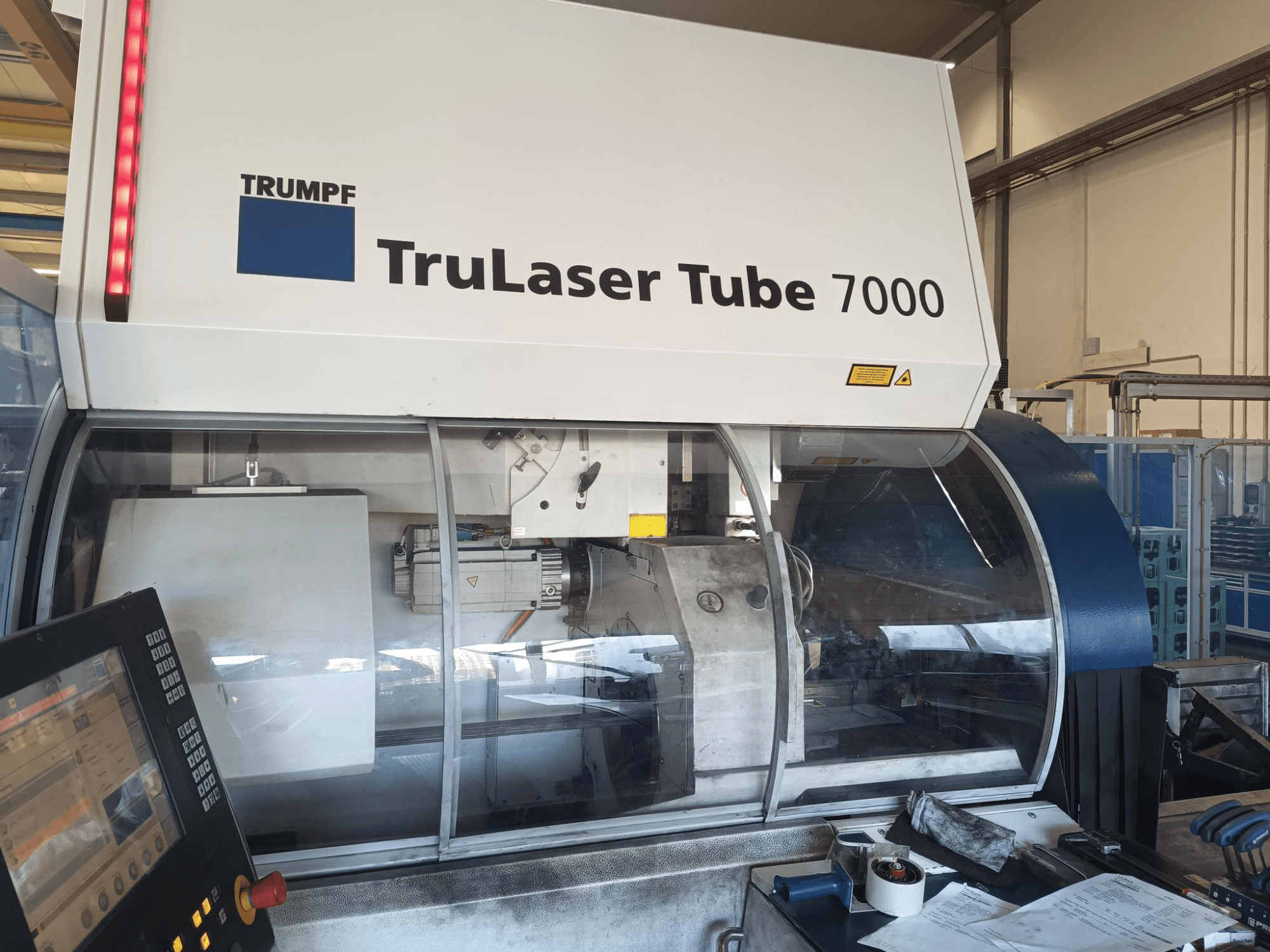

This TRUMPF TruLaser Tube 7000 KT02 was manufactured in 2010. It features a working area of 6500 mm on the X-axis and can handle circular diameters up to 200 mm. Equipped with a CO₂ laser TruFlow 2000 and a laser cutting head with a 155 mm lens, it's ideal for precise tube cutting. Contact us for more information about this machine.
Overview
- brand: TRUMPF
- year: 2010
- MODEL: TruLaser Tube 7000 KT02
- production hours: 15043
- application type: Cutting
- Location: Germany
- machine type: Tube Cutting Machine
- Available from: 01/10/2026
Technical Information - TRUMPF TruLaser Tube 7000 KT02
Movement
- Number of Axes: 5
- X-axis Travel: 6500 mm
Technical Specification
- Laser Power: 3.6 kW
Additional Information
Circular diameter: 200 mm
Reject station: 3 m with brush table
Reject tray
Working Range X Tube Axis: 6500 mm
Outer Circle Diameter: 254 mm (Upgraded from standard 200 mm)
Unloading Station: 3 m with brush table, front unloading
Laser Type: CO2 Laser TruFlow 3600 including LensLine (Surcharge upgrade from standard TruFlow 2000)
Control: Sinumerik 840D, Teleservice
Standard Software/Features: NitroLine, FocusLine, SprintLine, Laser power control, Programmable cutting gas pressure, Program re-entry, Automatic shutdown, Workspace lighting, Laser logbook function, Laser cooling unit
Laser: CO₂ laser TruFlow 2000
Laser cooling unit
Cutting Head: Lens cutting head with 155 mm focal length, ControlLine
Control unit: 84D
Connectivity/data transfer: RJ-45 network connection, USB connection; network connection incl. installation
Safety: CE marking, Multi-beam light barriers, Compact dust extractor 1500 Nm³/h, Protective cabin with Makrolon panels
Ambient Operating Temperature: Up to 43°C
Installation Type: Special machine installation setup
Additional equipment
Accessories:
Spare parts case for cutting heads
1 x remote control kit
Clamping jaw set Ø 16 / 200 mm
U-shaped guide rails for reject station with ID = 200 mm
Automation:
Loading Unit: LoadMaster Tube 6.5 m with bundle support, 2 grippers, 254 mm outer circle diameter capacity, low-scratch design for 6m, swiveling conveyor line, additional gripper D=254 mm
Options for LoadMaster Tube 6 m:
Circular diameter 250 mm
Shorter belt support
Swivelable conveyor section
Additional gripper Ø 200 mm
Additional gripper Ø 250 mm
Special equipment:
Flexible reject station 4.5 m (prototype) instead of reject station 3 m, without brush table
Special installation for flexible reject station
LoadMaster (series version 103)
Installation 100 mm higher (use of wire mesh container possible), decision upon acceptance
Services:
Installation, commissioning, training
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
