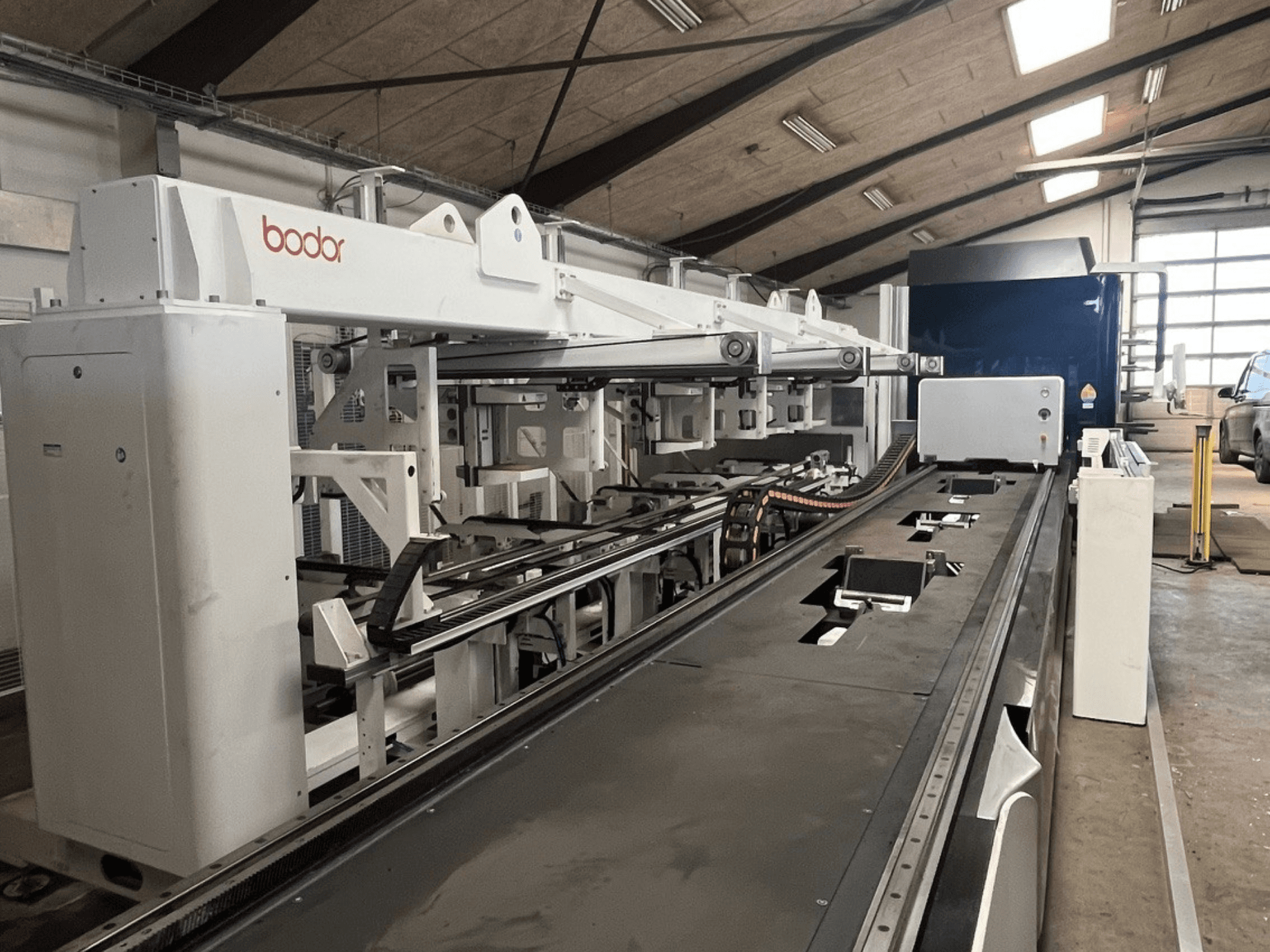

Tube cutting machine manufactured in 2024. This Bodor T2-65-3000W features advanced technology for efficient cutting operations. If you are looking to get high-quality tube cutting capabilities, consider the Bodor T2-65-3000W machine we have for sale. Contact us for further details.
Overview
- brand: Bodor
- year: 2024
- MODEL: T2-65-3000W
- application type: Cutting
- Location: Denmark
- machine type: Tube Cutting Machine
Technical Information - Bodor T2-65-3000W
Movement
- Number of Axes: 5
Technical Specification
- Laser Power: 3 kW
Additional Information
Model T230
Tube size range Round tube：φ8-φ230mm
Square tube ：□8-□230mm
Rectangular tube 230mm≥Side length≥8mm
I-beam 10#-14#
Requirements for tubes
Diameter＜φ50mm
Wall thickness of tubes≥1.2mm；
Diameter≥φ50mm
Wall thickness≥2.5% of Diameters of tubes
Pneumatic chuck maximum load 300kg 46kg/m
Maximum machinable tube length 6500mm
Maximun unloading length 4500mm
Shortest remaining material 80mm
Laser Power / Brand 3000W Bodor
Positioning Accuracy 0.05mm
Repositioning Accuracy 0.03mm
Max. Acceleration 1.5G
Machine overall dimensions
12650mm×2350mm×2500mm
Overall weight 5060kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
