TSUGAMI MO8SYE-II

Photo Gallery

TSUGAMI - MO8SYE-IITR-TUR-TSU-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

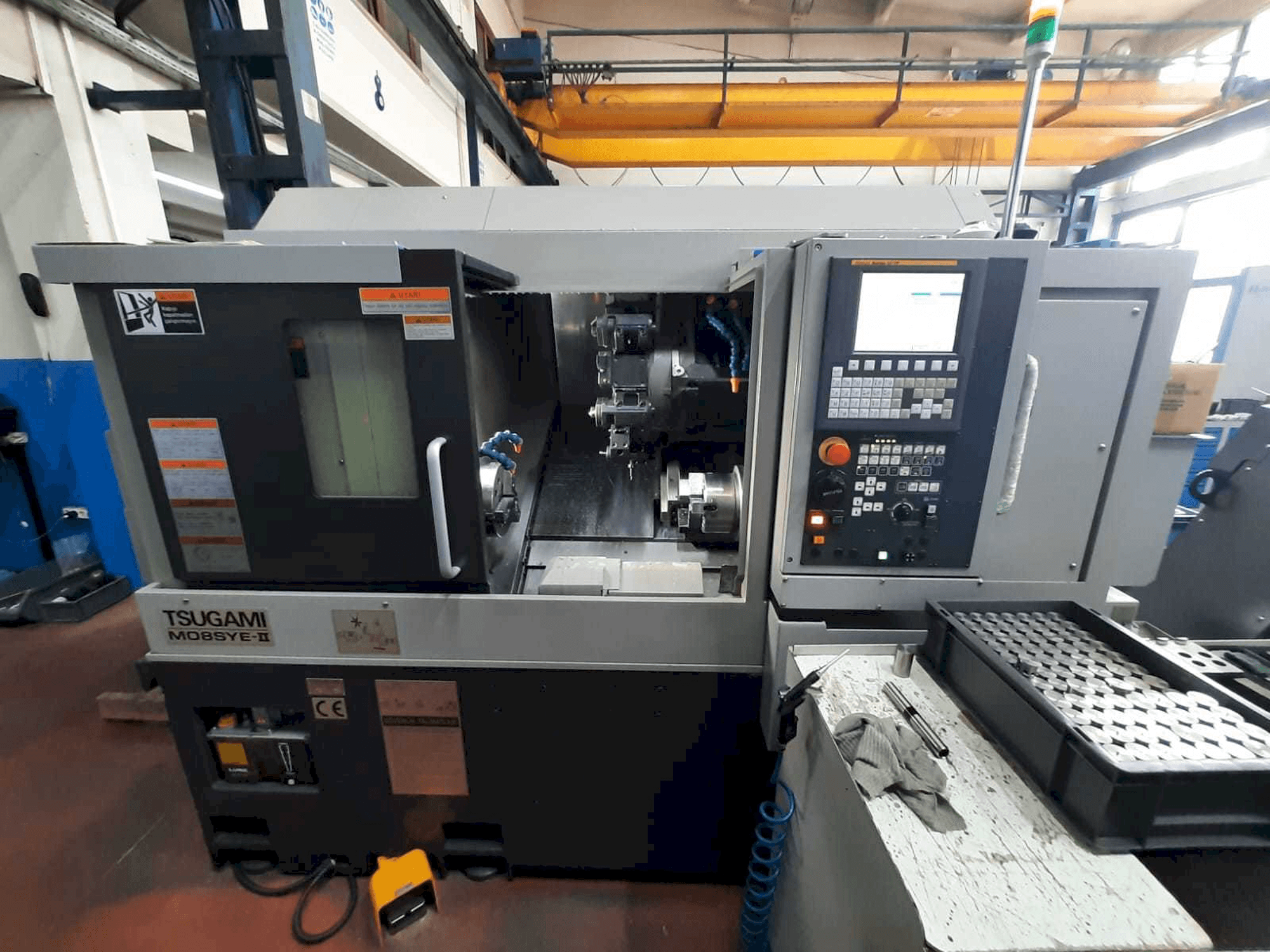

TSUGAMI MO8SYE-II lathe

Show in original language

This TSUGAMI MO8SYE-II lathe was manufactured in the year 2017 and has 17719 production hours. It is equipped with a Fanuc Series Oi-TF control unit. The machine has 2 C and Y axis, a Single turret, and sub spindle.

Overview

brand: TSUGAMI
year: 2017
MODEL: MO8SYE-II
production hours: 17719
application type: Turning
Location: Turkey
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - TSUGAMI MO8SYE-II

Control Unit

Control Brand: FANUC
Control Model: Serie Oi-TF

Dimensions

Machine Weight: 6000 kg

Additional Information

Additional equipment

LNS brand chip conveyor
Parts catcher with part conveyor type
3 color lamps
english documents
pedal photo

Machine Benefits

Qualitative Machine Benefits

Machine installed in 2018
There are 2 c axis: one is for main spindle side and second one is sub spindle side.
Fanuc option for angled cutting (angle live tool can be mounted)
Measuring sensor in x-axis for thermal compensation
Area detection function against overlays
The thermal sensor is connected to the machine body, it makes measurements and provides compensation.

Technical Machine Benefits

Cnc lathe with c and y axis, single turret and sub spindle
Main and sub spindle are built-in motor
Main chuck: 8”
Sub chuck: 6”
Chip conveyor (lns brand with inverter system)
Parts conveyor
6 bar coolant pump
20 bar high pressure pump
8 sets living tool
Bar capacity: 65 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
