TSUGAMI - M08SYE-IIPL-TUR-TSU-2017-00001

Name: TSUGAMI M08SYE-II
Brand: TSUGAMI
SKU: PL-TUR-TSU-2017-00001
Price: 12028400 INR
Availability: InStock

Rs. 12,028,400

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used TSUGAMI M08SYE-II For Sale | gindumac.com

Show in original language

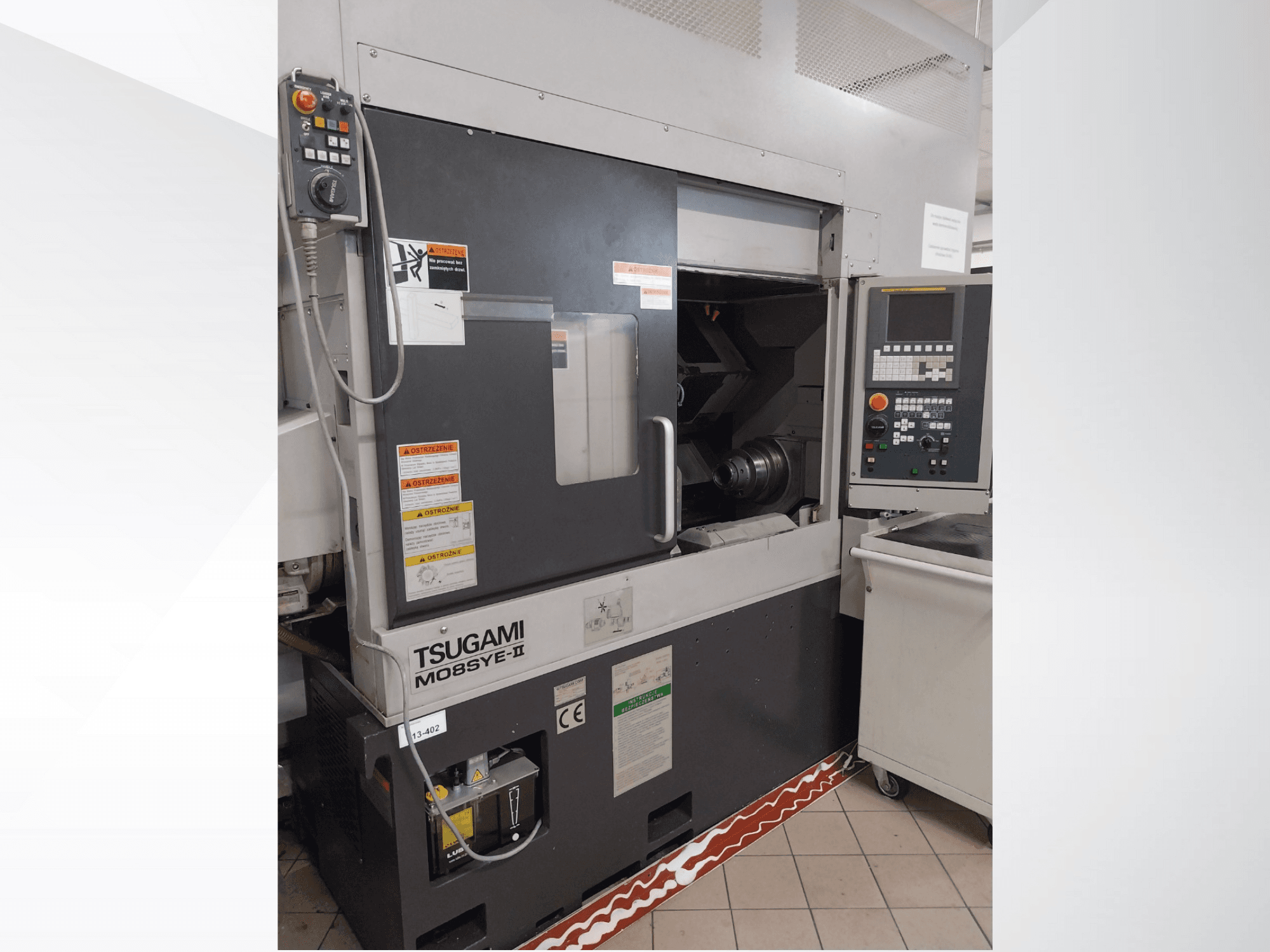

This 4-axis TSUGAMI M08SYE-II turn-mill centre was manufactured in 2017. It features a maximum machinable diameter of 280 mm, a machining length of 380 mm, and dual spindle speeds up to 4500 rpm. Equipped with a 12-station turret and a robot for part feeding, it offers efficient processing capabilities. Consider the opportunity to buy this TSUGAMI M08SYE-II turn-mill centre. Contact us for more information about this machine.

Overview

brand: TSUGAMI
year: 2017
MODEL: M08SYE-II
production hours: 25919
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - TSUGAMI M08SYE-II

General Data

Measurements width: 1850 mm
Measurements depth: 2470 mm
Measurements height: 1930 mm
Machine weight: 6000 kg

Control Unit

Brand: FANUC
Model: Series 0i-TF

Movement

X-AXIS Movement: 221 MM
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Rapid traverse: 12 m/min
Z-AXIS Movement: 400 MM
Z-AXIS Rapid traverse: 27 m/min

Additional Information

Additional information

Maximum machinable diameter: 280 mm / 65 mm (bar)
Maximum machining length: 380 mm
Number of turret stations: 12
Max. speed of driven tool: 5000 rpm
Driven tool motor power: 1.5 / 3.7 kW
Main spindle speed: 4500 rpm
Main spindle bore / bearing diameter: 73 / 100 mm
Main spindle motor: 7.5 / 11 kW
Back spindle speed: 4500 rpm
Back spindle bore / bearing diameter: 59 / 80 mm
Back spindle motor: 5.5 / 7.5 kW
Coolant pump power: 520 / 815 W (50 / 60 Hz)
Required electric capacity: 30 kVA
Equipped with a robot that feeds raw parts for processing
Full machine documentation + service reports available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
