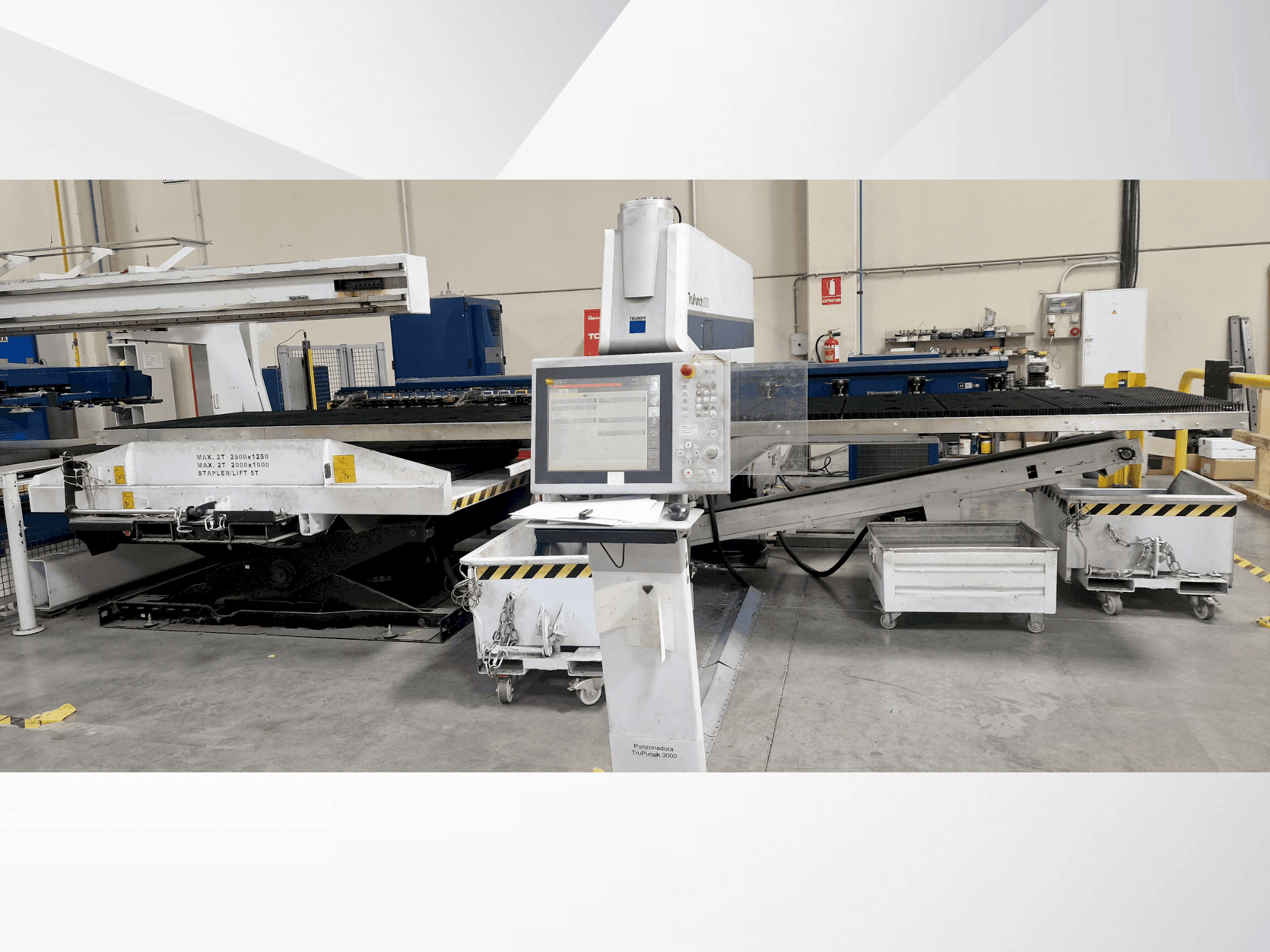

Front view of TRUMPF Trupunch 3000  machine

TRUMPF - Trupunch 3000ES-PUN-TRU-2015-00001

Rs. 15,616,400
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This punching machine was manufactured in 2015 by TRUMPF and is a model Trupunch 3000. It features a maximum sheet format of 2500 x 1250 mm and can handle sheet thicknesses up to 6.4 mm. The machine boasts a high punching force of 180 kN and a rapid stroke rate of 1000 strokes/min for punching. It includes advanced features like a Bosch Rexroth MTX CMP70 CNC control, a 17" TFT touchscreen, and USB interface. For more information about this punching machine, please reach out to us.

Overview

  • brand: TRUMPF
  • year: 2015
  • MODEL: Trupunch 3000
  • application type: Bending & Punching
  • Location: Spain
  • machine type: CNC Punching Machine
  • availability: 24 02 2025
  • control unit brand: TRUMPF

Technical Information - TRUMPF Trupunch 3000

Control Unit

  • Brand: TRUMPF

Main drive

  • Punching force: 180 kN
  • Maximum sheet thickness: 6.4 mm
  • Number of axis: 2

Movement

  • X-AXIS Movement: 2500 mm
  • X-AXIS Working Feed: 90 m/min
  • Y-AXIS Movement: 1250 mm
  • Y-AXIS Working Feed: 60 m/min

Workpiece

  • Workpiece weight: 150 kg

    Additional equipment

    • - safety light bars (X x Y): 6550 x 5000 mm (32.75 m²)
    • - Stopa SheetMaster
    • - Color monitor, TFT: 17" Touchscreen
    • - USB interface

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max punching speed: 1000 strokes/min
        • - X/y simultaneous speed: 108 m/min
        • - C-axis speed: 330 strokes/min
        • - Linear tool storage: number of tools / clamps: 18/2
        • - Part evacuation: max. Part size (with residual grid): 500 x 500 mm, max. Part size (without residual grid): 500 x 500 mm
        • - High punching speed of 1000 strokes/min
        • - Large working area of 2500 x 1250 mm
        • - Punching and hold-down force: max. Hold-down force: 20 kn
        • - Max. Stroke rate: marking: 2500 strokes/min
        • - Threading: 330 strokes/min
      • Qualitative Machine Benefits:
        • - Based on bosch rexroth: mtx cmp70
        • - Efficient operation with multitool change time of 0. 3 s
        • - Tool size: punching: size 1, 2, forming: size 1, 2, 5
        • - Max. Contour size: punching: 76. 2 mm, forming: 100 mm
        • - Max. Acceleration: x-axis: 12 m/s², y-axis: 6 m/s²
        • - Precision: minimum programmable movement: 0. 001 mm
        • - Nc program memory capacity: 80 gb
        • - Power connection: approx. Power consumption: 5. 9 kw, electrical connection: approx. 18 kva/50 hz
        • - Compressed air connection: 6 ±1 bar, compressed air consumption: 10 m³/h

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
