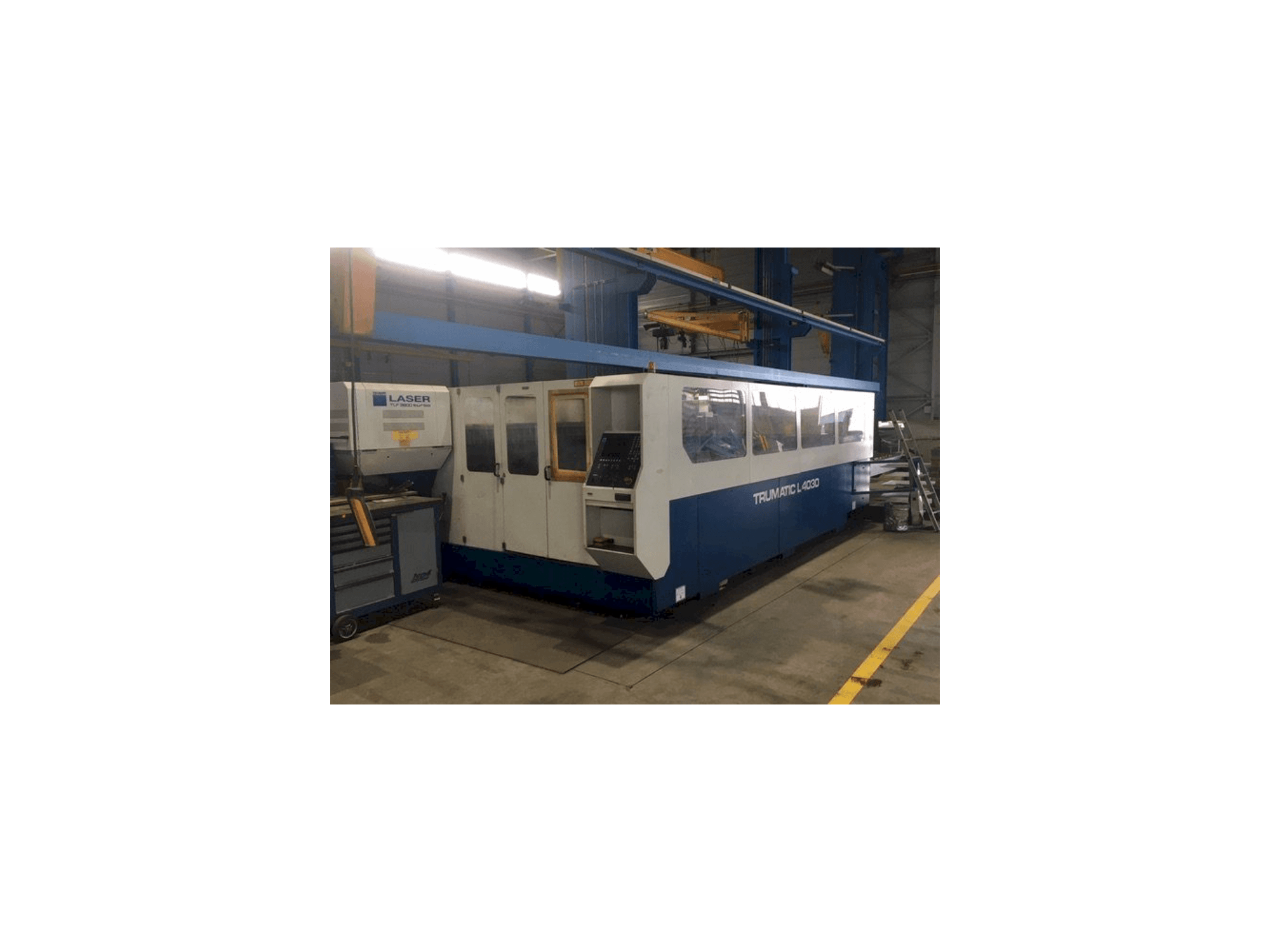

Front view of Trumpf Trumatic L4030 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic L4030

Photo Gallery

TRUMPF - Trumatic L4030DE-LAS-TRU-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf Trumatic L4030 Laser Cutting Machine

Show in original language

This Trumpf Trumatic L4030 Laser Cutting Machine was built in 1999 in Switzerland. Equipped with a SIEMENS SINUMERIK 840 D Control unit, this machine performs with a laser power of 3.8 kW.

Overview

brand: TRUMPF
year: 1999
MODEL: Trumatic L4030
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L4030

General Data

Measurements width: 11500mm
Measurements depth: 6000 mm
Measurements height: 2000 mm
Machine weight: 16000 kg

Control Unit

Model: SINUMERIK 840 D
Brand: SIEMENS

Main drive

Laserpower: 3.8 kW
Laser brand: TLF 3800 Turbo

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 115 mm

Max Material thickness

Steel: 15 mm
Stainless steel: 12 mm
Aluminum: 10 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
