Trumpf Trumatic 600L Laser Cutting and Punching Hybrid Machine

Show in original language

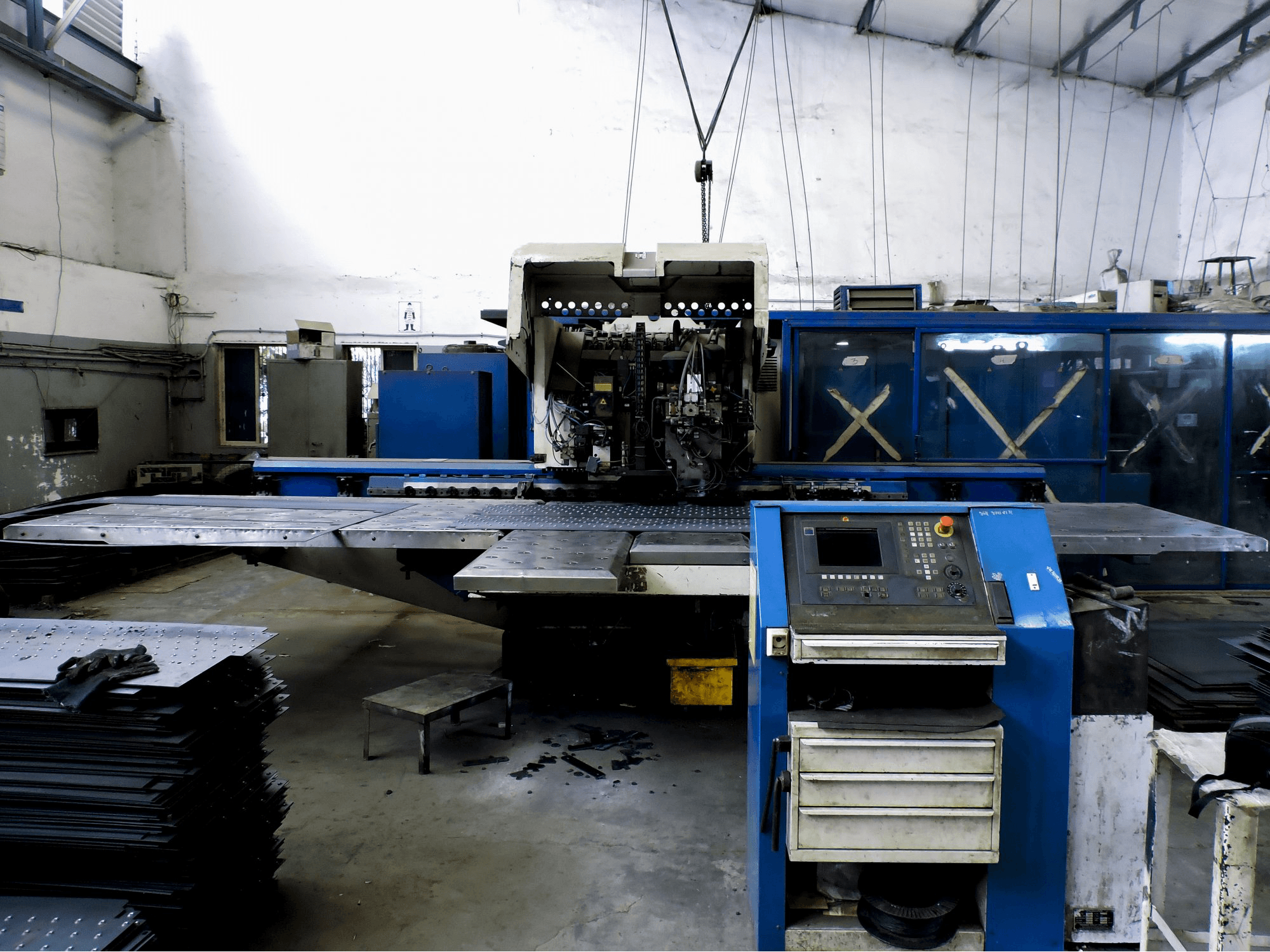

This Trumpf Trumatic 600L is a Laser Punch Combination Machine that was built in the year 1997. This machine has a working history of 48000 hours, and counts furthermore with 61269 laser hours and 11113 beam hours. In the past, this Trumatic 600L has been working mostly on 3mm thick mild steel for Job shop tasks and is controlled via a Siemens SINUMERIK 840D Control unit with an Ethernet interface.

Overview

brand: TRUMPF
year: 1997
MODEL: Trumatic 600L
production hours: 48000
application type: Punching
Location: India
machine type: Laser Punch Combination Machine
availability: Sold
control unit brand: SIEMENS
GINDUMAC ID: IN-PUN-TRU-1997-00001

Technical Information

General Data

Measurements width: 9000 mm
Measurements depth: 9000 mm
Measurements height: 2600 mm
Machine weight: 13000 kg

Control Unit

Brand: Siemens
Model: SINUMERIK 840D
Interface: Ethernet

Main drive

Laserpower: 1.5 kW
Laser type: Co2
Punching force: 220 kN
Maximum sheet thickness: 3 mm
Laser brand: Trumpf

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm
Z-AXIS Movement: 110 mm

Tools

Number of index: 12
Number of stations: 12
Max tool diameter: 76.2 mm

Max Material thickness

Steel: 10 mm
Stainless steel: 6 mm
Aluminum: 4 mm

Machine specific data

Size of cutting head 1: 5"

Media

Main electronic connection: 380 V
Power consumption: 65 kVA
Air pressure: 6 bar

Additional equipment

- Stabilizer
- Compressor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
