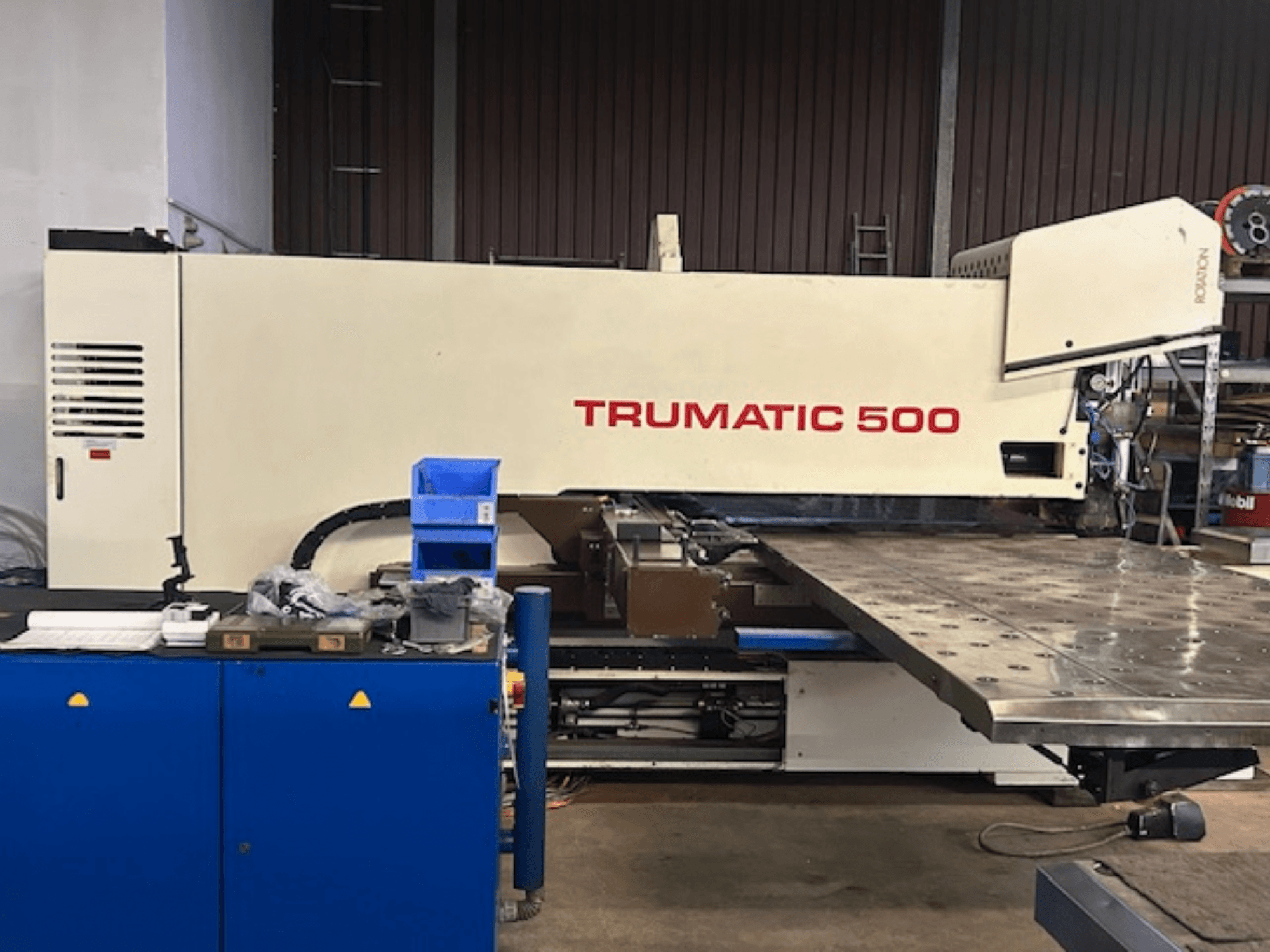

CNC punching machine manufactured in 1999. This TRUMPF TRUMATIC 500 features a maximum punching force of 220 kN and a working area of 3,000 mm by 1,600 mm. It is equipped with a Bosch control system and is multitool capable. If you are looking to get high-quality punching capabilities, consider the TRUMPF TRUMATIC 500 machine we have for sale. Contact us for further details.
Overview
- brand: TRUMPF
- year: 1999
- MODEL: TRUMATIC 500
- production hours: 51135
- application type: Punching
- Location: Germany
- machine type: CNC Punching Machine
- control unit brand: BOSCH
Technical Information - TRUMPF TRUMATIC 500
Control Unit
- Control Brand: BOSCH
Dimensions
- Machine Weight: 13800 kg
Movement
- Number of Axes: 2
- X-axis Travel: 3000 mm
- Y-axis Travel: 1600 mm
Technical Specification
- Punching Force: 220 Kn
Additional Information
Programming system: Trumagraph
Supply voltage: 400 V / 50 Hz
Connected load: 19 kVA
Control voltage: 24 V
Required fuse protection: 3 × 35 A
Compressed air requirement: 6 bar
Multitool capable
Partially overhauled
Operating hours (mechanical counter): 51,135 h
Additional equipment
2 tools with cassette (for commissioning)
Documentation available
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
