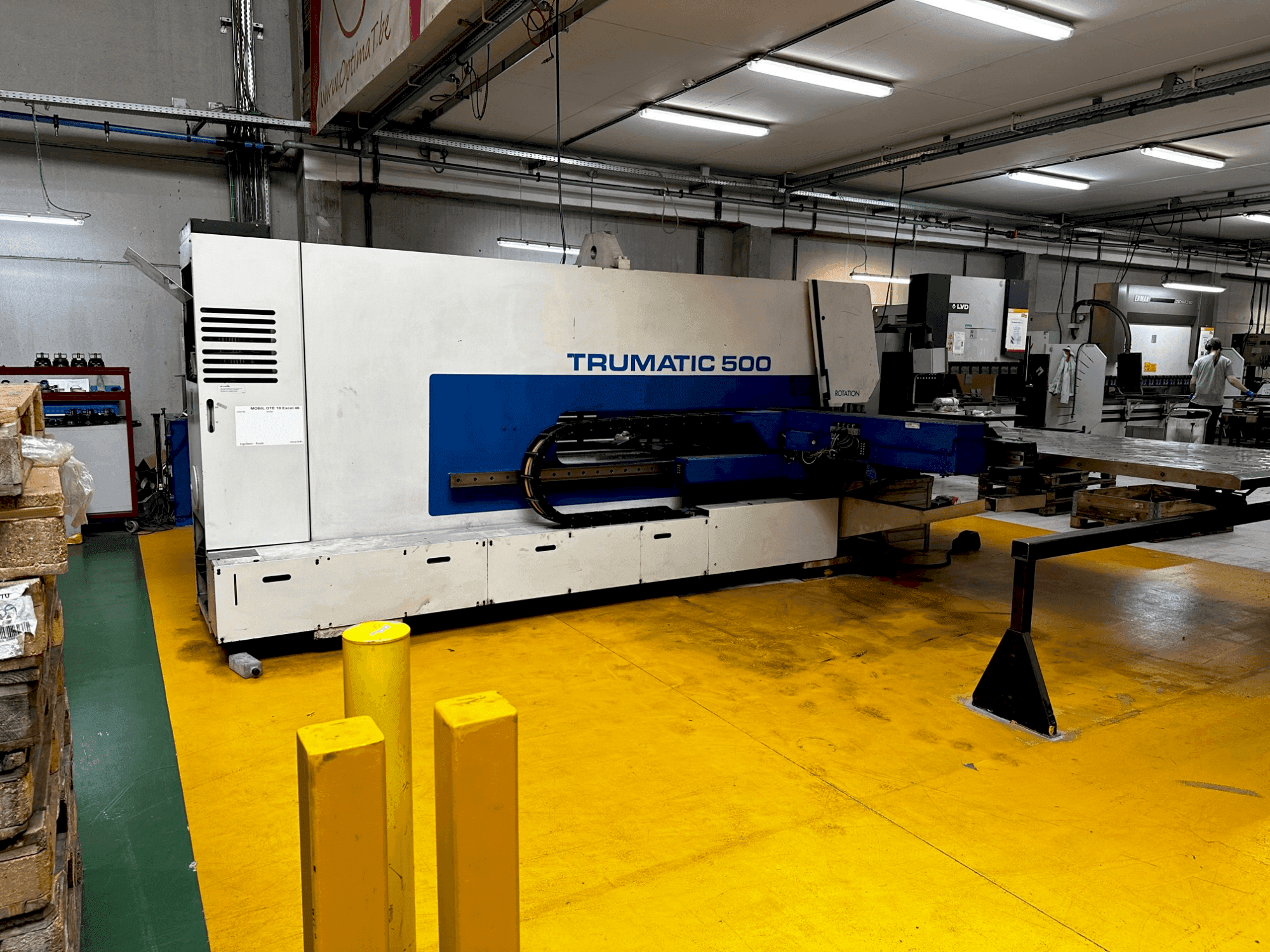

Front view of TRUMPF Trumatic 500  machine

TRUMPF - Trumatic 500BE-BEN-TRU-1996-00001

Rs. 1,069,700
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This TRUMPF Trumatic 500 was manufactured in 1996. A robust CNC punching machine, it features a press force of 220kN and can handle sheet sizes up to 3000x1500mm. It includes 6 cartridges, 2 multitools, and 6 tools, enhancing its versatility. Ideal for those looking to expand their production capabilities with a reliable machine. For more information about this CNC punching machine, please reach out to us.

Overview

  • brand: TRUMPF
  • year: 1996
  • MODEL: Trumatic 500
  • application type: Punching
  • Location: Belgium
  • machine type: CNC Punching Machine
  • availability: Immediately

Technical Information - TRUMPF Trumatic 500

General Data

  • Measurements width: 5800 mm
  • Measurements depth: 6400 mm
  • Measurements height: 2100 mm
  • Machine weight: 13800 kg

Controller

  • Brand: Trumagraph CC 220X

Movement

  • X-AXIS Movement: 3000 MM
  • Y-AXIS Movement: 1500 MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Punching force: 220 kn
      • - Max. Sheet size: 3000x1600mm / max. Sheet thickness: 8mm
      • - Automatic part sorting: max. 500x500mm
      • - X-axis speed: 90m/min / y-axis speed: 60m/min / c-axis: 360 deg/s
      • - Incl: 6x cartridge, 2x multitool, 6x tool

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
