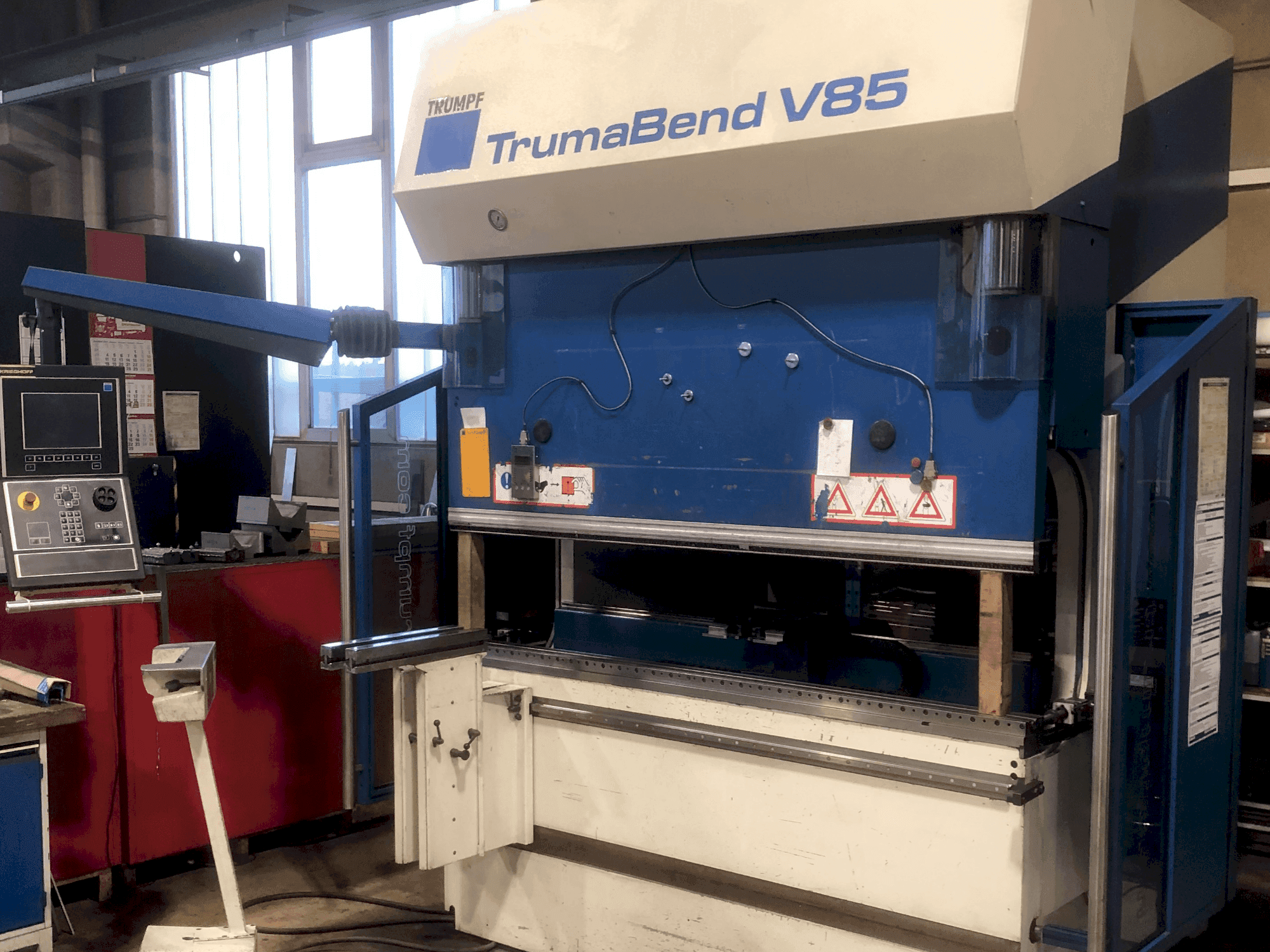

Front view of TRUMPF TrumaBend V85X  machine

TRUMPF TrumaBend V85X

TRUMPF - TrumaBend V85X

2003

Rs. 4,282,500

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This TRUMPF TrumaBend V85X Bending machine was manufactured in 2003 in Germany. It has a press force of 850 kN and a bending length of 2050 mm. Free upright clearance is 1750 mm. The standard equipment covers a sturdy machine frame, pressure beam with high bending strength and CNC backgauge with rack and pinion drive for X- and R-axis. As special features the machine has an increased installation height and stroke by 150 mm each to 535 mm, a 5-axes backgauge system, a hydraulic and hardened upper tool clamping, a hydraulic lower tool clamping, CNC crowning, a BendGuard safety device, a support front console and control cabinet climatization (for 2-, 4-axis backgauge systems). It comes with a bending tool package. License for software, ToPs 600 for bending, included. See attached original tech specs positions as PDF (German).

Overview

  • brand: TRUMPF
  • year: 2003
  • MODEL: TrumaBend V85X
  • application type: Bending
  • Location: Germany
  • machine type: Bending machines
  • availability: Immediately
  • control unit brand: TRUMPF
  • GINDUMAC ID: DE-BEN-TRU-2003-00005

Technical Information

Control Unit

  • Brand: TRUMPF
  • Model: 2D graphic control
  • Interface: 10.4" color screen

Main drive

  • Pressing force: 850 kN
  • Bending length: 2050 mm
  • Crowning available: Yes
  • Number of axis: 5

    Additional equipment

    • - Tool Package
    • - Software ToPs 600 for bending: License included

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Free upright clearance 1750 mm
        • - Installation height 385 mm
        • - Electrical equipment for three-phase current 400 v / 50 hz
        • - Modern block hydraulics
        • - Cnc backgauge with rack and pinion drive, for x- and r-axis, danger-free movement of the stop fingers from the front
        • - "modufix" upper tool holder system, manual
        • - Bottom tool holder for ev dies, manual clamping, displacement programmable
        • - Safety device
      • Qualitative Machine Benefits:
        • - Installation height and stroke increased by 150 mm each to 535 mm
        • - Back gauge system 5 axes
        • - Hydraulic and hardened upper tool clamping
        • - Hydraulic lower tool clamping
        • - Cnc crowning
        • - Bendguard safety device
        • - Support console
        • - Front control cabinet
        • - Climatization (for 2-, 4-axis backgauge systems)
        • - Preparation for acb®

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
