➤ Used TRUMPF TrumaBend V85S Press For Sale | gindumac.com

Show in original language

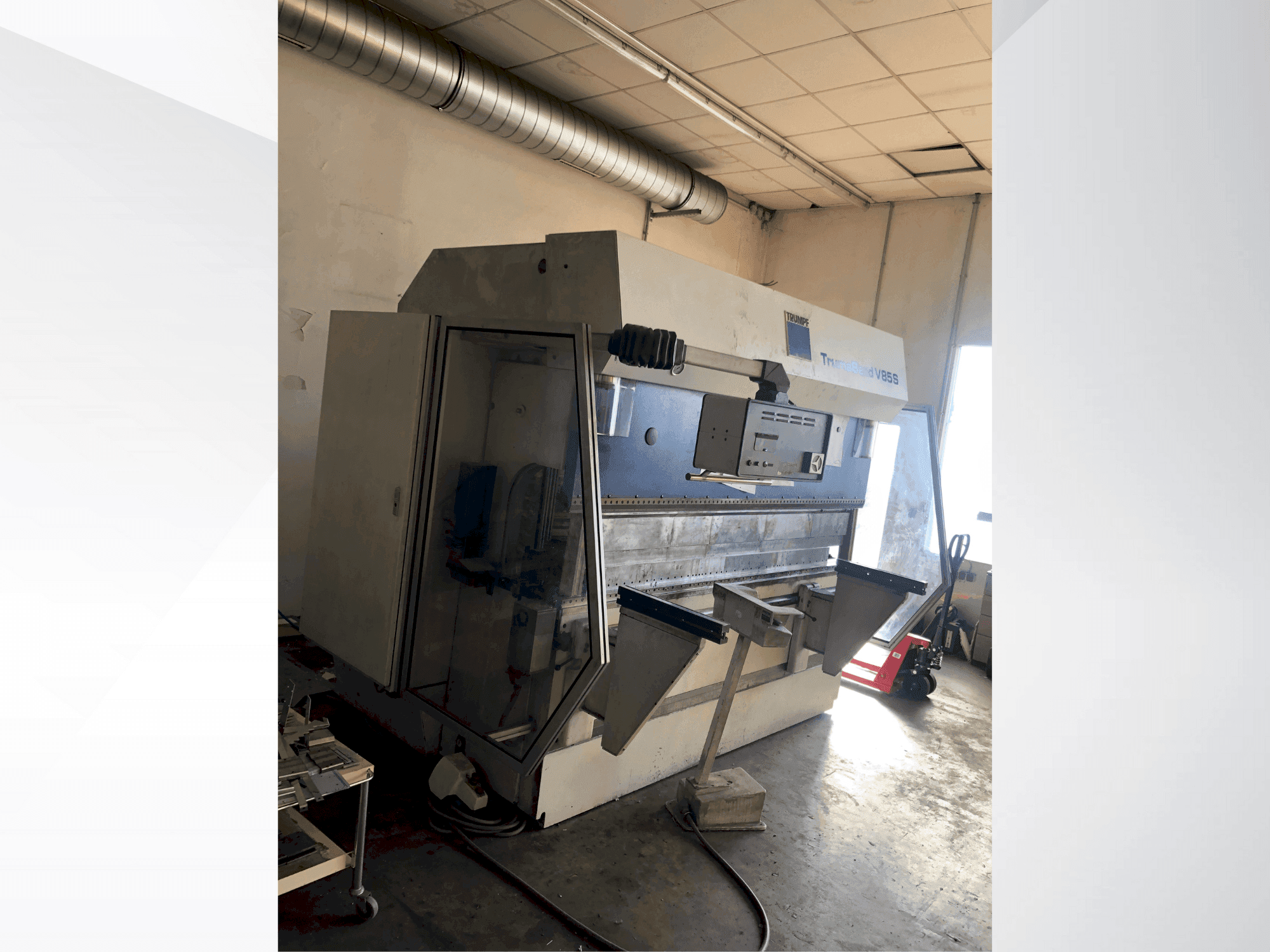

This TRUMPF TrumaBend V85S was manufactured in 2000. A robust press brake with a pressing force of 85 tonnes and a bending length of 2,500 mm. It has been operated for 44,455 hours and can handle substantial workloads with a stroke of 215 mm. Weighing approximately 8,750 kg, the TRUMPF TrumaBend V85S machine we have for sale is built to last. Contact us for further details.

Overview

brand: TRUMPF
year: 2000
MODEL: TrumaBend V85S
production hours: 44455
application type: Bending
Location: Austria
machine type: Press Brake

Technical Information - TRUMPF TrumaBend V85S

Dimensions

Machine Depth: 1950 mm
Machine Height: 2375 mm

Technical Specification

Bending Length: 2550 mm
Max. Stroke: 365 mm
Pressing Force: 850 Kn

Additional Information

Machine Benefits

Technical Machine Benefits

Distance between the columns: 2100 mm
X-axis: travel 600mm / positioning accuracy 0. 04mm / travelling speed 0-500 mm/s
Y-axis travel 250mm / positioning accuracy 0. 08mm / travelling speed 0-300mm/s / stroke 215mm inclination +-10mm max. / stop range x 860mm
Z-axis travel distance 1970mm / positioning accuracy 1. 00mm / travelling speed 0-1000 mm/s
Free stand clearance 2260mm
Throat 410mm
Worktable width 120mm / installation height 385mm / working height with lower tool 100mm: 1050mm
Y rapid speed 200 mm/s / y working speed 1-10mm/s / y retraction speed 135 mm/s

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
