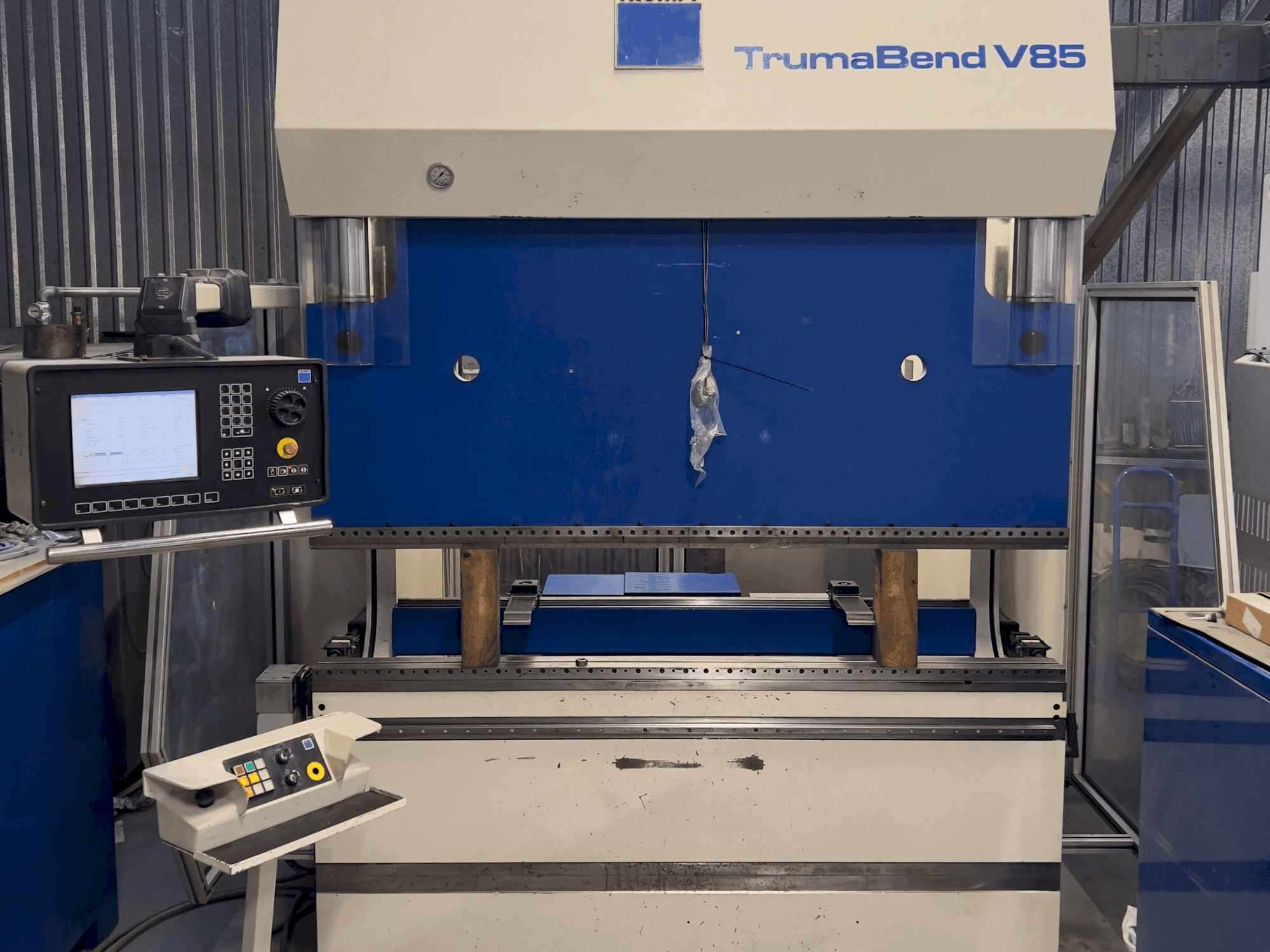

Front view of TRUMPF TrumaBend V85 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TrumaBend V85

Photo Gallery

TRUMPF - TrumaBend V85LV-BEN-TRU-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF TrumaBend V85 Press For Sale | gindumac.com

Show in original language

This TRUMPF TrumaBend V85 press brake was manufactured in 2001. It features a pressing force of 85 tons, a stroke of 365 mm, and a bending length of 2050 mm. Equipped with DALEM CNC 3D software, it offers high working speed and precise control. Additional features include hydraulic clamping and motorized CNC back gauge systems. Consider the opportunity to buy this TRUMPF TrumaBend V85 press brake. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 2001
MODEL: TrumaBend V85
production hours: 35900
application type: Bending
Location: Latvia
machine type: Press Brake
control unit brand: TRUMPF

Technical Information - TRUMPF TrumaBend V85

Control Unit

Control Brand: TRUMPF
Control Model: n/a

Dimensions

Machine Depth: 2700 mm
Machine Height: 2900 mm
Machine Weight: 9050 kg

Technical Specification

Bending Length: 2050 mm
Max. Stroke: 365 mm
Pressing Force: 850 Kn

Additional Information

Software: DALEM CNC 3D with extensive tool and program library
Max. operating pressure: 340 bar
Safety distance: 96 mm
Stopping time: 60 ms
Increased installation height / piston stroke
Motorized CNC back gauge system (X-axis)
Motorized CNC adjustment of back gauge height (R-axis)
Motorized CNC positioning of stop fingers (Z-axes)
Pneumatic CNC-controlled die displacement (I-axis)
Hydraulic clamping, top and bottom WILA TRUMPF
Integrated lighting inside working area
Side and rear protection (doors, laser-type safety)
Two foot pedals for flexible operation
Table support arms: 2 pcs.
High working speed with precise control
Power supply: 3 × 400 V / 50 Hz
Connected load: 13.0 kVA
Nominal current: 32.5 A
Control voltage: 24 V
Air connection: 6 bar

Additional equipment

Original manuals and wiring diagrams

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
