➤ Used TRUMPF TrumaBend V85 Press For Sale | gindumac.com

Show in original language

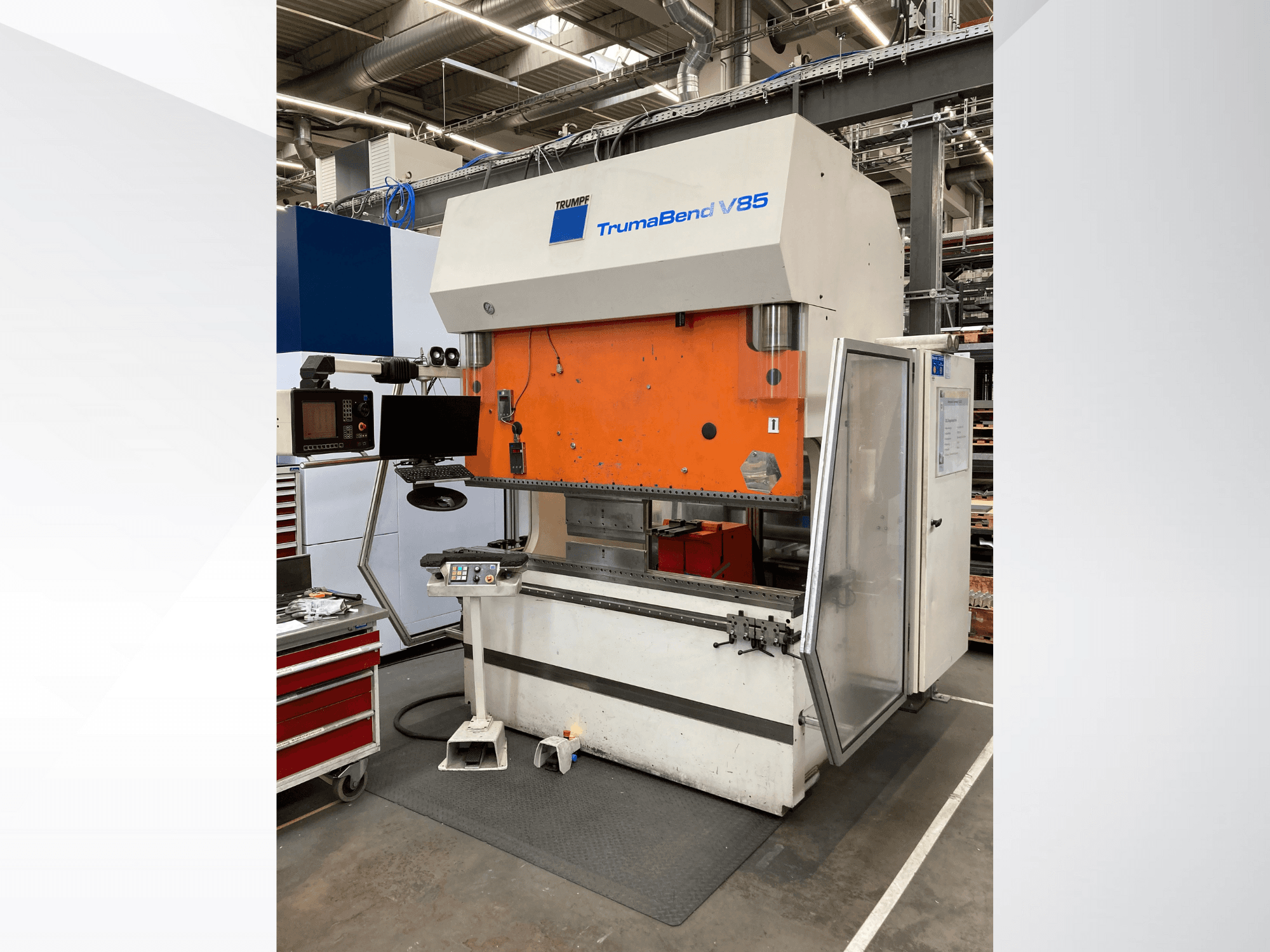

This 6-axis TRUMPF TrumaBend V85 press brake was manufactured in 2002. It features an 850 kN press force, 2050 mm bending length, and a CNC backgauge system for precise control. The machine includes a robust all-steel welded construction and an electro-hydraulic top drive. Consider the opportunity to buy this TRUMPF TrumaBend V85 press brake if you are looking to get high-quality bending capabilities. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 2002
MODEL: TrumaBend V85
production hours: 2324
application type: Bending
Location: Germany
machine type: Press Brake
Available from: 09/12/2025
control unit brand: TRUMPF

Technical Information - TRUMPF TrumaBend V85

Control Unit

Brand: TRUMPF

Additional Information

Additional information

Press Force: 850 kN
Bending Length: 2050 mm
Clearance Between Side Frames (Free Stand Passage): 1750 mm
Installation Height: 385 mm
Electrical Equipment: For three-phase current
Voltage/Frequency: 400 V / 50 Hz
Machine Equipment Extension: Increase of installation height and stroke by 150 mm each, up to 535 mm
Backgauge System Extension: 6-axis backgauge system with control cabinet air conditioning
Tool Clamping Extensions: Hydraulic upper and lower tool clamping
Crowning Extension: CNC crowning
Safety Device Extension: Footswitch
Material Handling Extension: Support console, front
Further Options: Preparation for ACB (Automatically Controlled Bending), 3D control visualization with color display and programming, network, working space lighting, tool cabinet

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
