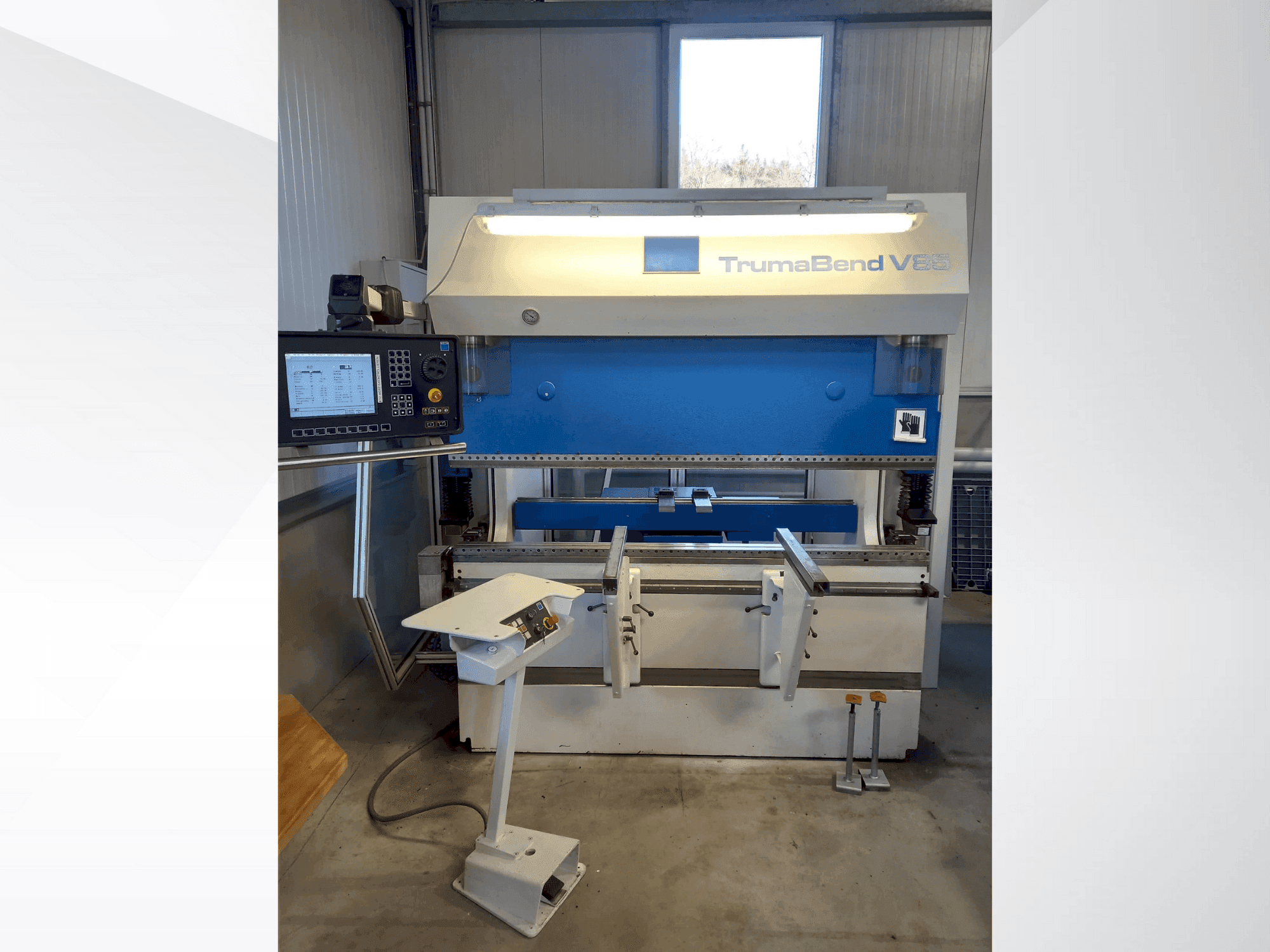

This 5-axis TRUMPF TrumaBend V85 press brake was manufactured in 2001. It features an electro-hydraulic ram drive, CNC backgauge system, and a modern protective cover. The machine includes a 4-axis back gauge system and both hydraulic upper and lower tool clamping. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V85 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: TRUMPF
- year: 2001
- MODEL: TrumaBend V85
- application type: Bending
- Location: Austria
- machine type: Press Brake
Technical Information - TRUMPF TrumaBend V85
Movement
- Number of Axes: 5
Additional Information
Additional equipment
- Top drive concept in two-cylinder design y1/y2
- Electro-hydraulic ram drive with proportional valve technology
- Ram travel measuring system with spring deflection compensation via glass scales
- Modern block hydraulics
- Cnc backgauge system
- Safe finger adjustment from the front
- Self-centring, manual, hardened upper tool holder for vertical tool change
- Hardened, manual lower tool holder
- Programme-controlled lower tool displacement (i-axis) for 2 positions
- Modern protective cover
Machine Benefits
Technical Machine Benefits
- Oil cooler
- Working width 2. 000mm
Extra Information
Special Equipment: Back gauge system 4 axes (X, R, Z1, Z2) Hydraulic and hardened upper tool clamping (Wila system) Hydraulic lower tool clamping (Wila system) CNC crowning BendGuard safety device 2 pcs. Support brackets Network No tools included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
