➤ Used TRUMPF TrumaBend V320 Press For Sale | gindumac.com

Show in original language

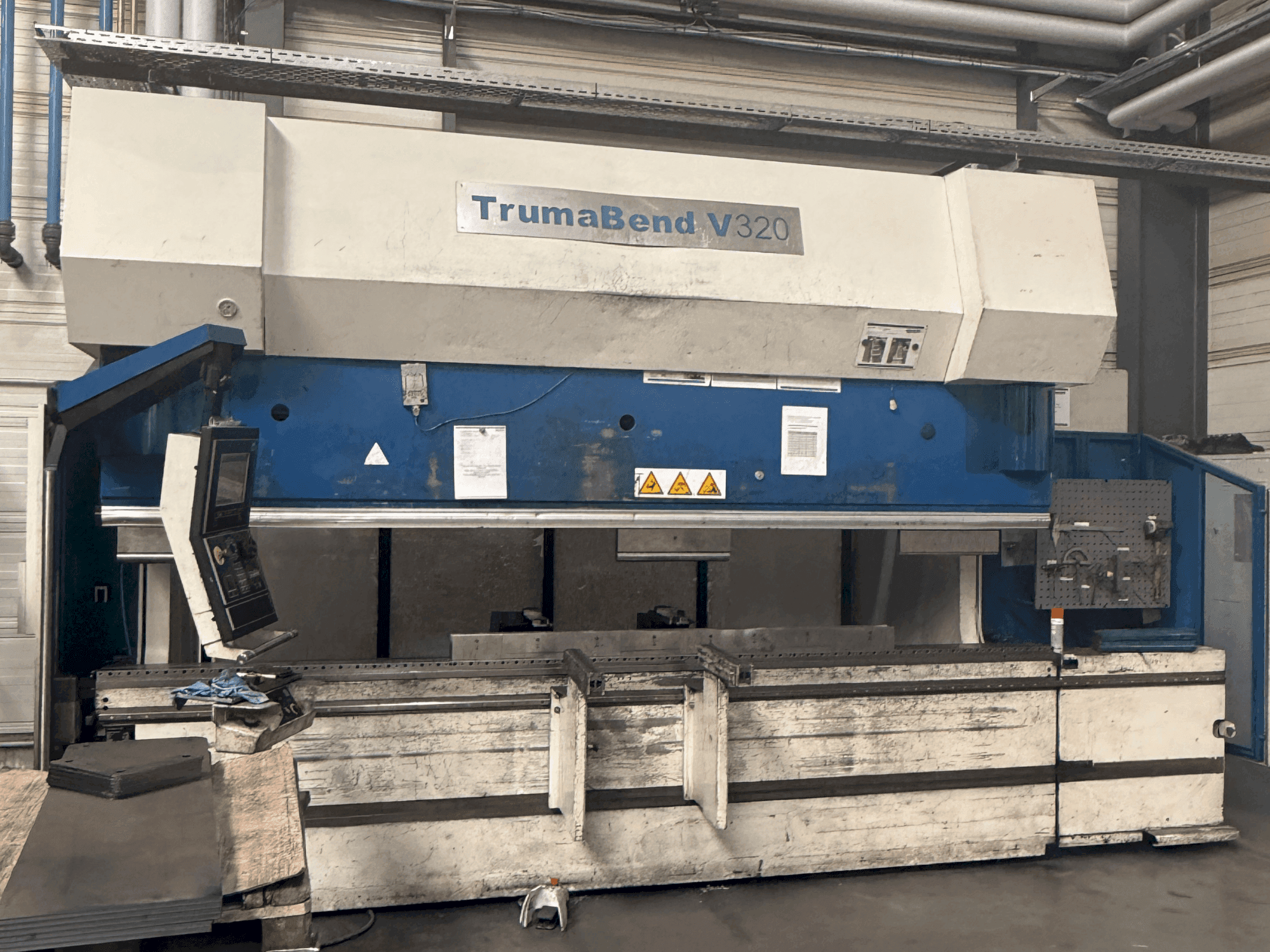

This TRUMPF TrumaBend V320 press brake was manufactured in 2003. It features a press force of 3200 kN and a bending length of 4080 mm. Equipped with a 2D graphic control DA 69 on a Windows platform and a 10.4" color screen, it ensures precision and ease of use. The machine includes a sturdy all-steel frame and electro-hydraulic top drive. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 2003
MODEL: TrumaBend V320
application type: Bending
Location: Germany
machine type: Press Brake

Technical Information - TRUMPF TrumaBend V320

General Data

Machine weight: 24000 KG

Main drive

Pressing force: 3200 kN
Bending length: 4080 mm

Additional Information

Additional equipment

Backgauge system: 5-axis backgauge system with control cabinet air conditioning
Safety device: BendGuard safety device
Foot switch

Machine Benefits

Technical Machine Benefits

Sturdy machine frame with welded all-steel construction
Pressure beam with high bending strength
Upper tool holder system "modufix", manual
Lower tool holder for ev dies, manual clamping, movement programmable
Cnc backgauge with rack and pinion drive for x and r axes
Safe movement of the stop fingers from the front
Electro-hydraulic top drive via proportional valves
Modern block hydraulics
Control system: 2d graphic control da 69 on windows with 10. 4" color screen

Extra Information

Electrical equipment: For three-phase current 400 V / 50 Hz Paint finish: Textured paint white RAL 9002 / gentian blue RAL 5010 Material handling: 2x support consoles, front; 1x bending aid with 900 mm parking position; Table extension for base table / additional table Table Tool clamping: Hydraulic and hardened upper tool clamping; Hydraulic lower tool clamping Crowning: CNC crowning Workpiece Free column clearance: 3680 mm Installation height: 535 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
