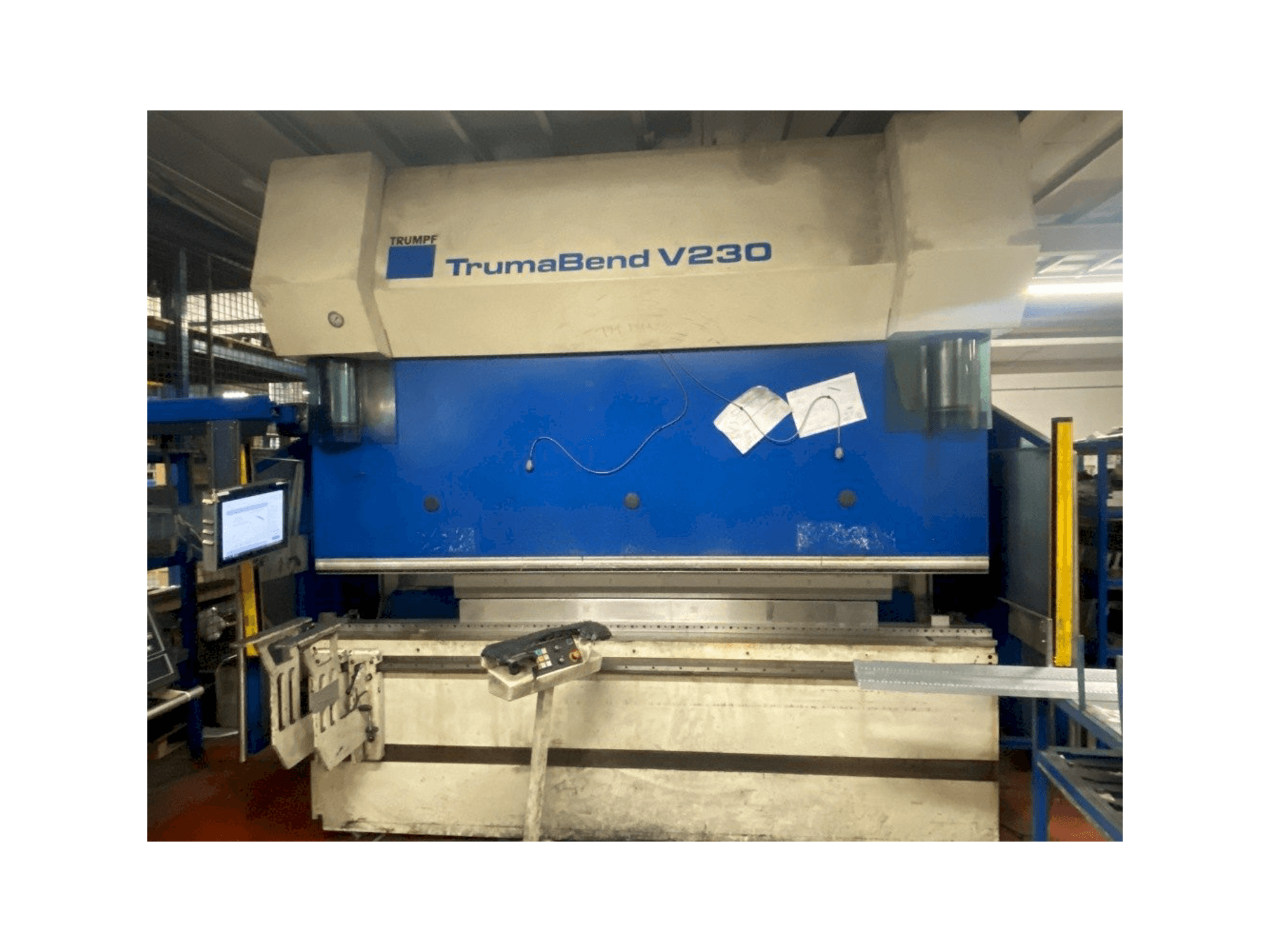

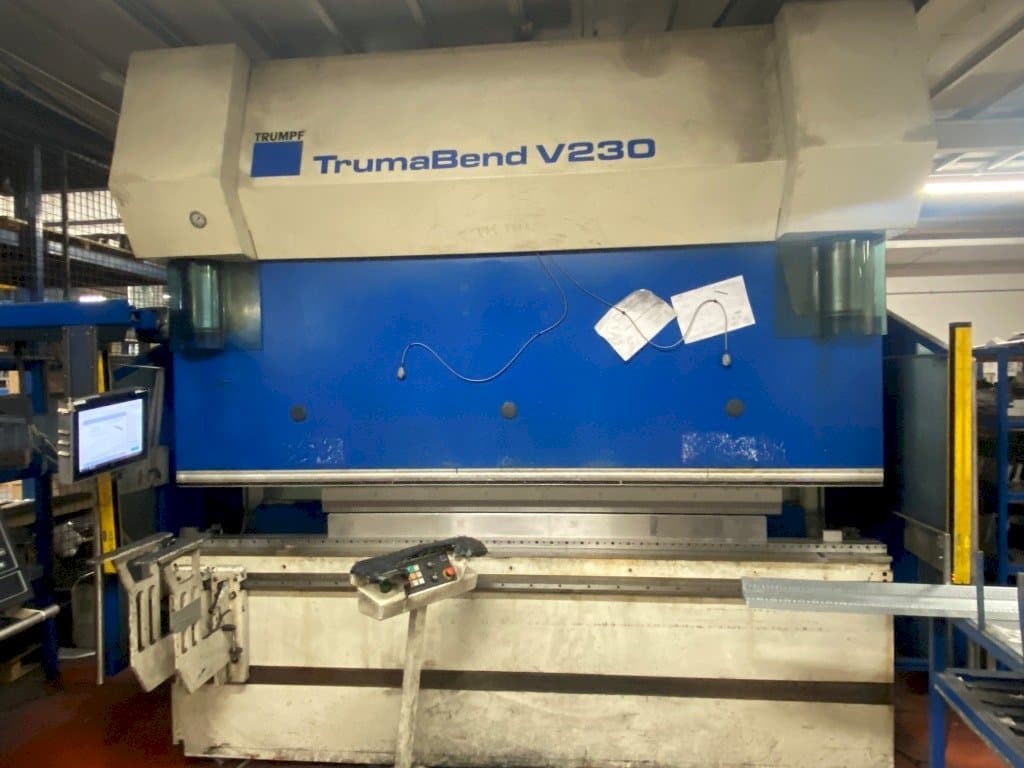

Trumpf TrumaBend V230 Bending Machine

Show in original language

This Trumpf TrumaBend V230 Bending Machine from 2003 was built in Germany. Operated through a DELEM DA69 control unit. This 7 axis machine can perform with a pressing force of 2300 kN, bending length of 3060 mm.

Overview

brand: TRUMPF
year: 2003
MODEL: TrumaBend V230
application type: Bending
Location: Ireland
machine type: Press Brake
availability: Sold
control unit brand: DELEM

Technical Information - TRUMPF TrumaBend V230

General Data

Measurements width: 3660 mm
Measurements depth: 2310 mm
Measurements height: 3095 mm
Machine weight: 18210 kg

Control Unit

Model: DA69
CNC main language: English
CNC language customizable: Yes
Brand: DELEM

Main drive

Pressing force: 2300 kn
Bending length: 3060 mm
Number of axis: 7

Workpiece

Workpiece x: 600 mm
Workpiece y: 3060 mm

Media

Main electronic connection: 400 V
Power consumption: 27,2 kva

Additional Information

Machine history

Material type: Mild steel
Material thickness: 2 mm
End product: Enclosures

Machine Benefits

Technical Machine Benefits:
- - 7 axis machine y1,y2,x,delta x,z1,z2,r
- - 5 axis back gauge x,delta x,z1,z2,r
- - Cnc crowning
- - Safety guards
- - Distance between side frames: 260mm

Extra information

- No Tooling Included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
