TRUMPF - Trumabend V130DE-BEN-TRU-2004-00007

Name: TRUMPF Trumabend V130
Brand: TRUMPF
SKU: DE-BEN-TRU-2004-00007
Price: 2371950 INR
Availability: InStock

Rs. 2,371,950

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF Trumabend V130 Press For Sale | gindumac.com

Show in original language

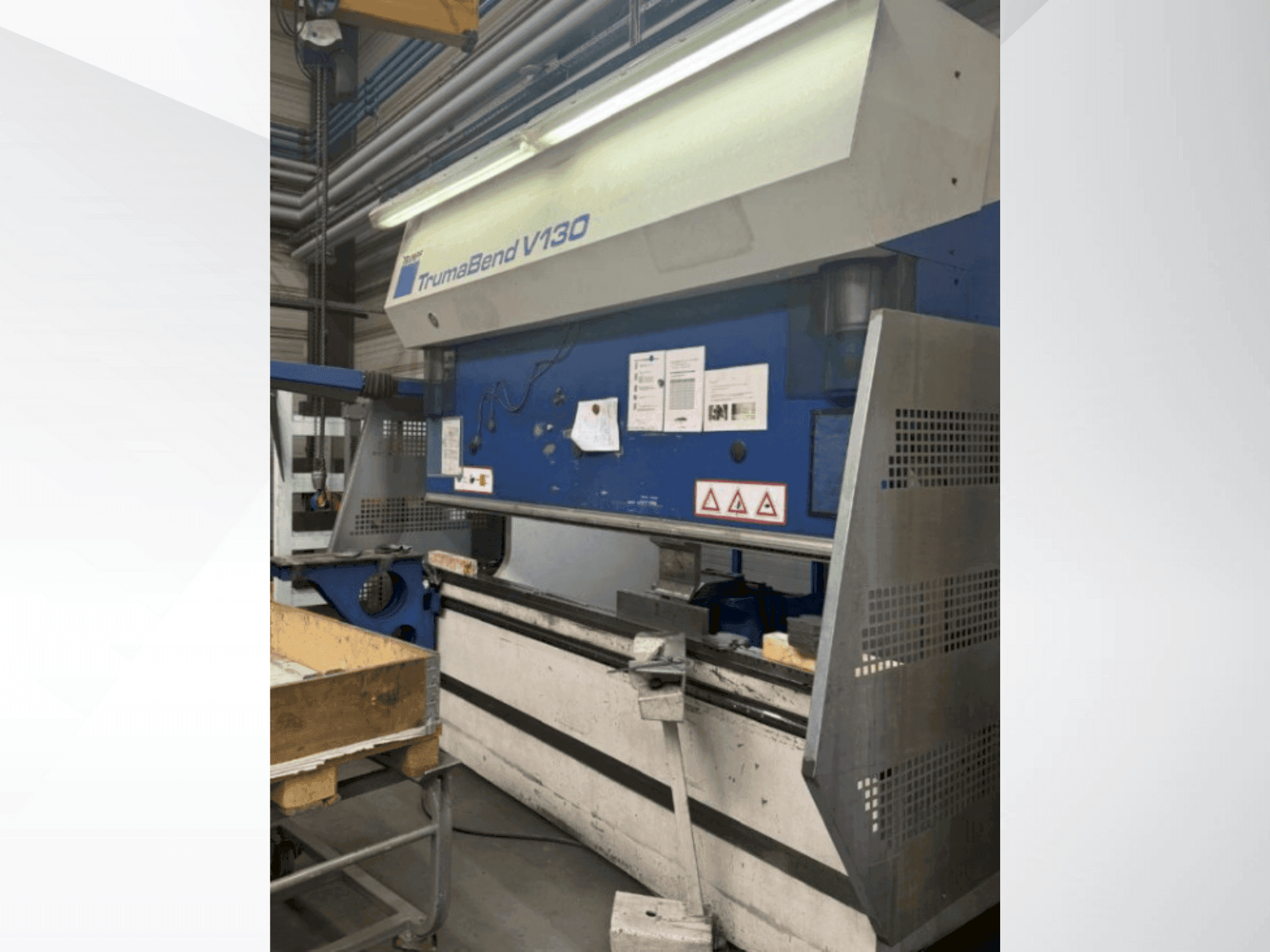

This TRUMPF Trumabend V130 press brake was manufactured in 2004. It features a sturdy all-steel frame, electro-hydraulic top drive, and a 6-axis backgauge system. Equipped with a CNC crowning and a 3D control system with a color display, it ensures precision and ease of use. Consider the opportunity to buy this TRUMPF Trumabend V130 press brake. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 2004
MODEL: Trumabend V130
application type: Bending
Location: Germany
machine type: Press Brake

Technical Information - TRUMPF Trumabend V130

Additional Information

Additional equipment

Standard Equipment: Sturdy machine frame with welded, all-steel construction / Pressure beam with high bending strength / Electro-hydraulic top drive via proportional valves / Modern block hydraulics / Modufix upper tool holder system, manual and hardened / Lower tool holder for EV dies, manual clamping, programmable displacement / Safety device / CNC crowning / Prepared for BendMaster / Machine Equipment Upgrades: Increase in installation height and stroke by 150 mm each / Backgauge system with 6 axes and control cabinet air conditioning / Hydraulic and hardened upper tool clamping / Hydraulic lower tool clamping / Further Options: Prepared for ACB® / 3D control system with color display / Network / 6-axis sensor system / BendMaster (Standard Equipment): Sturdy base body with welded, steel construction / Lightweight handling arm in cast aluminum construction / Low floor travel, running to the right (travel 2750 mm) / Sheet metal sensor integrated in the C-axis arm / Rotary feedthrough for cable harnesses in the D-axis / Prepared for automatic gripper change / Sensor system for 4 axes backgauge / Vacuum generation / Safety fence with safety device and 3 sliding doors / Control system: Operator terminal with additional external I-PC / BendMaster Extension: Extended floor travel (travel 2000 mm)

Machine Benefits

Technical Machine Benefits

Machines were serviced annually / maintenance contract in place

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
