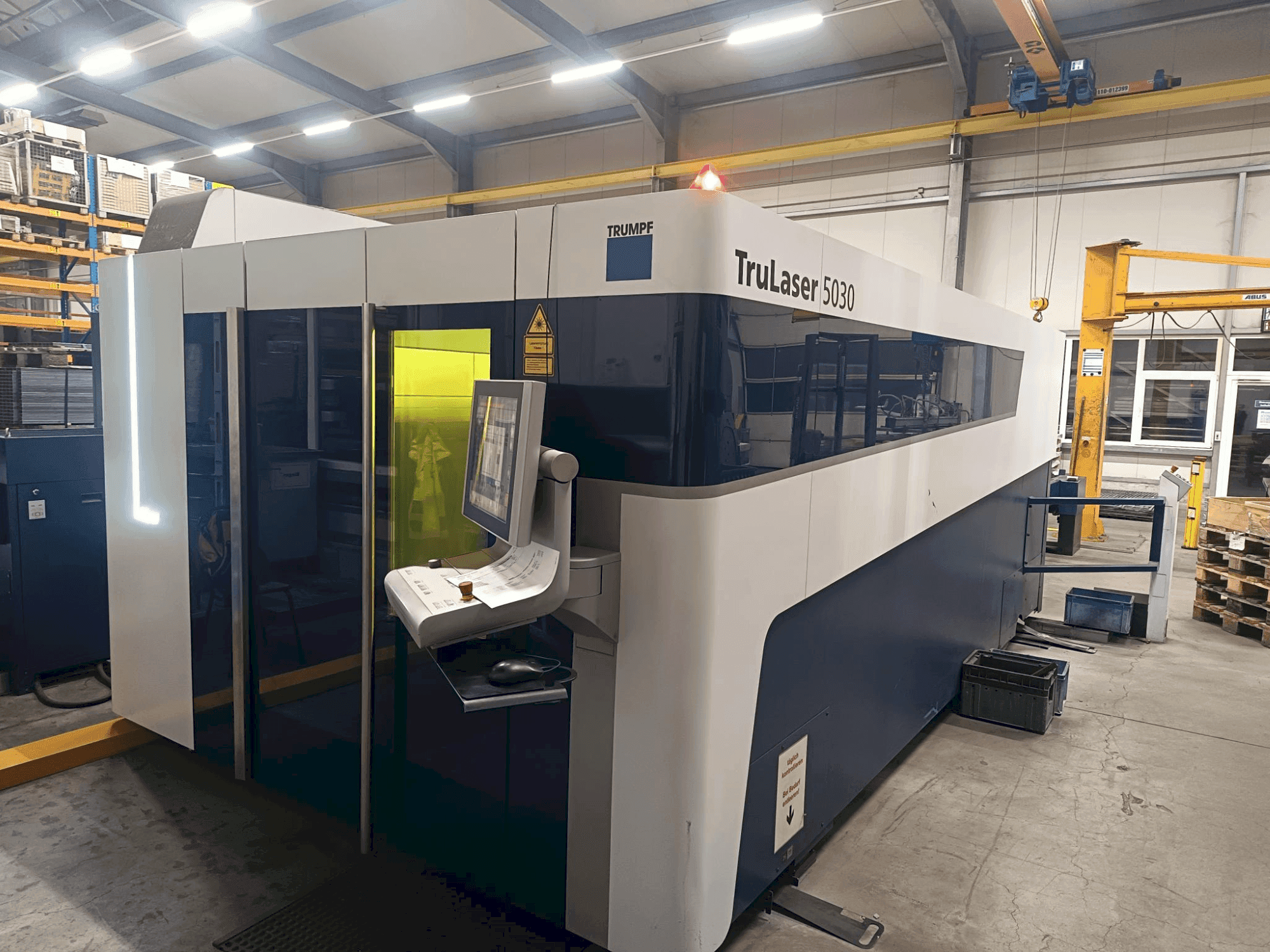

TRUMPF - Trulaser 5030 FiberDE-CUT-TRU-2013-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Trulaser 5030 (l56) documentation
  • - Machine software
  • - 1 additional postprocessor
  • - Trulaser 5000 series basics course
  • - Trutops laser programming course

Extra information

• - General Data Machine: Closed machine frame Torque drive combined with linear direct drive Closed beam guidance via fiber optic cable (LCC) Machine cooling unit (water-air) Integrated control cabinets with interior lighting Automatic pallet changer in the longitudinal direction 17* touch color screen Wide longitudinal conveyor belt TruDisk power supply via the machine Work area lighting Positioning Laser Guides: Spray direction PierceLine FocusLine NitroLine PlasmaLine Automatic nozzle cleaning Coupler cutting package (includes cutting data) Brass cutting package (includes cutting data) Transport and assembly device TRUMPF Laser: TruDisk 3001 solid-state laser with one LLK output Fiber optic cable according to standard layout Laser cooling unit (water-air) Excitation via Pump diodes Laser power control Subject to international export controls according to EC Dual-Use Regulation 428/2009 (lasers covered by 6A005) Cutting Head: Universal cutting unit with fully adaptive lens system Single-head cutting strategy Protective glass to protect against lens contamination ControlLine: Height control and outer sheet edge trimming Control: SINUMERIK 840D SL control system Simple and advanced workshop programming Fast re-production Integrated technology data Automatic shutdown Programmable cutting gas/pressure selection FastLine, FlyLine, AdjustLine Data Transfer: USB interface RJ-45 network connection Safety: CE marking Light barriers Multi-chamber extraction system Compact dust extraction system Machine enclosure, certified safety glass, door on the right Electric retractable roof Services: Exhibition, functional testing, 2-day instruction Network installation via teleservice Premium 12, one maintenance session configuration Voltage and Frequency: Voltage: 400 V Frequency: 50 Hz Color: Standard white - blue RAL design 250 20 20 - blue NCS S 0505 RBOB - white Solid-state Laser: TruDisk 5001 with 1 air cooler outlet Additional Features: Nozzle changer BrightLine fiber DeteciLine: Precise sheet position detection Clamping clamps (2 pieces) Integrated camera (Full HD) for process monitoring with monitor interface Individual oil feed into the network ClitMaster Gompact retrofit capability Technical developments reviewed on a case-by-case basis

Payment Terms

• Payment in advance

• Asset Financing
