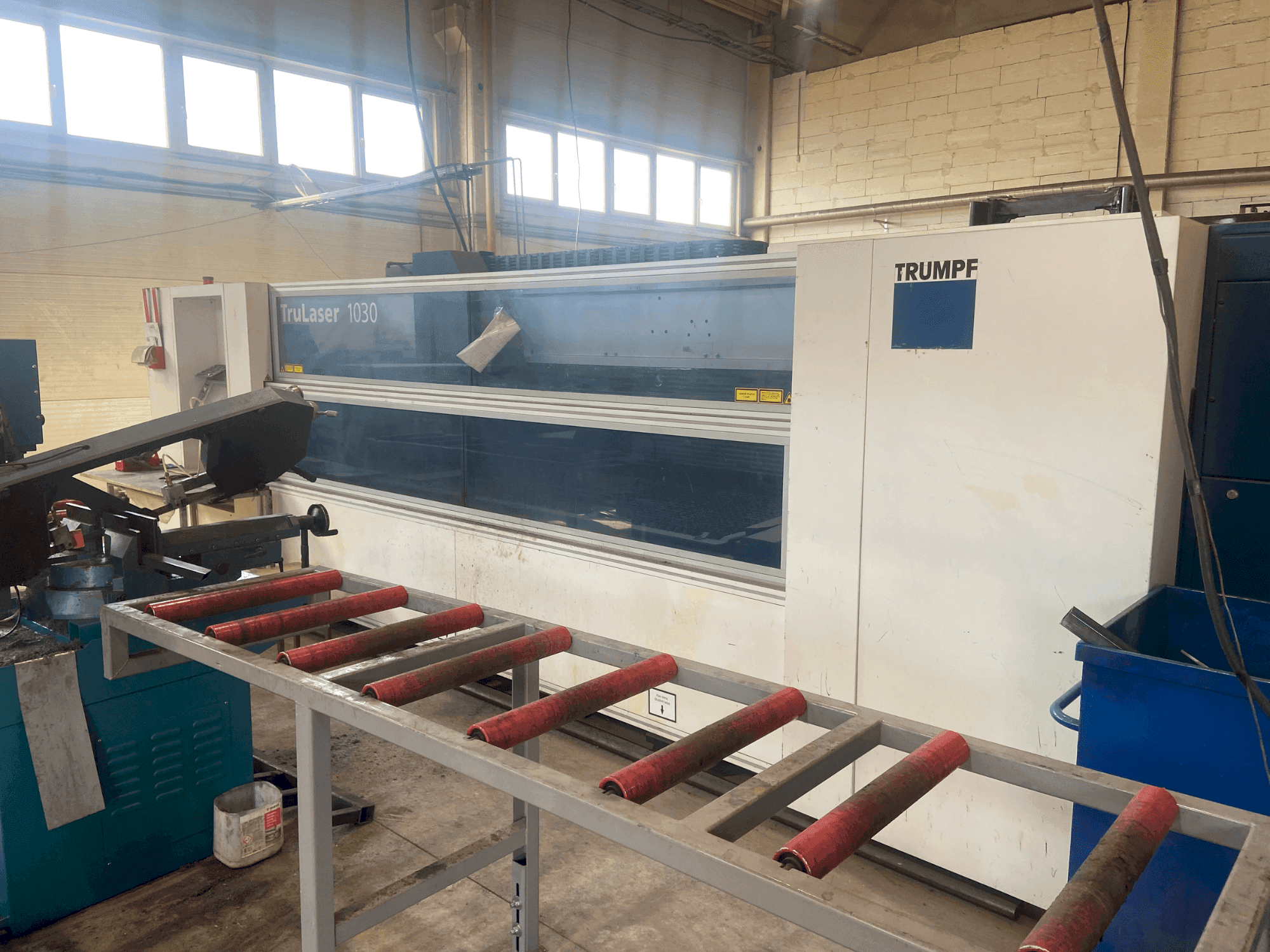

Front view of TRUMPF TruLaser 1030 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruLaser 1030

Photo Gallery

TRUMPF - TruLaser 1030LT-CUT-TRU-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF TruLaser 1030 For Sale | gindumac.com

Show in original language

This TRUMPF TruLaser 1030 was manufactured in 2011. A reliable CO2 laser cutting machine, it offers precision in cutting a variety of materials. Ideal for those looking to enhance their cutting capabilities. Contact us for more information.

Overview

brand: TRUMPF
year: 2011
MODEL: TruLaser 1030
production hours: 30000
application type: Cutting
Location: Lithuania
machine type: CO2 Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 1030

General Data

Measurements width: 2800 mm
Measurements depth: 7800 mm
Measurements height: 2900 mm
Machine weight: 10400 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D

Main drive

Number of axis: 2

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm
Workpiece z: 75 mm
Workpiece weight: 720 kg

Max Material thickness

Aluminum: 6.0 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Simultaneous positioning speed: 85 x+y m
Stainless steel: 8. 0 mm
Brass: 3. 0 mm
Copper: 3. 0 mm
Mild steel: 15. 0 mm
Electric consumption entire unit: 11 kw
Laser output: 2 kw
Beam on working: 24000 hours

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
