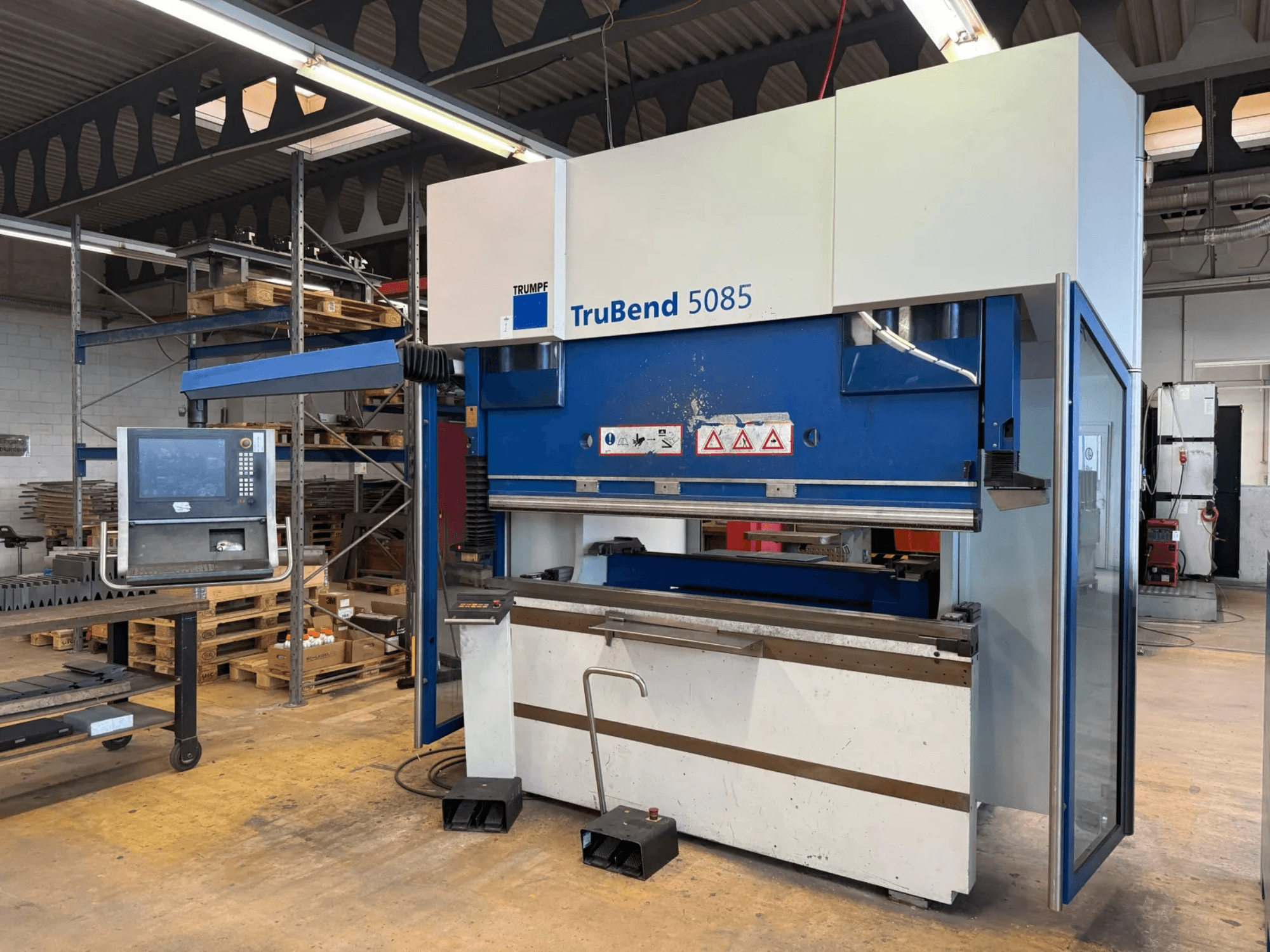

This 7-axis TRUMPF TruBend 5085 was manufactured in 2008. It features a press force of 850 kN and a bending length of 2,210 mm. The machine includes a 5-axis CNC backgauge with an X-axis travel of approximately 600 mm and an R-axis travel of around 250 mm. If you are looking to get high-quality bending capabilities, consider the TRUMPF TruBend 5085 CNC hydraulic press brake we have for sale. Contact us for further details.
Overview
- brand: TRUMPF
- year: 2008
- MODEL: TruBend 5085
- production hours: 1932
- application type: Bending
- Location: Poland
- machine type: Press Brake
- control unit brand: TRUMPF
Technical Information - TRUMPF TruBend 5085
Control Unit
- Control Brand: TRUMPF
- Control Model: TASC 6000
Dimensions
- Machine Height: 2840 mm
- Machine Length: 3020 mm
- Machine Weight: 7800 kg
- Machine Width: 1800 mm
Movement
- Number of Axes: 7
- X-axis Travel: 600 mm
Technical Specification
- Bending Length: 2210 mm
- Max. Stroke: 445 mm
- Pressing Force: 880 Kn
Additional Information
CE marking: Yes
Distance between columns: approx. 1,750 mm
Throat depth: approx. 420 mm
Open height: approx. 385 mm (optional extended version up to 615 mm)
Operating pressure: 300 bar
CNC control: TRUMPF CNC control / TASC 6000
Backgauge: 5-axis CNC backgauge
Axes: X, X5, R, Z1, Z2
X-axis travel: approx. 600 mm
R-axis travel: approx. 250 mm
Tooling/clamping: WILA hydraulic upper and lower tool clamping; Tooling system: WILA
Axis speeds:
Y-axis rapid: approx. 220 mm/s
Y-axis working: up to approx. 25 mm/s
Y-axis return: approx. 220 mm/s
X-axis: approx. 1,000–1,750 mm/s
R-axis: approx. 330 mm/s
Z-axis: approx. 1,750–2,500 mm/s
Ram/beam working hours: 1,932.8 h
Electrical:
Supply voltage: 3 × 400 V
Frequency: 50 Hz
Nominal current: 24.0 A
Connected load: 17.0 kVA
Control voltage: 24 V DC
Pneumatics: Compressed air connection 6 bar
Safety:
Stopping time: max. 95 ms
Stopping distance at 220 mm/s: max. 10 mm
Stopping distance at 160 mm/s: max. 8.5 mm
Minimum safety distance: 190 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
